Meiji Techno IM7500 Series Inverted BF/DF Metallurgical Microscopes

List Price: $12,980.00

Starting at: $10,961.00

SKU: IM7500

Availability: In stock

  • Inverted Brightfield/Darkfield metallurgical
  • Premium Infinity Corrected Optics
  • 4 Plan EPI objectives
  • 50W vertical, Koehler halogen illumination
  • Adjustable binocular or standard trinocular
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

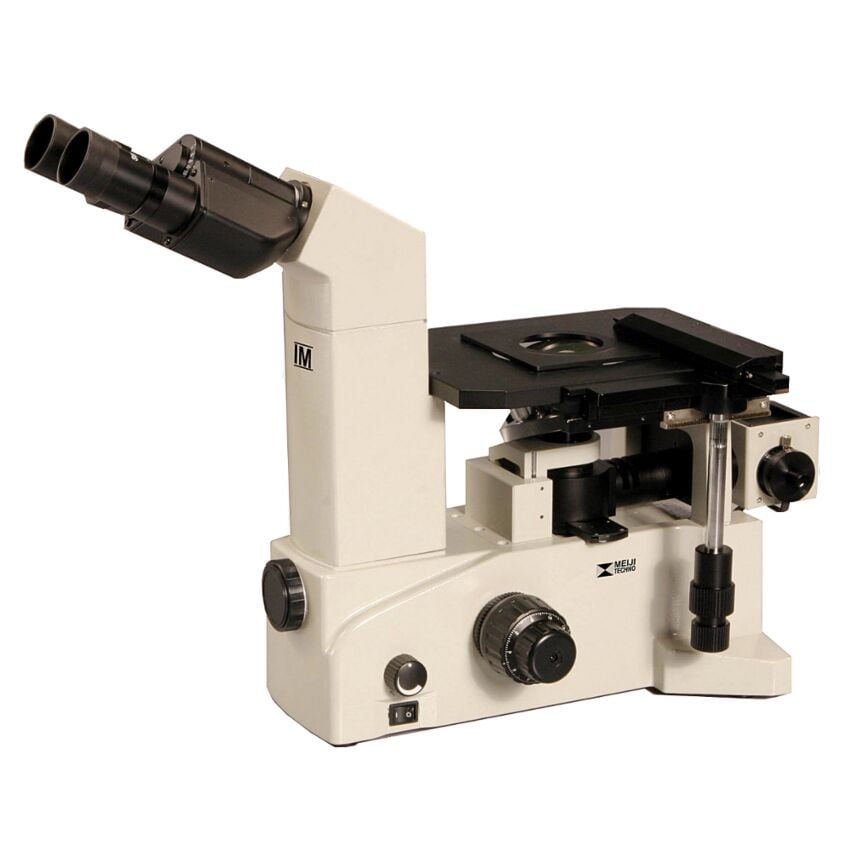

  • Meiji IM7500 Series Inverted BF/DF Metallurgical Microscope
  • Meiji IM7500 Series Inverted BF/DF Trinocular Metallurgical Microscope
  • Meiji IM7500 Series Inverted BF/DF Metallurgical Microscope eyepieces
Description

Summary

Including all the features of the IM7000 Series, the IM7500 adds darkfield mode for both brightfield and darkfield observation and study of large sample metallography, alloy heat treatment, and metal physics. They include Meiji's excellent infinity corrected optical system with four Plan Semi Apochromat objectives, Epi BD5x, Epi BD10x, Epi BD20x and Epi BD LWD50x and two SWH 10x eyepieces. 50W Koehler vertical halogen illumination is included. Lifetime Limited Warranty.

Optics

The Siedentopf head is available in ergonomic binocular that is adjustable through 10°-50° or trinocular format that is inclined 30°. Interpupilliary adjustment is 53mm to 75mm and there is a diopter on the left eyetube for individual eye focusing. Eyepieces include two SWH10x widefield high eyepoint eyepieces, FN 22. Optional eyepieces include SWH15x, SWH20x and SWH10x-F focusing. Four Plan Semi Apochromat objectives, Epi BD5x, Epi BD10x, Epi BD20x and Epi BD LWD50x are included. Optional 5x and 100x objectives are available.

The trinocular head has an 100/0 beamsplitter for photomicrography (100% to eyetubes or phototube). Please note that you will need an adapter appropriate for your camera.

Stage & Focus

The mechanical stage measures 224mm (X) x 184mm (Y) with 50mm x 40mm XY movement and drop down, right0hand, coaxial controls. Focus controls are low-positioned for comfort with coaxial, coarse/fine focus knobs with adjustable tension control.

Illumination

Vertical Illumination is Koehler 12V 50W with universal voltage and auto voltage sensor..

Accessories

Manual, dust cover
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • IM-7520 Binocular

    IM-7530 Trinocular C
    SKU IM7520IM7530
    Notes
    Product Weight 14.000014.0000
    Product Length 255 mm255 mm
    Product Width 195 mm195 mm
    Product Height 395 mm395 mm
    System
    System Type Brightfield, Darkfield, MetallurgicalBrightfield, Darkfield, Metallurgical
    Optical Design DIN 160mmDIN 160mm
    Head
    Head Type BinocularTrinocular
    Ocular Angle 30°30°
    Diopter Adjustment DualDual
    Interpupillary Adjustment Linear SlidingLinear Sliding
    Interpupillary Adjustment Range 52 – 72 mm52 – 72 mm
    View Orientation Inverted ViewInverted View
    Ocular Tube Diameter 23 mm23 mm
    Body
    Nosepiece Orientation Front-facingFront-facing
    Nosepiece Style Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Stage Type Fixed with Attached Mechanical Slide HolderFixed with Attached Mechanical Slide Holder
    Stage Features Mechanical Stage Attachment AvailableMechanical Stage Attachment Available
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 50X50X
    Max Standard Mag 500X500X
    Included Objectives (Qty) 44
    Objective Lens PlanPlan
    Included Objective Types Brightfield, Darkfield, MetallurgicalBrightfield, Darkfield, Metallurgical
    Condenser
    Condenser Type Abbe BrightfieldAbbe Brightfield
    Condenser Features Achromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderAchromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm
    Filter Diameter 30 mm30 mm
    Illumination
    Illumination Type HalogenHalogen
    Illumination Style TransmittedTransmitted
    Collector Type KohlerKohler
    Collector Features Field DiaphragmField Diaphragm
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 12V 50W12V 50W
    Transmitted Light Control VariableVariable
    Power Supply 120V AC120V AC
    Fuse 3A3A
    Accessories
    Included Extras Dust CoverDust Cover
