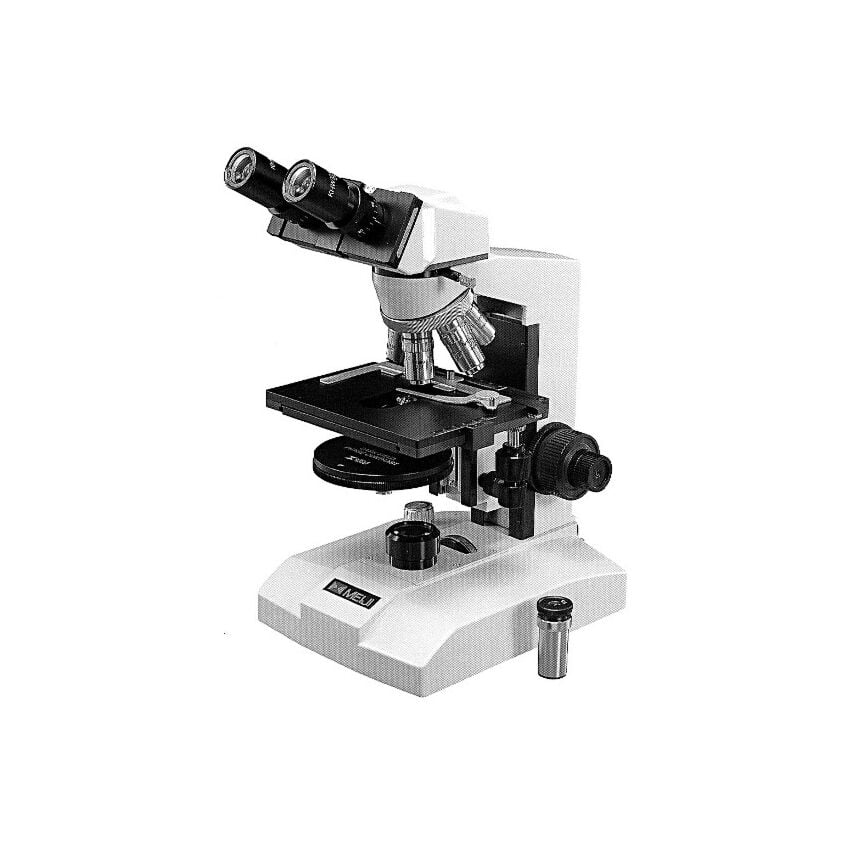

Meiji Techno ML5870/5970 Phase Contrast Microscope

List Price: $3,780.00

Starting at: $3,192.00

SKU: ML5870/5970

Availability: In stock

  • Infinity Corrected Optics
  • 4 Zernike Phase Contrast Objective Lenses
  • Binocular or Trinocular
  • 50W Halogen Koehler Illumination
  • Quintuple Reversed Turret Nosepiece
  • Zernike Phase 1.25NA Condenser
  • Lifetime Limited Warranty.
  • Recommended for Universities
Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji ML5870/5970 Phase Contrast Microscope
  • Meiji ML5870/5970 Phase Contrast Microscope
  • Meiji ML5870/5970 Phase Contrast Microscope eyepipeces
  • Meiji ML5870/5970 Phase Contrast Microscope condenser
Description

Summary

The Meiji ML5800 Series are advanced research-grade phase contrast microscopes ideally suited for the clinic, classroom or research laboratory. Available in either binocular or trinocular format, they include four phase contrast objective lenses set in a quintuple nosepiece. Available magnification powers include 100x, 200xS, 400xS and 1000xS oil along with 50W halogen illumination. Lifetime Limited Warranty.

Optics

The microscope includes a sliding-type binocular head with the oculars inclined at an ergonomic 30°. The left eyetube has diopter settings for easy individual eye focusing and the interpupillary distance is adjustable between 53mm - 72mm. 10x Widefield High Eyepoint eyepieces (F.N. 20) with a 21mm reticle mount are standard. Optional 15x and 20x eyepieces are also available. A centering telescope is also included. The DIN Infinity Corrected Optical System (ICOS) includes four Zernike Phase Contrast brightfield objectives (10x, s20x, s40x and s100x oil) set in a ball-bearing mounted, reverse-facing quintuple nosepiece.

The optional trinocular head employs an 80/20 beam splitter for photomicrography duties (100% to eyetubes or 80% to phototube & 20% to the eyetube). Please note that you will need to purchase an appropriate trinocular adapter for your camera.

Stage & Focus

The ceramic-coated, right-handed flat-top stage measures 171mm x 140mm with a 80mm(X) x 52mm(Y) range of movement and Coaxial, right-hand, drop down controls. Left-handed controls are available on request.

Condenser & Illumination

The Zernike type Abbe 1.25 NA phase condenser comes standard with a turret mount, centering telescope and green interference filter. Illumination is provided by a 50-watt halogen lamp house (not shown).

Accessories

Manual, Dust cover
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • ML5870 Phase Contrast Compound Microscope

    ML5970 Trinocular Phase Contrast Compound Microscope
    SKU ML5870ML5970
    Warranty Limited Lifetime WarrantyLimited Lifetime Warranty
    Product Weight 16.500017.0000
    Product Length 360 mm360 mm
    Product Width 195 mm195 mm
    Product Height 395 mm440 mm
    System
    System Type Brightfield, Phase ContrastBrightfield, Phase Contrast
    Optical Design DIN 160mmDIN 160mm
    Head
    Head Type BinocularTrinocular
    Ocular Angle 30°30°
    Diopter Adjustment DualDual
    Interpupillary Adjustment Linear SlidingLinear Sliding
    Interpupillary Adjustment Range 52 – 72 mm52 – 72 mm
    Trinocular Type  Switchable Beam-Split
    Trinocular Standard  23mm DIN
    View Orientation Inverted ViewInverted View
    Ocular Tube Diameter 23 mm23 mm
    Body
    Nosepiece Orientation ReversedReversed
    Nosepiece Style Quintuple (5)Quintuple (5)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Stage Type Mechanical XYMechanical XY
    Stage Features Fingertip Controls, Slide Holder (spring-loaded)Fingertip Controls, Slide Holder (spring-loaded)
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 40X40X
    Max Standard Mag 1000X1000X
    Included Objectives (Qty) 44
    Objective Lens Semi-PlanSemi-Plan
    Included Objective Types Phase ContrastPhase Contrast
    Condenser
    Condenser Type Zernike PhaseZernike Phase
    Condenser Features Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm
    Filter Diameter 30 mm30 mm
    Illumination
    Illumination Type HalogenHalogen
    Illumination Style TransmittedTransmitted
    Collector Type KohlerKohler
    Collector Features Field DiaphragmField Diaphragm
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 12V 50W12V 50W
    Transmitted Light Control VariableVariable
    Power Supply 120V AC120V AC
    Fuse 3A3A
    Compatibility
    Imaging Compatibility (with adapters)  23mm DIN, C-Mount
    Available Imaging Mounts  0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, Open C-Mount (no lens)
    Accessories
    Included Extras Dust CoverDust Cover
