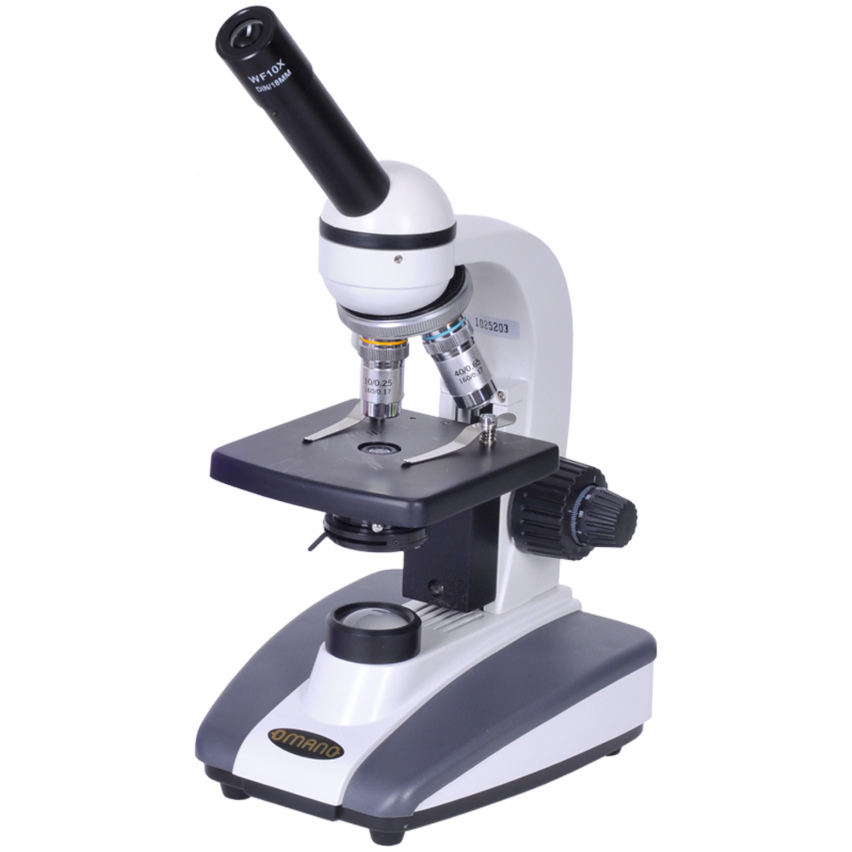

Omano OM136C Monocular Compound Microscope

The best way to create a digital microscope? Add a digital microscope camera and SAVE 10%.

Summary

The Omano OM136C monocular compound microscope is one of our best-selling school microscopes and more than merits our Best Rated award. With better design and construction than the OM118 series, it is a microscope that will last a lifetime and accordingly, carries an Omano lifetime limited warranty. Features include professional halogen or rechargeable LED illumination, three fully coated achromatic objective lenses (an an optional 100x objective at a 44% discount when purchased with the microscope), Abbe 1.25 N.A condenser with iris diaphragm and an optional mechanical slide holder which we recommend for more convenient slide handling. Recommended for Grades 5-12.

Optics

The Omano OM136C-L includes a monocular microscope head that is inclined at an ergonomic 45 degrees. The head rotates through 360 degrees for flexible viewing. A single wide field WF 10x eyepiece combines with three parcentered, coated, 160mm achromatic objective lenses (4x, 10x, 40x Spring), to provide magnification levels of 40x, 100x and 400x. The objectives are set in a quadruple nosepiece so that an optional 100x oil immersion objective can be added for maximum magnification of 1,000x.

Stage & Focus

The OM136CL includes a generous sized, plain stage (125mm x 110mm) with two metal slide clips. An optional full mechanical stage is available at a 44% discount when purchased at the same time as the microscope. We recommend this stage as it makes slide handling significantly easier for both younger children and teenagers alike.

Focusing includes high quality rack and pinion mechanics for longer life and coaxial focus controls for easier focusing. We recommend coaxial coarse/fine focus controls since they enable 'eyes down' focusing. In other words, the viewer does not constantly need to look up in order to find the other focus control. This benefit is important in enhancing a student's experience and therefore in encouraging a more sustained interest in the microscope.

Safety features include a rack stop to ensure that the stage does not impact with the objectives and thereby break the slides and a slip clutch control to mitigate the risk of damaging the focus controls through over extension.

Condenser & Illumination

The condenser is a professional Abbe 1.25 N.A with included iris diaphragm and filter holder for optimal adjustments. Illumination is 6V 20W transmitted halogen or rechargeable LED, both with variable light intensity. The LED version requires one 30 minute charge to last all day long and is a popular microscope for use in the field.

Accessories

Dust Cover, Manual, Eyecups. Save over 40% when you purchase the optional 100x objective with the microscope.

Specifications of Component Options

Select a component below to view related specifications.

• Illumination
• Mechanical Stage
• Microscope Camera
• Optional Objective
• Reticle

• 	OM136-H Halogen	OM136-L LED
  SKU	OM136-C	OM136-L
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  System
  System Type	Brightfield	Brightfield, Portable
  Optical Design	DIN 160mm	DIN 160mm
  Head
  Head Type	Monocular	Monocular
  Ocular Angle	45°	45°
  Ocular Tube Diameter	23 mm	23 mm
  Body
  Nosepiece Orientation	Reversed	Reversed
  Nosepiece Style	Quadruple (4)	Quadruple (4)
  Focus Controls	Coarse & Fine, Coaxial	Coarse & Fine, Coaxial
  Focus Mechanism	Rack & Pinion	Rack & Pinion
  Focus Control Location	Dual Ambidextrous	Dual Ambidextrous
  Stage Type	Fixed	Fixed
  Stage Features	Mechanical Stage Attachment Available, Slide Clips	Mechanical Stage Attachment Available, Slide Clips
  Configuration
  Includes Eyepieces?	Yes	Yes
  Included Eyepiece Quantity	1	1
  Included Eyepieces (X)	10X	10X
  Eyepiece Style	WF Widefield (FN 18mm)	WF Widefield (FN 18mm)
  Min Standard Mag	40X	40X
  Max Standard Mag	400X	400X
  Included Objectives (Qty)	3	3
  Objective Lens	Achromatic	Achromatic
  Included Objective Types	Brightfield	Brightfield
  Condenser
  Condenser Type	Simple Lens	Simple Lens
  Condenser Features	Iris Diaphragm, Swing-out Filter Holder	Iris Diaphragm, Swing-out Filter Holder
  Condenser N.A.	1.25 mm	1.25 mm
  Illumination
  Illumination Type	Halogen	LED
  Illumination Style	Transmitted	Transmitted
  Collector Type	Simple	Simple
  Transmitted Light Type	Halogen	LED
  Transmitted Light Specification	6V 20W
  Transmitted Light Control	Variable	Variable
  Power Supply	120V AC	Rechargeable Internal Batteries (AA), 120V AC Plug-in Charging Adapter Included
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN	23mm DIN
  Accessories
  Included Extras	Dust Cover, Spare Bulb, Spare Fuse	Dust Cover

• 	Mechanical Slide Holder
  SKU	OMXY-136
  Notes	Fits OM136C Series, OMTM85 Series. NOTE: Attachment may obstruct free rotation of objective lens turret. Function is not impaired, but please take care that you do not damage the lenses.
  Compatibility
  Compatible With	OM136C*, OMTM85*

• 	Summit OCS-1.3X 1.3MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-3.1X 3.1MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-5.0X 5MP PC/Mac Compatible Digital Microscope Camera
  SKU	OCS-1.3X	OCS-3.1X	OCS-5.0X
  Warranty	1 Year	1 Year	1 Year
  Product Weight	2.0000	2.0000	2.0000
  Sensor
  Sensor Type	CMOS	CMOS	CMOS
  Sensor Size	1/3 Inch	1/2 Inch	1/2.5 Inch
  Sensor Details	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9P001 CMOS
  Color/Monochrome	Color	Color	Color
  Pixel Pitch	3.6 µm	2.8 µm	2.2 µm
  Sensor Color Depth	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB
  Scan Mode	Progressive	Progressive	Progressive
  Signal to Noise Ratio	44 dB	43 dB	40.5 dB
  Sensitivity	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	0.53V/Lux-sec (550nm)
  Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter
  Camera
  Camera Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount
  Resolution	1.3 Megapixel, 1280x1024 pixels	3 Megapixel, 2048x1536 pixels	5 Megapixel, 2592x1944 pixels
  FPS @ Max Res	15fps	11fps	8fps
  FPS @ Min Res	30fps	30fps	30fps
  Camera Interface	USB 2.0	USB 2.0	USB 2.0
  White Balance	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Software Included	OptixCam OCView	OptixCam OCView	OptixCam OCView
  Driver API Compatibility	DirectX	DirectX	DirectX
  Camera Power Source	USB Powered	USB Powered	USB Powered
  File Formats	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF
  Exposure Control	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Exposure Time	1ms-0.3s	1ms-0.3s	1ms-0.3s
  Other Details
  Included Accessories	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer
  Supported Operating Systems	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+
  System Requirements	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
  Certifications	CE	CE	CE
  Cable Length	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)
  Software Support	6 Months	6 Months	6 Months
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount

• 	Achromatic Objective, 100xs Oil Immersion
  SKU	OMOBJ-ACH-100X
  Warranty	Omano Limited Lifetime Warranty
  Objectives
  Objective Lens	Achromatic
  Objective Lens Power	100x

• 	Reticle, 20mm Linear	Reticle, 20mm Cross Line
  SKU	OMR-20L	OMR-20CL
  Notes	For OM136C, OM36, OM88, OMM200, OMTM85, OMSH-1	For OM136C, OM36, OM88, OMM200, OMTM85, OMSH-1
