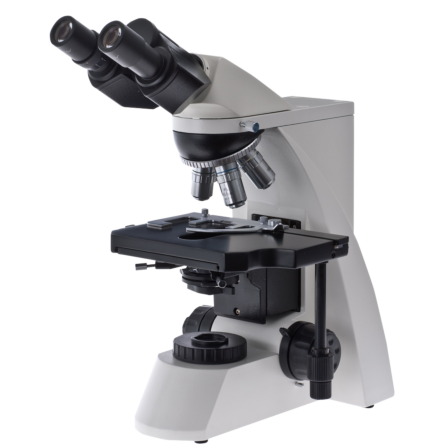

Omano OM159 Infinity Corrected Compound Microscope

Summary

The Omano OM159 is available in either binocular or trinocular format and is simply our best Omano compound microscope. Designed for university and laboratory applications, it features infinity corrected optics with five full planachromatic objectives in a rear-facing quintuple nosepiece. Premium Kohler halogen illumination, "windowpane style" super-widefield 10X eyepieces and fingertip controls round out a full range of professional features.

Optics

A Seindentopf microscope head includes infinity corrected optics with SWF 10x eyepieces for 'window pane' viewing. The head can rotate through 360 degrees for flexible viewing positions. Interpupillary adjustment is 55-75mm with a single left ocular diopter for individual eye focusing. The optical unit is powered by five infinity corrected planachromatic objective lenses (4x, 10x, 20x, 40x spring, 100x spring oil immersion) set in a rear-facing quintuple click-stop nosepiece. Both the 40x and 100x objectives are spring-loaded to mitigate the risk of damage to the slide or objective. Magnification levels include 40x, 100x, 200x, 400x and 1,000x.

Stage & Focus

A large double-layered mechanical stage measures 210mm x 140mm and includes spring-loaded slide clamp with dropdown coaxial controls for convenient 'eyes down' operation. The stage range of movement is 75mm x 50mm. Focusing includes high quality rack and pinion mechanics for longer life and coaxial coarse/fine focus controls for easier focusing.

The fine focus scale value is 0.002mm. The right hand focus control features finger tip controls while a convenient feature is the dimmer switch located immediately under the left hand focus control. As a result, both controls can be operated 'eyes down'. Safety features include a rack stop to ensure that the stage does not impact with the objectives and thereby break the slides, and a slip clutch control to mitigate the risk of damaging the focus controls through over extension.

The condenser is a professional Abbe 1.25 N. A with iris diaphragm and filter for optimal adjustments. Higher quality Kohler illumination is powered by 6V 20W halogen with variable intensity.

Accessories

Dust Cover, Manual, Blue and frosted filters, immersion oil, spare fuse, spare bulb

Specifications of Component Options

Select a component below to view related specifications.

• Microscope
• Microscope Camera

• 	OM159-T Trinocular Compound Microscope
  SKU	OM159-T
  Warranty	Omano Limited Lifetime Warranty
  System
  System Type	Brightfield
  Optical Design	Infinity Corrected
  Head
  Head Type	Trinocular
  Ocular Angle	30°
  Diopter Adjustment	Single
  Interpupillary Adjustment	Arc (Seidentopf)
  Interpupillary Adjustment Range	55-75 mm
  Ocular Tube Diameter	30 mm
  Body
  Nosepiece Orientation	Reversed
  Nosepiece Style	Quintuple (5)
  Focus Controls	Coarse & Fine, Coaxial
  Focus Mechanism	Rack & Pinion
  Focus Control Location	Dual Ambidextrous
  Stage Type	Mechanical XY
  Stage Features	Fingertip Controls, Slide Holder (spring-loaded)
  Configuration
  Includes Eyepieces?	Yes
  Included Eyepiece Quantity	2
  Included Eyepieces (X)	10X
  Eyepiece Style	SWF Super Widefield (FN 20mm)
  Min Standard Mag	40X
  Max Standard Mag	1000X
  Included Objectives (Qty)	5
  Objective Lens	Plan
  Included Objective Types	Brightfield
  Condenser
  Condenser Type	Abbe Brightfield
  Condenser Features	Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder, Swing-out Secondary Lens
  Condenser N.A.	1.25 mm
  Illumination
  Illumination Type	Halogen
  Illumination Style	Transmitted
  Collector Type	Kohler
  Collector Features	Field Diaphragm
  Transmitted Light Type	Halogen
  Transmitted Light Specification	6V 20W
  Transmitted Light Control	Variable
  Power Supply	120V AC
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN, C-Mount
  Accessories
  Included Extras	Dust Cover, Spare Bulb, Spare Fuse

• 	Summit OCS-1.3X 1.3MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-3.1X 3.1MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-5.0X 5MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-10.0X 10MP PC/Mac Compatible Digital Microscope Camera
  SKU	OCS-1.3X	OCS-3.1X	OCS-5.0X	OCS-10.0X
  Warranty	1 Year	1 Year	1 Year	1 Year
  Product Weight	2.0000	2.0000	2.0000	1.0000
  Sensor
  Sensor Type	CMOS	CMOS	CMOS	CMOS
  Sensor Size	1/3 Inch	1/2 Inch	1/2.5 Inch	1/2.5 Inch
  Sensor Details	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9N001 CMOS
  Color/Monochrome	Color	Color	Color	Color
  Pixel Pitch	3.6 µm	2.8 µm	2.2 µm	1.75 µm
  Sensor Color Depth	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB
  Scan Mode	Progressive	Progressive	Progressive	Progressive
  Signal to Noise Ratio	44 dB	43 dB	40.5 dB	40.5 dB
  Sensitivity	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	0.53V/Lux-sec (550nm)	0.44V/Lux-sec (550nm)
  Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter
  Camera
  Camera Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount
  Resolution	1.3 Megapixel, 1280x1024 pixels	3 Megapixel, 2048x1536 pixels	5 Megapixel, 2592x1944 pixels	10 Megapixel
  Camera Output Resolutions		10.0MP
  FPS @ Max Res	15fps	11fps	8fps	2fps
  FPS @ Min Res	30fps	30fps	30fps	30fps
  Camera Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
  White Balance	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Software Included	OptixCam OCView	OptixCam OCView	OptixCam OCView	OptixCam OCView
  Driver API Compatibility	DirectX	DirectX	DirectX	DirectX
  Camera Power Source	USB Powered	USB Powered	USB Powered	USB Powered
  File Formats	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF
  Exposure Control	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Exposure Time	1ms-0.3s	1ms-0.3s	1ms-0.3s	1ms-0.3s
  Other Details
  Included Accessories	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer
  Supported Operating Systems	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+
  System Requirements	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
  Certifications	CE	CE	CE	CE
  Cable Length	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)
  Software Support	6 Months	6 Months	6 Months	6 Months
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount
