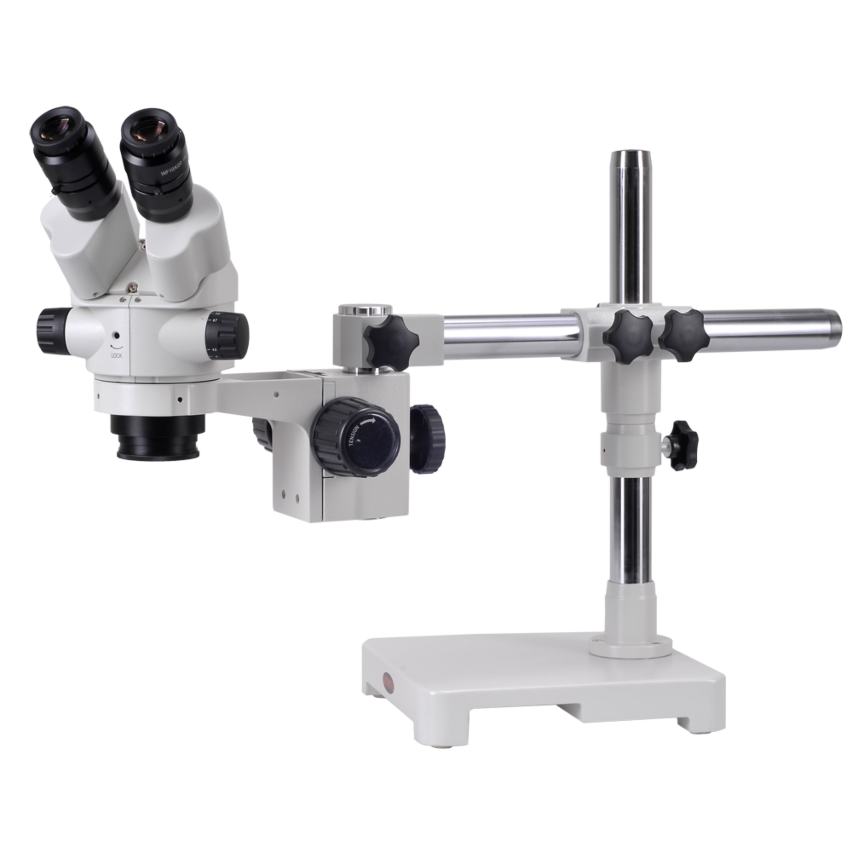

Omano OM2300S-GX4 Zoom Stereo Boom Microscope

Summary

The OM2300S-GX4 offers our best value boom stereo microscope package. It includes the upgraded and popular OM2300S 7x-45x zoom stereo microscope head, the GX4 stand plus an 8W fluorescent ring light and 0.5x auxiliary barlow lens for greater working distance. In other words, crisp, clear optics, a solid universal stand and useful accessories. Lifetime Limited Warranty.

Optics

The OM2300S zoom stereo microscope head has become our de facto, 'Go To' head for our industrial inspection customers. Upgraded in 2010, but with no increase in price, the 2300S provides a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary barlow lens. Three alternative barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. Available in binocular or trinocular format. Trinocular includes a 23.2mm photo tube.

Focus & Illumination

Rack and pinion focus includes dual right and left hand controls for convenience. A 10W fluorescent ring light for shadow-free illumination is included in the price and can be upgraded to 10W, 12W or other light when adding the microscope to your shopping cart.

Stand

The GX4 is sold exclusively as a package with this microscope system. It is a single arm stand that weighs 43lbs with a 21" reach including the focus block. The base plate measures 9" x 9" and the pole is 15" tall. For safety, a locking collar is included to provide double support to the boom arm.

Accessories

8W fluorescent ring light, 0.5x barlow lens, eyeguards, dust cover, manual

Specifications of Component Options

Select a component below to view related specifications.

• Microscope Head
• Base
• Illumination
• Upgrade Illumination
• Reticle
• Extra Eyepieces
• C-Mount Adapter
• Optional Barlow Lens
• Optional Camera System

• 	OM2300SB-GX4 Binocular Stereo Head	OM2300ST-GX4 Trinocular Stereo Head
  SKU	OM-2300S-GX4	OM-2300S-T-GX4
  Backorder ETA	Oct 29, 2012
  Best Seller	Yes
  Head
  Head Type	Binocular	Trinocular
  Optical Design	Greenough Converged	Greenough Converged
  Magnification Type	Zoom	Zoom
  Ocular Angle	45°	45°
  Ocular Tube Diameter	30.5 mm	30.5 mm
  Barlow Mount Diameter	47 mm	47 mm
  Diopter Adjustment	Dual	Dual
  Interpupillary Adjustment	Arc (Seidentopf)	Arc (Seidentopf)
  Interpupillary Adjustment Range	55-75 mm	55-75 mm
  Trinocular Type		Beam Split Continuous
  Trinocular Standard		23mm DIN
  Head Rotation	360 Degrees	360 Degrees
  Minimum Objective (X)	0.7	0.7
  Maximum Objective (X)	4.5	4.5
  Zoom Ratio	6.4:1	6.4:1
  Zoom Control Type	Smooth Continuous	Smooth Continuous
  Zoom Indicator Graduations	Yes	Yes
  Parfocal	Yes	Yes
  Configuration
  Includes Eyepieces?	Yes	Yes
  Included Eyepieces (X)	10X	10X
  Min Standard Mag	7X	7X
  Max Standard Mag	45X	45X
  Eyecups Style	Soft Rubber	Soft Rubber
  Body
  Body Material	Composite	Composite
  Compatibility
  Imaging Compatibility (with adapters)		23mm DIN
  Head Ring Mount Diameter	76 mm	76 mm
  Working Distance (standard)	100 mm	100 mm
  WD with 0.5x Barlow	100 mm	100 mm
  WD with 2.0x Barlow	30	30

• 	GX4 Boom Stand
  SKU	GX4
  Warranty	Omano Limited Lifetime Warranty
  Backorder ETA	Oct 30, 2012
  Stand
  Stand Class	Boom
  Stand Type	Single Arm Boom
  Stand Features	Solid
  Base Width	230 mm
  Base Depth	230 mm
  Post Height	380 mm
  Post Diameter	32 mm
  View Center to Post Distance	514 mm
  Physical Construction	Metal Tube
  Coating Type (Stand)	Durable Powdercoat
  Hanging Bar Style	Fixed
  If FB Mounts Direct
  Focus Block Mount Diameter	32 mm

• 	8 Watt Fluorescent Ring Light, GX4 Type
  SKU	OMFR-8W-GX4
  Compatibility
  Compatible With	OM2300S, OM2300ST

• 	10 Watt Fluorescent Ring Light	12 Watt Fluorescent Ring Light	80 LED Ring Light, Adjustable Intensity	64 LED Ring Light Illuminator	144 LED Ring Light Illuminator	8W LED Dual Gooseneck Spot Light	6W LED Dual Gooseneck Spot Light, for Pole Mount
  SKU	OMFR-10W	OMFR-12W	OMLED-80A	OMLED-64A	OMLED-144A	OMLED-DP8W	OMLED-DP6W
  Warranty		1 year			1 year	1 year
  Product Weight		1lb			3.1 lbs	4.0 lbs
  Product Length		16 cm	31.0 cm
  Product Width		10 cm	29.0 cm
  Product Height		8 cm	17.5 cm
  Power Supply		90V-265V
  Illumination Type	Fluorescent	Fluorescent	LED	LED	LED	LED	LED
  Backorder ETA		Oct 31, 2012
  Product Display
  New		Yes
  Light Specs
  Ring Light Type		LED				LED
  Ring Light Specification		80 LED				3W x 2
  Ring Light Power		8W				6W
  Ring Light Control		Variable				Variable

• 	Reticle, 25mm Linear	Reticle, 25mm Grid	Reticle, 25mm Cross Linear
  SKU	OMR-25L	OMR-25G	OMR-25CL
  Notes	For OM99, OMXTL, OM2300S	For OM99, OMXTL, OM2300S	For OM99, OMXTL, OM2300S

• 	10X Eyepieces For Omano OM2300S (Pair)	15X Eyepieces For Omano OM2300S (Pair)	20X Eyepieces For Omano OM2300S (Pair)
  SKU	OMEP-2300S-10X	OMEP-2300S-15X	OMEP-2300S-20X
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  Notes	Priced per Pair	Priced per Pair	Priced per Pair
  Product Weight		4.0000
  Compatibility
  Compatible With	OM2300S, OM2300ST	OM2300S, OM2300ST	OM2300S, OM2300ST
  Eyepiece Magnification	10x	15x	20x

• 	C-Mount Adapter 0.3X for Omano OM2300ST	C-Mount Adapter 0.5X for Omano OM2300ST
  SKU	OMCM-2300ST-03X	OMCM-2300ST-05X
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  Notes	Does not fit Binocular	Does not fit Binocular
  Compatible With	OM99T	OM99T

• 	0.75X Barlow Lens for Omano OM2300S	1.5X Barlow Lens for Omano OM2300S	2.0X Barlow Lens for Omano OM2300S
  SKU	OMBL-2300S-075X	OMBL-2300S-15X	OMBL-2300S-20X
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  Notes	Does not fit OM2300, OM2300-T, OM3300	Does not fit OM2300, OM2300-T, OM3300	Does not fit OM2300, OM2300-T, OM3300
  Compatible With	OM2300S	OM2300S	OM2300S
  Optical Accessory
  Barlow Lens Power	0.75X	1.5X	2.0X

• 	Summit OCS-1.3X 1.3MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-3.1X 3.1MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-5.0X 5MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-10.0X 10MP PC/Mac Compatible Digital Microscope Camera	OptixCam Matrix SXGA Digital Microscope Camera
  SKU	OCS-1.3X	OCS-3.1X	OCS-5.0X	OCS-10.0X	OCS-SXGA
  Warranty	1 Year	1 Year	1 Year	1 Year	1 Year
  Product Weight	2.0000	2.0000	2.0000	1.0000	2.0000
  Sensor
  Sensor Type	CMOS	CMOS	CMOS	CMOS	CMOS
  Sensor Size	1/3 Inch	1/2 Inch	1/2.5 Inch	1/2.5 Inch	1/3 Inch
  Sensor Details	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9N001 CMOS	2.0MP Color Sensor
  Color/Monochrome	Color	Color	Color	Color	Color
  Pixel Pitch	3.6 µm	2.8 µm	2.2 µm	1.75 µm	2.8 µm
  Sensor Color Depth	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB
  Scan Mode	Progressive	Progressive	Progressive	Progressive
  Signal to Noise Ratio	44 dB	43 dB	40.5 dB	40.5 dB
  Sensitivity	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	0.53V/Lux-sec (550nm)	0.44V/Lux-sec (550nm)
  Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter
  Camera
  Camera Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount
  Resolution	1.3 Megapixel, 1280x1024 pixels	3 Megapixel, 2048x1536 pixels	5 Megapixel, 2592x1944 pixels	10 Megapixel	2 Megapixel, 1600x1200 pixels
  Camera Output Resolutions		10.0MP
  FPS @ Max Res	15fps	11fps	8fps	2fps
  FPS @ Min Res	30fps	30fps	30fps	30fps
  Camera Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0	RCA Composite Video, VGA 15-Pin DSUB
  White Balance	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Software Included	OptixCam OCView	OptixCam OCView	OptixCam OCView	OptixCam OCView
  Driver API Compatibility	DirectX	DirectX	DirectX	DirectX
  Camera Power Source	USB Powered	USB Powered	USB Powered	USB Powered	External Power Supply
  File Formats	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF
  Exposure Control	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Exposure Time	1ms-0.3s	1ms-0.3s	1ms-0.3s	1ms-0.3s
  Other Details
  Included Accessories	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, power supply, 30mm collar, 30.5mm collar.
  Supported Operating Systems	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+
  System Requirements	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
  Certifications	CE	CE	CE	CE	CE
  Cable Length	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)
  Software Support	6 Months	6 Months	6 Months	6 Months
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount
