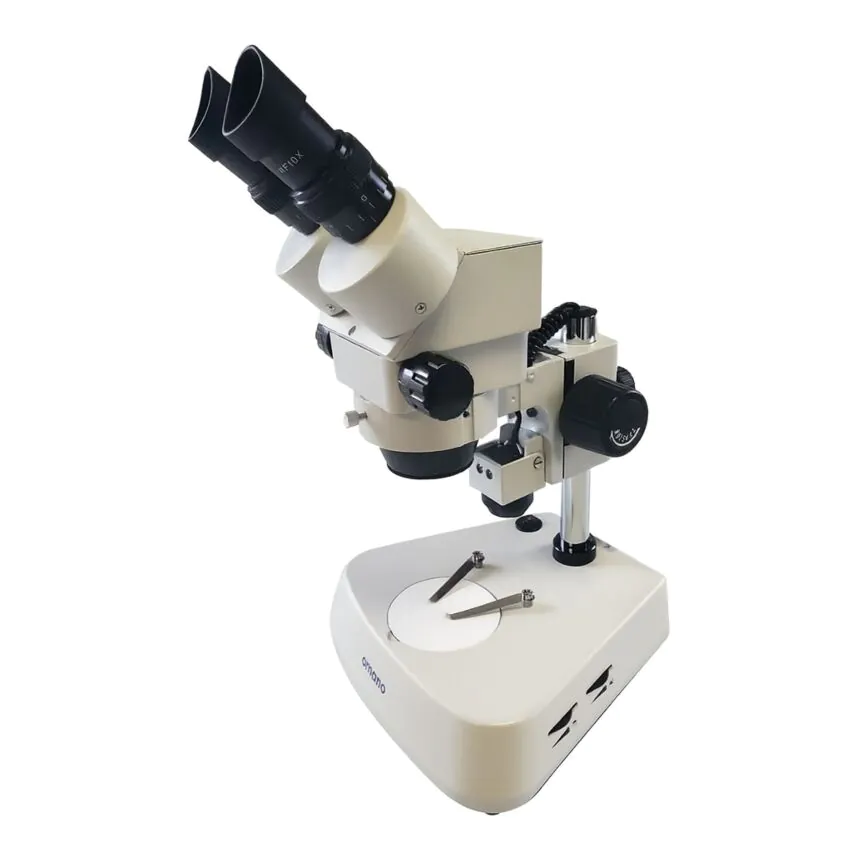

Omano OM2344 Zoom Stereo Microscope

Summary

The Omano OM2344 is another strong-performing zoom stereo microscope for industrial inspection. It offers 7x-45x zoom stereo magnification and is designed to withstand the rigors of an industrial setting at an affordable price. It includes variable halogen upper and base lighting to make it one of our most popular stereo microscopes.

Optics

With two wide field WF 10x eyepieces and achromatic coated objective lenses, the OM2344 offers 7x-45x zoom magnification. It has proven endearingly popular over the past ten years owing to a combination of good quality optics, rugged construction and affordable price. It is well-known for its distinctive, double wide base. The head is inclined at a 45 degree angle, rotates through 360 degrees for flexible viewing positions and comes in binocular or trinocular versions. A diopter on the left ocular enables individual eye adjustments while the interpupillary distance adjusts through 50-70mm.

Focus & Illumination

Similar to all our stereo microscopes, the OM2344 includes dual-sided focusing controls so that either hand can be used to focus. Illumination is powered by 110 volt, 12V 10W halogen in both transmitted (bottom) and incident (top) illumination. There are three light settings (top, bottom and top/bottom together), all of which have adjustable intensity. Two spare bulbs are included, one for the top and one for the bottom light.

Stand

The OM2344 has a pole stand which offer greater flexibility than fixed arm stands since they can be used to view specimens off the stage (larger objects for example) while they can also be used in conjunction with an auxiliary Barlow lens.

We now have an optional hard-sided aluminum microscope case to ensure your microscope investment is always well-protected from the dust, nicks, scratches and dents from everyday use. Simply select the aluminum case from the options above prior to checkout.

Accessories

Rubber eyecups, 2 spare bulbs, reversible black/white stage plate, frosted glass stage plate, vinyl dust cover, manual

Specifications of Component Options

Select a component below to view related specifications.

• Microscope
• Extra Eyepieces
• Camera
• Aluminum Carrying Case
• Optional Camera
• Optional Lighting

• 	OM2344-B Zoom Stereo Microscope	OM2344-T Zoom Stereo Trinocular Microscope
  SKU	OM2344-B	OM2344-T
  Head
  Head Type	Binocular	Trinocular
  Optical Design	Greenough Converged	Greenough Converged
  Ocular Angle	45°	45°
  Ocular Tube Diameter	23 mm	30 mm
  Barlow Mount Diameter	47 mm	47 mm
  Diopter Adjustment	Dual	Dual
  Magnification Type	Zoom	Zoom
  Interpupillary Adjustment	Arc (Seidentopf)	Arc (Seidentopf)
  Interpupillary Adjustment Range	50mm - 70mm	50mm - 70mm
  Trinocular Type		Prism Switching
  Trinocular Standard		C-mount
  Head Rotation	360 Degrees	360 Degrees
  Minimum Objective (X)	.7X	.7X
  Maximum Objective (X)	4.5X	4.5X
  Zoom Ratio	6.5:1	6.5:1
  Zoom Control Type	Smooth Continuous	Smooth Continuous
  Zoom Indicator Graduations	Yes	Yes
  Parfocal	Yes	Yes
  Configuration
  Includes Eyepieces?	Yes	Yes
  Included Eyepieces (X)	10X	10X
  Eyepiece Style		SWF Super Widefield (FN 20mm)
  Available Barlow Lenses	0.3X, 0.5X, 0.75X, 1.0X, 2.0X
  Includes Eyecups?		Yes
  Eyecups Style	Soft Rubber	Soft Rubber
  Body
  Body Material	Mixed Metal/Plastic	Mixed Metal/Plastic
  Coating Type	Anti-Reagent Paint	Anti-Reagent Paint
  FocusBlock
  Focus Controls	Coarse	Coarse
  Focus Mechanism	Rack & Pinion	Rack & Pinion
  Stand
  Stand Class	Pedestal	Pedestal
  Stand Type	Pole	Pole
  Stage Plate	Black/White Contrast Plate, Clear Glass	Black/White Contrast Plate, Clear Glass
  Coating Type (Stand)	Anti-Reagent Paint	Anti-Reagent Paint
  Illumination
  Illumination Type	Halogen	Halogen
  Illumination Style	Transmitted, Incident	Transmitted, Incident
  Power Supply	120V AC	120V AC
  Incident Light Type	Halogen	Halogen
  Incident Light Specification	12V10W	12V 10W
  Incident Light Control	Variable	Variable
  Transmitted Light Type	Halogen	Halogen
  Transmitted Light Specification	12V10W	12V10W
  Transmitted Light Control	Variable	Variable
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN	23mm DIN
  Reticles
  Reticles Available?	Yes
  Accessories
  Included Extras	Dust Cover, Spare Bulb, Spare Fuse	Dust Cover, Spare Bulb, Spare Fuse

• 	5X Eyepiece For Omano OM2300 Series B	15X Eyepiece For Omano OM2300 Series B	20X Eyepiece For Omano OM2300 Series B
  SKU	OMEP-2300B-5X	OMEP-2300B-15X	OMEP-2300B-20X
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  Notes		Priced per Pair	Priced per Pair
  Compatibility
  Compatible With	OM2300, OM2300T, OM3300	OM2300, OM2300T, OM3300	OM2300, OM2300T, OM3300
  Eyepiece Magnification	5x	15x	20x

• 	Summit OCS-1.3X 1.3MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-3.1X 3.1MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-5.0X 5MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-10.0X 10MP PC/Mac Compatible Digital Microscope Camera
  SKU	OCS-1.3X	OCS-3.1X	OCS-5.0X	OCS-10.0X
  Warranty	1 Year	1 Year	1 Year	1 Year
  Product Weight	2.0000	2.0000	2.0000	1.0000
  Sensor
  Sensor Type	CMOS	CMOS	CMOS	CMOS
  Sensor Size	1/3 Inch	1/2 Inch	1/2.5 Inch	1/2.5 Inch
  Sensor Details	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9N001 CMOS
  Color/Monochrome	Color	Color	Color	Color
  Pixel Pitch	3.6 µm	2.8 µm	2.2 µm	1.75 µm
  Sensor Color Depth	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB
  Scan Mode	Progressive	Progressive	Progressive	Progressive
  Signal to Noise Ratio	44 dB	43 dB	40.5 dB	40.5 dB
  Sensitivity	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	0.53V/Lux-sec (550nm)	0.44V/Lux-sec (550nm)
  Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter
  Camera
  Camera Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount
  Resolution	1.3 Megapixel, 1280x1024 pixels	3 Megapixel, 2048x1536 pixels	5 Megapixel, 2592x1944 pixels	10 Megapixel
  Camera Output Resolutions		10.0MP
  FPS @ Max Res	15fps	11fps	8fps	2fps
  FPS @ Min Res	30fps	30fps	30fps	30fps
  Camera Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
  White Balance	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Software Included	OptixCam OCView	OptixCam OCView	OptixCam OCView	OptixCam OCView
  Driver API Compatibility	DirectX	DirectX	DirectX	DirectX
  Camera Power Source	USB Powered	USB Powered	USB Powered	USB Powered
  File Formats	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF
  Exposure Control	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Exposure Time	1ms-0.3s	1ms-0.3s	1ms-0.3s	1ms-0.3s
  Other Details
  Included Accessories	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer
  Supported Operating Systems	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+
  System Requirements	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
  Certifications	CE	CE	CE	CE
  Cable Length	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)
  Software Support	6 Months	6 Months	6 Months	6 Months
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount

• 	Omano OM4400/4700 Aluminum Microscope Case
  SKU	OMLC-4400
  Compatibility
  Compatible With	4400, 4700, 4900

• 	Summit OCS-1.3X 1.3MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-3.1X 3.1MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-5.0X 5MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-10.0X 10MP PC/Mac Compatible Digital Microscope Camera	OptixCam Matrix SXGA Digital Microscope Camera
  SKU	OCS-1.3X	OCS-3.1X	OCS-5.0X	OCS-10.0X	OCS-SXGA
  Warranty	1 Year	1 Year	1 Year	1 Year	1 Year
  Product Weight	2.0000	2.0000	2.0000	1.0000	2.0000
  Sensor
  Sensor Type	CMOS	CMOS	CMOS	CMOS	CMOS
  Sensor Size	1/3 Inch	1/2 Inch	1/2.5 Inch	1/2.5 Inch	1/3 Inch
  Sensor Details	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9N001 CMOS	2.0MP Color Sensor
  Color/Monochrome	Color	Color	Color	Color	Color
  Pixel Pitch	3.6 µm	2.8 µm	2.2 µm	1.75 µm	2.8 µm
  Sensor Color Depth	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB
  Scan Mode	Progressive	Progressive	Progressive	Progressive
  Signal to Noise Ratio	44 dB	43 dB	40.5 dB	40.5 dB
  Sensitivity	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	0.53V/Lux-sec (550nm)	0.44V/Lux-sec (550nm)
  Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter
  Camera
  Camera Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount
  Resolution	1.3 Megapixel, 1280x1024 pixels	3 Megapixel, 2048x1536 pixels	5 Megapixel, 2592x1944 pixels	10 Megapixel	2 Megapixel, 1600x1200 pixels
  Camera Output Resolutions		10.0MP
  FPS @ Max Res	15fps	11fps	8fps	2fps
  FPS @ Min Res	30fps	30fps	30fps	30fps
  Camera Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0	RCA Composite Video, VGA 15-Pin DSUB
  White Balance	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Software Included	OptixCam OCView	OptixCam OCView	OptixCam OCView	OptixCam OCView
  Driver API Compatibility	DirectX	DirectX	DirectX	DirectX
  Camera Power Source	USB Powered	USB Powered	USB Powered	USB Powered	External Power Supply
  File Formats	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF
  Exposure Control	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Exposure Time	1ms-0.3s	1ms-0.3s	1ms-0.3s	1ms-0.3s
  Other Details
  Included Accessories	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, power supply, 30mm collar, 30.5mm collar.
  Supported Operating Systems	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+
  System Requirements	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
  Certifications	CE	CE	CE	CE	CE
  Cable Length	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)
  Software Support	6 Months	6 Months	6 Months	6 Months
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount

• 	8W LED Dual Gooseneck Spot Light
  SKU	OMLED-DP8W
  Warranty	1 year
  Product Weight	3.1 lbs
  Product Length	16 cm
  Product Width	10 cm
  Product Height	8 cm
  Power Supply	90V-265V
  Illumination Type	LED
  Product Display
  New	Yes

• Omano Stereo Microscope Manual: download PDF [328kB]
