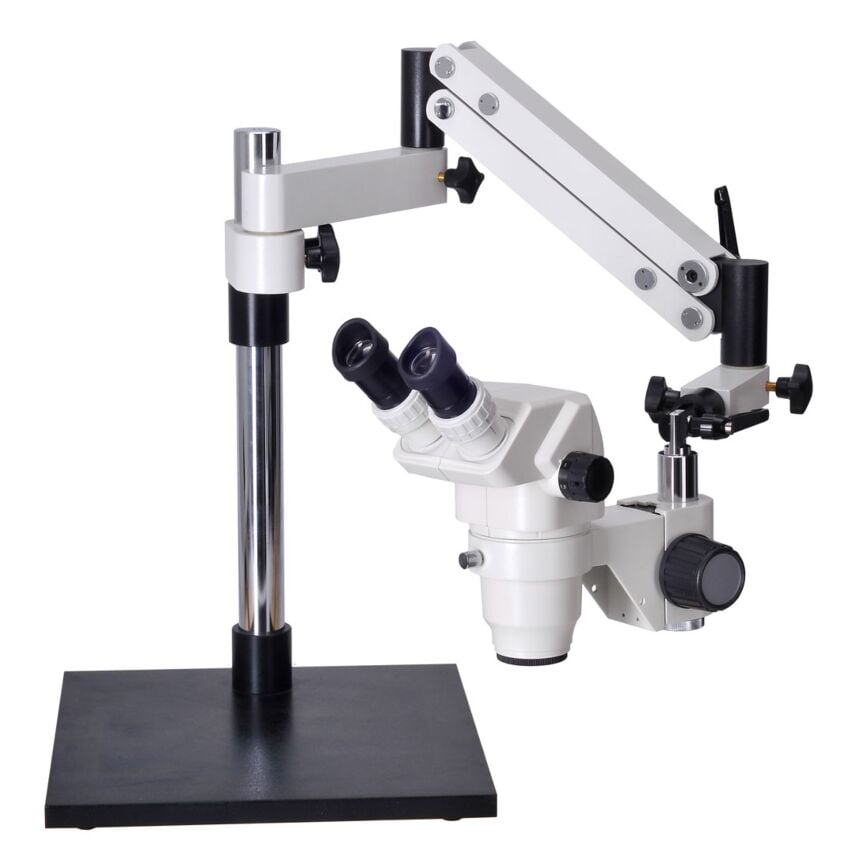

Omano OM99-V7 Articulated Boom Stereoscope

Summary

The OM99-V7 pairs the best Omano stereo microscope head with the articulating V7 boom stand. Zoom magnification is 6.5x-45x with Super WF10x eyepieces and eyecups for a terrific viewing experience. A 12W fluorescent ring light is also included. Lifetime Limited warranty.

Optics

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included. Trinocular version is optionally available with click-stop detents for precise, repetitive observations.

Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. Working distance is 31/4" and more than doubles to over 6" with the addition of a0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x. Available in binocular or trinocular format with a 23mm smooth camera tube included wit the trinocular version.

Focus & illumination

Rack and pinion focus includes dual right and left hand controls for convenience. A 12W fluorescence ring light for shadow free illumination is included in the price and can be upgraded to LED or other light when adding the microscope to your shopping cart.

Stand

The V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced and stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included.

As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.

Accessories

12W fluorescent ring light, eyecups, dust cover, manual

Specifications of Component Options

Select a component below to view related specifications.

• Head
• Stand
• Hanging Bar
• Illumination
• Barlow Lens
• Reticle
• Additional Eyepieces
• Optional Camera System
• Optional C-Mount Adapter

• 	OM99B Zoom Binocular Stereo Head with Focus Block	OM99T Zoom Trinocular Stereo Head with Focus Block	OM99BD Zoom Detent Binocular Stereo Head with Focus Block	OM99TD Zoom Detent Trinocular Stereo Head with Focus Block
  SKU	OM99-B	OM99-T	OM99-BD	OM99-TD
  Top Rated	Yes
  Staff Pick		Yes
  Head
  Head Type	Binocular	Trinocular	Binocular	Trinocular
  Optical Design	Greenough Converged	Greenough Converged	Greenough Converged	Greenough Converged
  Magnification Type	Zoom	Zoom	Zoom	Zoom
  Ocular Angle	45°	45°	45°	45°
  Ocular Tube Diameter	30 mm	30 mm	30 mm	30 mm
  Barlow Mount Diameter	47 mm	47 mm	47 mm	47 mm
  Diopter Adjustment	Dual	Dual	Dual	Dual
  Interpupillary Adjustment	Linear Sliding	Linear Sliding	Linear Sliding	Linear Sliding
  Interpupillary Adjustment Range	55-75 mm	55-75 mm	55-75 mm	55-75 mm
  Trinocular Type		Prism Switching		Prism Switching
  Trinocular Standard		23mm DIN		23mm DIN
  Trinocular Tube Focusable?	Yes	Yes	Yes	Yes
  Head Rotation	360 Degrees	360 Degrees	360 Degrees	360 Degrees
  Minimum Objective (X)	0.65	0.65	0.65	0.65
  Maximum Objective (X)	4.5	4.5	4.5	4.5
  Zoom Ratio	6.9:1	6.9:1	6.9:1	6.9:1
  Zoom Control Type	Smooth Continuous	Smooth Continuous	Detent Click-Stops	Detent Click-Stops
  Zoom Indicator Graduations	Yes	Yes	Yes	Yes
  Parfocal	Yes	Yes	Yes	Yes
  Configuration
  Includes Eyepieces?	Yes	Yes	Yes	Yes
  Included Eyepieces (X)	10X	10X	10X	10X
  Eyepiece Style	SWF Super Widefield (FN 20mm)	SWF Super Widefield (FN 20mm)	SWF Super Widefield (FN 20mm)	SWF Super Widefield (FN 20mm)
  Min Standard Mag	6.5X	6.5X	6.5X	6.5X
  Max Standard Mag	45X	45X	45X	45X
  Eyecups Style	Soft Rubber	Soft Rubber	Soft Rubber	Soft Rubber
  Body
  Body Material	Composite	Composite	Composite	Composite
  Compatibility
  Imaging Compatibility (with adapters)		23mm DIN, C-Mount		23mm DIN, C-Mount
  Available Imaging Mounts		0.5X C-Mount		0.5X C-Mount
  Head Ring Mount Diameter	76 mm	76 mm	76 mm	76 mm
  Working Distance (standard)	103 mm	103 mm	103 mm	103 mm
  WD with 0.5x Barlow	200 mm	200 mm	200 mm	200 mm
  WD with 0.75x Barlow	117	117	117	117
  WD with 2.0x Barlow	40	40	40	40

• 	V7 Articulating Boom Stand	V7U U-Clamp Articulating Boom Stand
  SKU	V7	V7U
  Warranty	Lifetime Limited Warranty	Lifetime Limited Warranty
  Backorder ETA	Oct 30, 2012
  Stand
  Stand Class	Boom	Boom
  Stand Type	Articulated Boom	Articulated Boom
  Stand Features	Articulated	Articulated
  Base Width	330 mm	330 mm
  Base Depth	330 mm	330 mm
  Post Height	464 mm	464 mm
  Post Diameter	38 mm	38 mm
  View Center to Post Distance	673 mm	673 mm
  Physical Construction	Solid Metal	Solid Metal
  Coating Type (Stand)	Durable Powdercoat	Durable Powdercoat
  If HB Required
  Requires Separate Hanging Bar?	Yes	Yes
  Hanging Bar Style	Articulable	Articulable
  If FB Mounts Direct
  Focus Block Mount Diameter	5/8in Pin	5/8in Pin

• 	OMHB30 Hanging Bar
  SKU	OMHB30
  If HB Required
  Hanging Bar Style	Articulable
  If FB Mounts Direct
  Focus Block Mount Diameter	30 mm

• 	12 Watt Fluorescent Ring Light	64 LED Ring Light Illuminator	144 LED Ring Light Illuminator	8W LED Dual Gooseneck Spot Light	6W LED Dual Gooseneck Spot Light, for Pole Mount
  SKU	OMFR-12W	OMLED-64A	OMLED-144A	OMLED-DP8W	OMLED-DP6W
  Warranty		1 year	1 year
  Product Weight		3.1 lbs	4.0 lbs
  Product Length		16 cm	31.0 cm
  Product Width		10 cm	29.0 cm
  Product Height		8 cm	17.5 cm
  Power Supply		90V-265V
  Illumination Type	Fluorescent	LED	LED	LED	LED
  Backorder ETA		Oct 31, 2012
  Product Display
  New		Yes
  Light Specs
  Ring Light Type		LED
  Ring Light Specification		3W x 2
  Ring Light Power		6W
  Ring Light Control		Variable

• 	0.4X Barlow Lens For Omano OM99/XTL	0.75X Barlow Lens For Omano OM99/XTL	0.5X Barlow Lens For Omano OM99/XTL	1.0X Protective Barlow For Omano OM99/XTL	2.0X Barlow Lens For Omano OM99/XTL
  SKU	OMBL-99-04X	OMBL-99-075X	OMBL-99-05X	OMBL-99-10X	OMBL-99XTL-20X
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  Compatibility
  Compatible With	OM99, OM99T, OMXTL, OMXTLT	OM99, OM99T, OMXTL, OMXTLT	OM99, OM99T, OMXTL, OMXTLT	OM99, OM99T, OMXTL, OMXTLT	OM99, OM99T, OMXTL, OMXTLT
  Optical Accessory
  Barlow Lens Power	0.4X	0.75X	0.5X	1.0X	2.0X

• 	Reticle, 25mm Linear	Reticle, 25mm Grid	Reticle, 25mm Cross Linear
  SKU	OMR-25L	OMR-25G	OMR-25CL
  Notes	For OM99, OMXTL, OM2300S	For OM99, OMXTL, OM2300S	For OM99, OMXTL, OM2300S

• 	20X Eyepiece For OM99, OM139	25X Eyepiece For OM99
  SKU	OMEP-99-20X	OMEP-99-25X
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  Notes	Priced per Pair	Priced per Pair
  Compatibility
  Compatible With	OM99, OM99T, OM139, OM139T	OM99, OM99T
  Eyepiece Magnification	20x	25x

• 	Summit OCS-1.3X 1.3MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-3.1X 3.1MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-5.0X 5MP PC/Mac Compatible Digital Microscope Camera	Summit OCS-10.0X 10MP PC/Mac Compatible Digital Microscope Camera
  SKU	OCS-1.3X	OCS-3.1X	OCS-5.0X	OCS-10.0X
  Warranty	1 Year	1 Year	1 Year	1 Year
  Product Weight	2.0000	2.0000	2.0000	1.0000
  Sensor
  Sensor Type	CMOS	CMOS	CMOS	CMOS
  Sensor Size	1/3 Inch	1/2 Inch	1/2.5 Inch	1/2.5 Inch
  Sensor Details	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9P001 CMOS	Micron MT9N001 CMOS
  Color/Monochrome	Color	Color	Color	Color
  Pixel Pitch	3.6 µm	2.8 µm	2.2 µm	1.75 µm
  Sensor Color Depth	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB
  Scan Mode	Progressive	Progressive	Progressive	Progressive
  Signal to Noise Ratio	44 dB	43 dB	40.5 dB	40.5 dB
  Sensitivity	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	0.53V/Lux-sec (550nm)	0.44V/Lux-sec (550nm)
  Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter
  Camera
  Camera Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount
  Resolution	1.3 Megapixel, 1280x1024 pixels	3 Megapixel, 2048x1536 pixels	5 Megapixel, 2592x1944 pixels	10 Megapixel
  Camera Output Resolutions		10.0MP
  FPS @ Max Res	15fps	11fps	8fps	2fps
  FPS @ Min Res	30fps	30fps	30fps	30fps
  Camera Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
  White Balance	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Software Included	OptixCam OCView	OptixCam OCView	OptixCam OCView	OptixCam OCView
  Driver API Compatibility	DirectX	DirectX	DirectX	DirectX
  Camera Power Source	USB Powered	USB Powered	USB Powered	USB Powered
  File Formats	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF	BMP, JPEG, Own Proprietary, PNG, TIFF
  Exposure Control	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual
  Exposure Time	1ms-0.3s	1ms-0.3s	1ms-0.3s	1ms-0.3s
  Other Details
  Included Accessories	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer	0.5X 23mm DIN Adapter, Collars for 30mm & 30.5mm Ocular Tubes, Software CD, Calibration Slide Micrometer
  Supported Operating Systems	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+	Windows XP, Windows Vista, Windows 7, Macintosh OSX 10.5+
  System Requirements	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
  Certifications	CE	CE	CE	CE
  Cable Length	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)	2.5m (8ft)
  Software Support	6 Months	6 Months	6 Months	6 Months
  Compatibility
  Imaging Compatibility (with adapters)	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount	23mm DIN, C-Mount

• 	C-Mount Adapter 0.5X for Omano OM99-T
  SKU	OMCM-99-05X
  Warranty	Omano Limited Lifetime Warranty
  Notes	Does not fit Binocular
  Compatible With	OM99T
