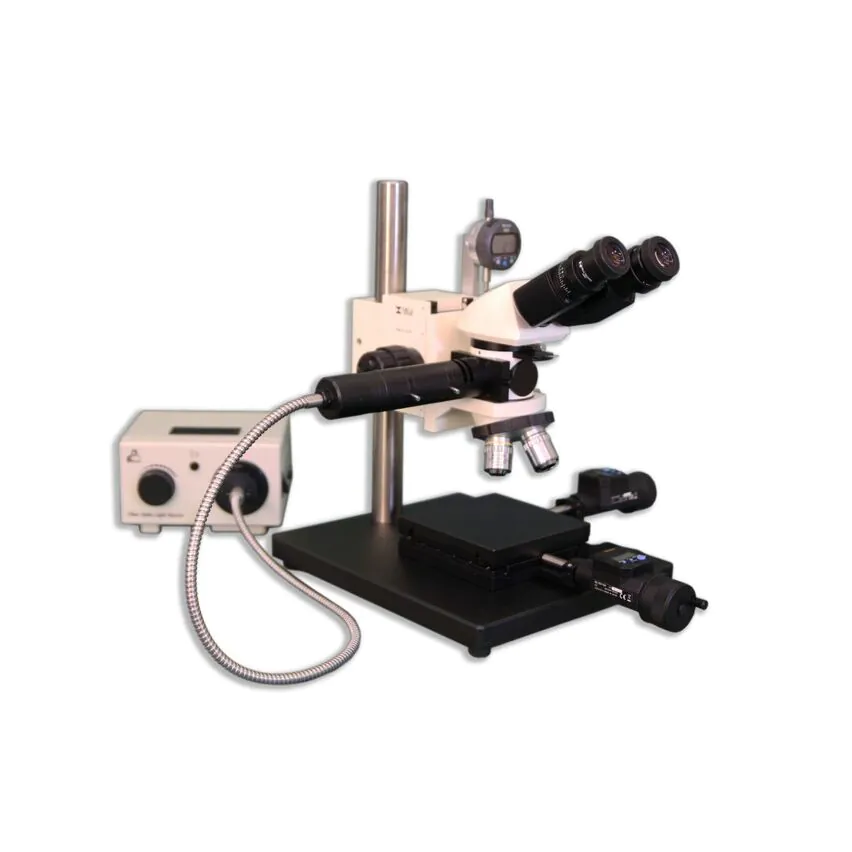

Meiji Techno MC-60T Binocular Incident and Transmitted Light Brightfield/Darkfield Tool Makers/Measuring Microscope
- Multi-Mode Observation: Supports Brightfield, Darkfield, and simple Polarization modes for versatile metallurgical analysis.
- High-Precision Components: Built with professional-grade metallurgical optics and durable, heavy-duty stands for maximum stability.
- Flexible Digital Readouts: Compatible with 2-axis and 3-axis electronic readouts, switchable between inch and metric units.
- Advanced Imaging Support: Fully configurable for 35mm photomicrography, analog/digital CCD, and CMOS video systems.
- SPC Data Integration: Includes Mitutoyo Digimatic Micrometer heads with serial output for seamless Statistical Process Control (SPC).
- Customizable Configurations: Available in binocular or trinocular heads with incident or transmitted light options (110V/220V).
IMPORTANT NOTE: The Mitutoyo Digimatic Indicators (MTI164-164 for X/Y axis and MTI543-392 for Z axis) shown in images are not included and must be purchased separately.
MC-60 & MC-60T Series: Precision Metallurgical & Toolmakers Measuring Microscope
Infinity Corrected Optical System (F=200mm) | Brightfield, Darkfield & Simple Polarization
The MC-60 & MC-60T Series represents a fusion of high-grade metallurgical imaging and precision industrial metrology. Designed for the development and improvement of new materials, these toolmakers' compound microscopes offer a rugged, heavy-duty stand integrated with high-precision X-Y stages. Whether you are performing failure analysis or dimensional inspection, the MC-60 series provides the accuracy required for the most demanding SPC (Statistical Process Control) applications.
Key Features & Engineering
- Three Observation Modes: Fully equipped for Brightfield, Darkfield, and Simple Polarization to identify material properties and surface characteristics.
- Advanced Metrology: Equipped with X and Y ports designed to accept Mitutoyo Digimatic Indicators (MTI164-164) with a 50mm (2”) range.
- Z-Axis Measurement: Includes a dedicated "Z" axis mounting bracket for Mitutoyo MTI543-392 indicators, allowing for precise depth and height measurements.
- Japanese Optical Excellence: Infinity Corrected System with a Quintuple Nosepiece and Planachromat Epi objectives (5X, 10X, 20X, 50X).
- Ergonomic Design: Computer-Aided Design (CAD) ensures coarse and fine focus controls are positioned for maximum user comfort during long inspection shifts.
Versatile Illumination Techniques
Technical Specifications
| Component | Specification |
|---|---|
| Optics | Infinity Corrected System (F=200mm) |
| Objectives | Planachromat Epi M5X, M10X, M20X, M50X |
| Eyepieces | Focusing 10X with Cross-line Reticle |
| Illumination | 150W Vertical Koehler (Optional LED available) |
| Data Output | Digital Readout (Metric/Inch) with Serial SPC Output |
| Filter Set | Blue, Green, Neutral Density (ND8), and Polarizing |
Available Configurations
The MC Series systems are highly modular to fit your specific workflow:
- Models: MC-60 (Binocular) or MC-60T (Trinocular for camera integration)
- Power: 110V or 220V versions available
- Measurement: 2-Axis or 3-Axis electronic digital readouts
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
