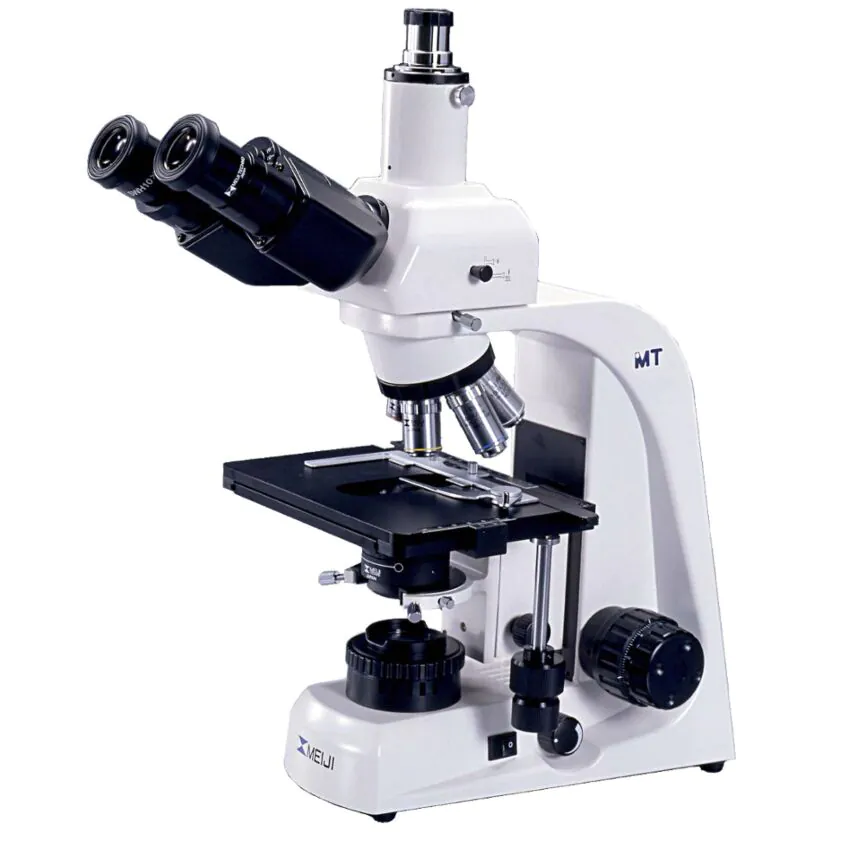

Meiji Techno MT5300H Trinocular Halogen Laboratory Microscope
Meiji employs their Infinity Corrected Optical System (ICOS) in this trinocular microscope with four U.plan objectives (4x, 10x, 40x spring, 100x spring oil immersion) for a laboratory quality biological microscope. Two high eye point, super widefield KHW eyepieces are included with a choice of 10x, 15x and 20x included in the price.
The Seidentopf trinocular viewing head is inclined at a comfortable 30 degrees with interpupillary adjustment of 53-75mm and a graduated diopter for individual eye focusing on the left eyetube. There is a trinocular beam splitter that divides the light 80/20 in favor of the trinocualr port so that you can view the specimen while photographing it. The ceramic coated mechanical stage measures 170mm x140mm with XY movement of 80mm x 52mm.
There are coaxial, right-hand, drop-down controls. The condenser is Abbe 1.25 N.A with iris diaphragm in a dovetail mount. Koehler illummination is powered by 30W halogen on this model with universal voltage.
Select MT5300L for 6W LED illumination Accessories include dust cover and manual. Lifetime Limited Warranty is included with a 90 day electrical warranty.
| Brand | Meiji Techno |
|---|---|
| Warranty | Limited Lifetime Warranty |
| Notes | A material step up from the MT4000 series - genuine lab quality. Requires trinocular adapter |
| Product Weight | 19.2 |
| Product Length | 390 mm |
| Product Width | 210 mm |
| Product Height | 465 mm |
| Recommended For | 0 |
| System Type | Brightfield |
| Optical Design | Infinity Corrected |
| Head Type | Trinocular |
| Ocular Angle | 30° |
| Diopter Adjustment | Single |
| Interpupillary Adjustment | Arc (Seidentopf) |
| Interpupillary Adjustment Range | 53 – 75 mm |
| Trinocular Type | Switchable Beam-Split |
| Trinocular Standard | 23mm DIN |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| View Orientation | Inverted View |
| Ocular Tube Diameter | 30 mm |
| Nosepiece Orientation | Reversed |
| Nosepiece Style | Quintuple (5) |
| Focus Controls | Coarse & Fine |
| Focus Mechanism | Rack & Pinion |
| Focus Control Location | Dual Ambidextrous |
| Focus Controls Graduated? | Yes |
| Stage Type | Mechanical XY |
| Stage Features | Ceramic Coated |
| Stage Range Graduated? | No |
| Includes Eyepieces? | Yes |
| Included Eyepiece Quantity | 2 |
| Included Eyepieces (X) | 10X |
| Eyepiece Style | SWF Super Widefield (FN 22mm) |
| Includes Eyecups? | No |
| Min Standard Mag | 40X |
| Max Standard Mag | 1000X |
| Included Objectives (Qty) | 4 |
| Objective Lens | Plan |
| Included Objective Types | Brightfield |
| Included Objectives Parfocal Adjustable? | No |
| Condenser Type | Abbe Brightfield |
| Condenser Features | Iris Diaphragm |
| Condenser N.A. | 1.25 mm |
| Filter Diameter | 44 mm |
| Illumination Type | Halogen |
| Illumination Style | Transmitted |
| Collector Type | Kohler |
| Collector Features | Field Diaphragm |
| Transmitted Light Type | Halogen |
| Transmitted Light Specification | 6V 30W |
| Transmitted Light Control | Variable |
| Power Supply | 110V-230V AC Auto Voltage Sensing |
| Imaging Compatibility (with adapters) | 23mm |
| Available Imaging Mounts | 0.3X C-Mount |
| Reticles Available? | No |
| Included Extras | Dust Cover |
| Case Included? | No |
