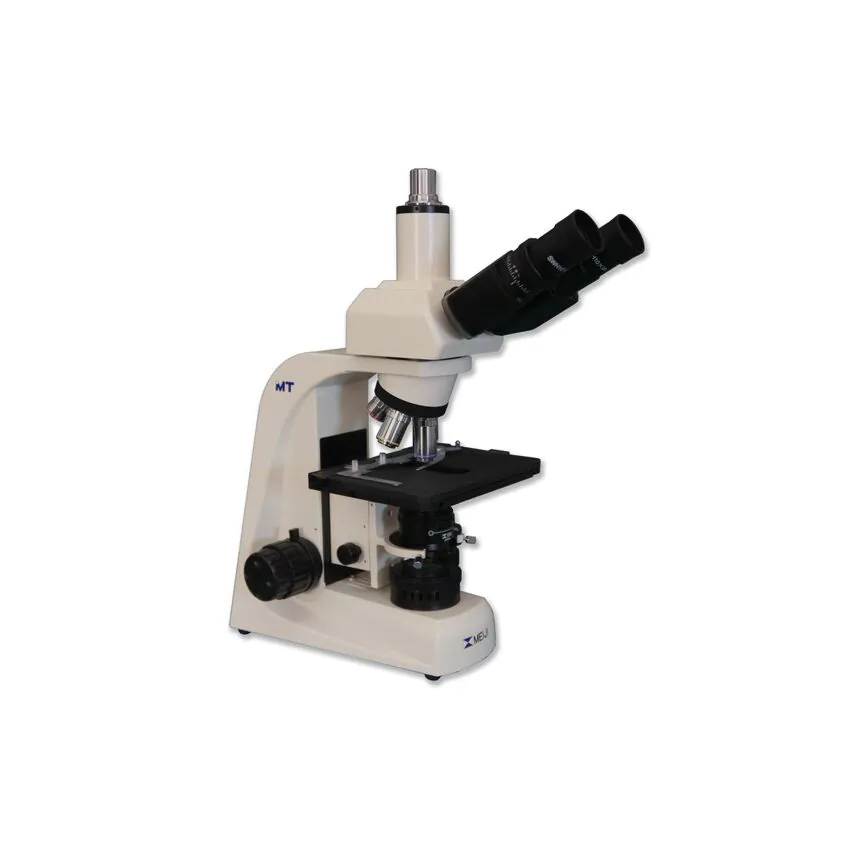

Meiji Techno MT5300HV Veterinary Halogen Trinocular Brightfield Biological Microscope
SKU:
MT5300HV
In stock
You pay: $4,050.00
Free Shipping,
30 Day Money Back Guarantee
- Optimized for Veterinary Clinics: A preconfigured compound biological series specifically designed for in-house laboratory diagnostics and clinical veterinary practice.
- Premium Infinity Optics: Equipped with a full suite of U. Planachromat objectives (4X, 10X, 20X, 40X, and S100X oil) for superior clarity and a wider field of view.
- Precision Control: Features a smooth-operating mechanical stage and an ergonomic focusing system with coarse/fine knobs, stage lock, and tension adjustment.
- High-Quality Illumination: Includes an N.A. 1.25 Abbe Condenser and an auto-voltage sensing base available in either LED or Halogen transmitted light options.
MT5300HV Trinocular Brightfield Biological Microscope
The MT5300HV Series is one of Meiji Techno’s most rugged and fully equipped laboratory microscope systems, manufactured in Japan. Designed to meet the rigorous demands of researchers and clinical specialists, it features a modular design for easy attachment of CMOS/CCD HDMI video cameras and Digital SLR cameras. The system is built upon a computer-engineered rigid frame with ICOS™ (Infinity Corrected Optical System), providing exceptionally bright, high-resolution images with superior flat fields of view.
Key Features
- Optical Excellence: Newly engineered high-performance U. Plan optics (F=200mm) for crisp, distortion-free images and excellent color rendition.
- Rugged Construction: Cast aluminum alloy stand with a chemical-resistant finish—the most durable in the market.
- Ergonomic Design: Low-positioned coaxial coarse/fine focus controls and an ergonomic stage for maximum efficiency during long hours of use.
- Specimen Protection: Equipped with tension adjustment controls and a built-in stage stop lever to prevent accidental damage to slides or objectives.
- Advanced Illumination: Bright Halogen Koehler illumination with an auto-voltage sensing power supply for global compatibility.
Detailed Component Specifications
| Component | Specifications |
|---|---|
| Microscope Head (MA816) | Siedentopf Trinocular type, inclined at 30° for ergonomic posture. Interpupillary adjustment from 53mm to 75mm. |
| Beamsplitter | 80/20 ratio: 80% of light directed to the phototube and 20% to the eyetube when engaged for photo work. |
| Nosepiece | Quintuple (5-position) revolving nosepiece. |
| Operating Modes | Brightfield (Standard) and Phase Contrast (Optional). |
Includes: Microscope body, Trinocular head, paired eyepieces, and Meiji Techno’s Limited Lifetime Warranty.
| Recommended For | 0 |
|---|---|
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
