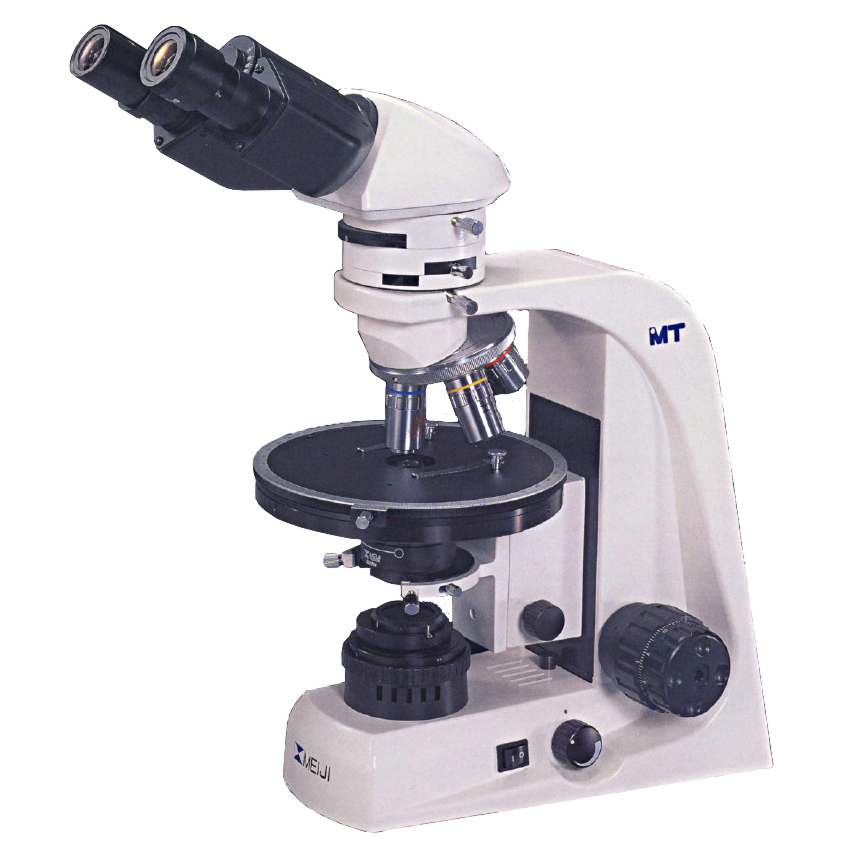

Meiji Techno MT6100 Series Asbestos Bulk Fiber I.D. Microscopes

List Price: $6,670.00

Starting at: $5,995.00

SKU: MT6120/6130

Availability: In stock

  • NIOSH 9002 approved for bulk fiber I.D
  • 4 strain-free Plan objectives
  • Integrated polarizer and Bertrand Lens
  • Centering telescope
  • Halogen illumination
  • Binocular or trinocular format
Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji MT6100 Series Asbestos BulkFiber I.D. Microscopes
  • Meiji MT6100 Series Asbestos BulkFiber I.D. Trinocular Microscope
  • Meiji MT6100 Series Asbestos BulkFiber I.D. Microscope Eyepieces
  • Meiji MT6100 Series Asbestos BulkFiber I.D. Microscope Analyzer
  • Meiji MT6100 Series Asbestos BulkFiber I.D. Microscope focus
Description

Summary

The MT6120 and 6130 are manufactured under NIOSH 9002 reference methods for asbestos bulk fiber identification. Available in both binocular or trinocular format, they include one KHW-10x eyepiece with cross-line and guide pin and one KHW-10x compensating eyepiece. The infinity corrected optical system includes four strain-free, plan objective lenses (one dispersion staining), a rotatable polarizer and integrated Bertrand Lens. Lifetime Limited Warranty.

Optics

The Seidentopf viewing head is inclined at a comfortable 30º and is available in either binocular or trinocular format. There are two KHW 10x eyepieces. One has a cross-line and guide pin, the other is a compensating eyepiece. The optical heart of the MT6120 features four strain-free Plan DIN polarizing objectives (10x, 20x, 40xS and 10x dispersion staining) set in a smooth, ball bearing-driven quadruple nosepiece.

Please note that the trinocular format requires a camera adapter appropriate for your camera.

Stage & Focus

There is a rotatable, circular stage with 360° graduations and vernier. Includes two stage clips. Focus controls are dual-sided with coarse/fine graduated to 2 microns per division and fitted with tension adjustment and safety auto stop.

Polarizer

A rotatable polarizer has a swing-out mount with detents at 0° and 90°. Both the Analyzer and Bertrand lens are sliding types with East - West insertion. A First Order red compensating plate, 550nm is included.

Condenser & Illumination

A strain-free Abbe NA 1.25 condenser comes standard, with sliding mount and annulus for 10x, 20x, 40x phase or dispersion staining objectives, iris diaphragm and dovetail mount. Koehler illumination includes 6V 30w halogen with variable intensity control and transformer. A focusing centering telescope is also included.

Accessories

Blue clear daylight filter, dust cover, manual.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MT6120 Binocular

    MT6130 Trinocular
    SKU MT6120MT6130
    Notes
    Product Weight 14.000014.0000
    Product Length 255 mm255 mm
    Product Width 195 mm195 mm
    Product Height 395 mm395 mm
    System
    System Type Brightfield, PolarizingBrightfield, Polarizing
    Optical Design DIN 160mmDIN 160mm
    Head
    Head Type BinocularTrinocular
    Head Rotation  360 Degrees
    Ocular Angle 30°30°
    Diopter Adjustment DualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 52 – 72 mm52 – 72 mm
    Trinocular Type  Switchable Beam-Split
    View Orientation Inverted ViewInverted View
    Ocular Tube Diameter 23 mm23 mm
    Body
    Nosepiece Orientation Front-facingFront-facing
    Nosepiece Style Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Stage Type Fixed with Attached Mechanical Slide HolderFixed with Attached Mechanical Slide Holder
    Stage Features 360deg Indexed, Ceramic Coated360deg Indexed, Ceramic Coated
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Eyepieces 10X, 15X, 20X10X, 15X, 20X
    Min Standard Mag 50X50X
    Max Standard Mag 500X500X
    Included Objectives (Qty) 33
    Objective Lens PlanPlan
    Included Objective Types Brightfield, Strain-free (Polarizing)Brightfield, Strain-free (Polarizing)
    Condenser
    Condenser Type Abbe BrightfieldAbbe Brightfield
    Condenser Features Achromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderAchromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm
    Filter Diameter 30 mm30 mm
    Illumination
    Illumination Type HalogenHalogen
    Illumination Style TransmittedTransmitted
    Collector Type KohlerKohler
    Collector Features Field DiaphragmField Diaphragm
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 30W30W
    Transmitted Light Control VariableVariable
    Power Supply 120V AC120V AC
    Fuse 3A3A
    Polarizing Accessories Bertrand Lens (conoscopic observation)Bertrand Lens (conoscopic observation)
    Accessories
    Included Extras Dust CoverDust Cover
