Omano 24W LED Fiber Optic Dual Pipe Illuminator

List Price: $538.00

Starting at: $394.00

SKU: OMFOB-DP24-LED

Availability: Backorder

  • High intensity 24W light
  • Shadow-free, Long-life LED
  • Dual Self-Supporting, focusing light guides
  • Color Temp: 5600K
  • Max output: 1600 Lumen
  • ESD-Safe and UV-Free
  • Variable intensity control
  • Auto-switching (96V-265V) power supply
  • Bulb Life: 10,000 Hours

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

24W LED Fiber Optic Light Source   $295.00
24W LED Fiber Optic Dual Pipe Light Guide   $99.00
  • $24.00

Included in Bundle

Illuminator: 24W LED Fiber Optic Light Source

Fiber Optic Dual Pipe: 24W LED Fiber Optic Dual Pipe Light Guide

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

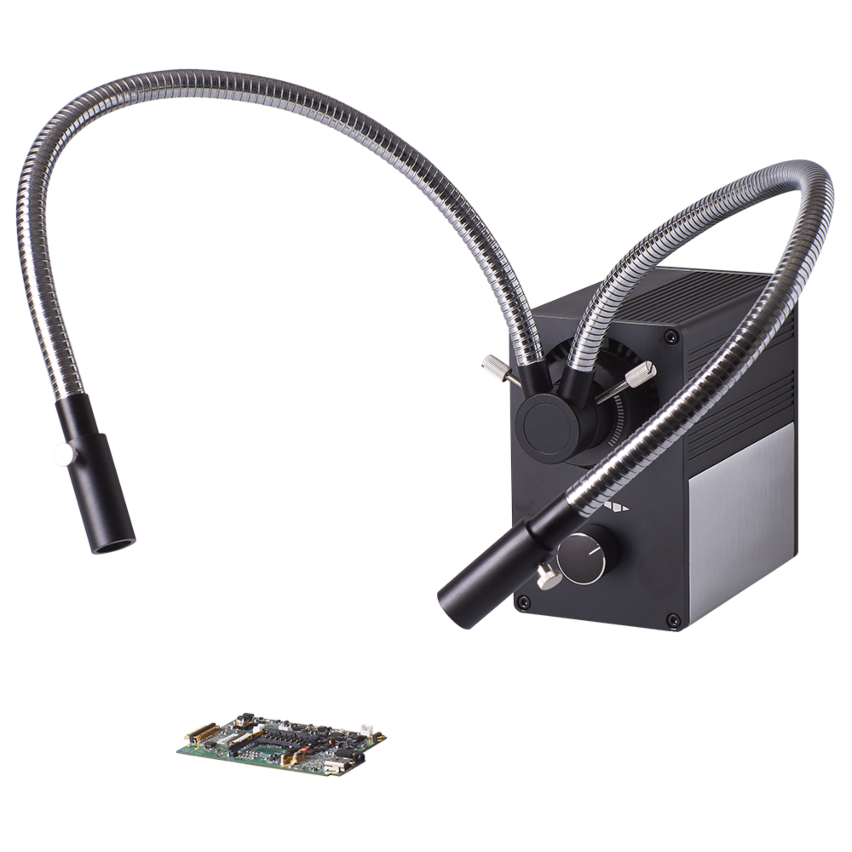

  • 24W LED Fiber Optic Dual Pipe Illuminator
  • 24W LED Fiber Optic Dual Pipe Illuminator back
  • 24W LED Fiber Optic Dual Pipe Illuminator side
Description

Brand new for 2015, our Omano 24W LED fiber-optic dual pipe system is ideal for applications requiring cool, lab-quality, high intensity light, including veterinary surgery, electronic part inspection, forensics and engraving among others.

The The ESD-Safe and UV-free LED light source accepts input voltage from 96V-265V and allows a continuous range of subdued or concentrated lighting, controlled by a rotary dimmer dial on the front panel. The 5/8" light guide receptacle allows secure fitment of self-supporting, focusing 19-inch dual pipe fiber guides. They offer a variable-focusing cone of light which can be positioned exactly where needed for optimum lighting efficiency. Illumination intensity is variable from zero to full brightness and optional filters can be mounted in the receptacle for greater flexibility. A low-noise-signature forced-air cooling fan helps to ensure a trouble-free, 10,000 hour service life for the 24W LED bulb. The lamp color temperature is 5600K at 1600 lumen output, providing cool, shadow-free illumination for PCB inspection, materials failure analysis, manufacturing quality assurance and many others.

  • Powerful 24V LED
  • Power Supply: 96V/265V
  • Variable Controlled Lighting: 50% to 100%
  • Lamp Color Temperature: 5600K
  • Fiber Optic dual pipe guides
  • Auto-switching (96V-265V) power supply
  • Life: 10,000 Hrs
  • Weight: 10.4 LB
  • Lamphouse Dimensions: 7.5" x 5.5" x 3.5"
Shipping Weight: 13 lbs.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • 24W LED Fiber Optic Light Source
    SKU OMFOB-24-LED
    Warranty 1 Year
    Backorder ETA Oct 6, 2017
    Light Specs
    Illumination Type LED, Fiberoptic
    Ring Light Type Fiberoptic
    Ring Light Power 24W LED
    Ring Light Control Variable
    Bulb Accessory
    Bulb Voltage 24V
    Bulb Wattage 24W

  • 24W LED Fiber Optic Dual Pipe Light Guide
    SKU OMFODP-24W-LED
    Compatible With OMFOB
    Ring Light Type Fiberoptic
    Ring Light Power 24W LED
    Ring Light Control Variable

  • 24W LED Color Filter Kit
    SKU OMFOFK-24W-LED
    Compatible With OMFOB
    Light Specs
    Illumination Type Halogen
    Ring Light Type Fiberoptic
    Ring Light Power 24W LED
    Ring Light Control Variable
