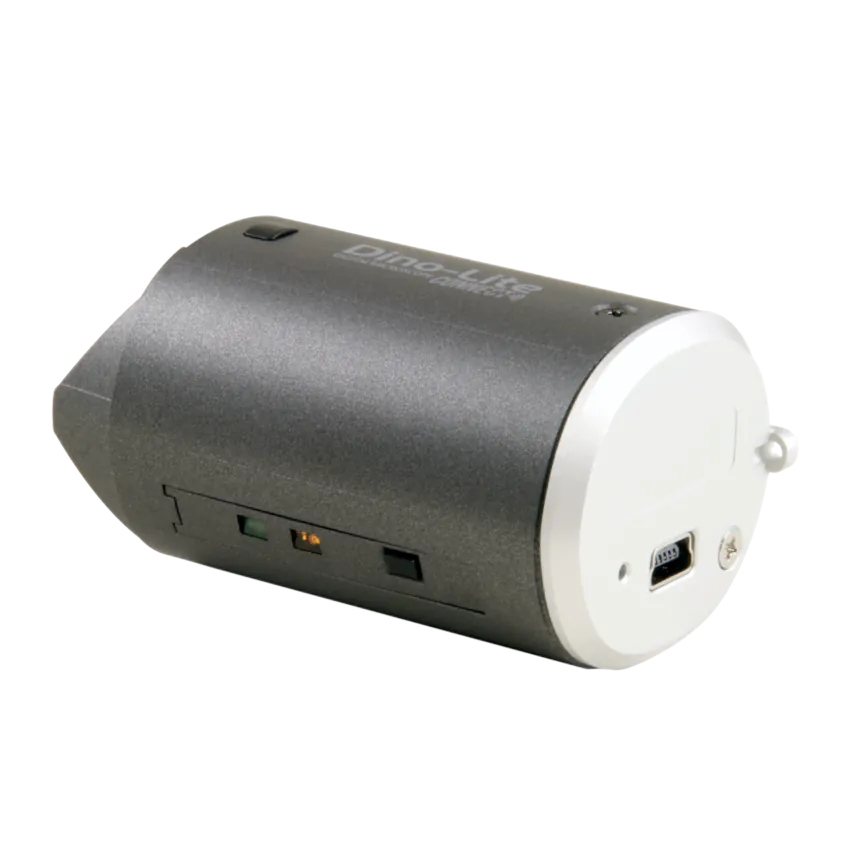

Dino-Lite WF-20 Mobile WiFi Adapter for AF Series Dinolite Microscopes

Our Price: $269.00

$ 269.00

SKU: WF-20

Availability: In stock

  • iOS (iPad, iPhone) and Android OS compatible
  • Designed for Dino-Lite Edge AF series Only
  • Li-Ion battery with up to 3 hours battery life
  • Capture images and stream up to 4 devices at once
  • Power supply rated from 100V-240V

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat



Ideal for field work, industrial inspections or classroom trainings, the new Dino-Lite WF-20 WiFi adapter is an innovative and welcome addition to the world of wireless communication. It allows for Edge "AF" series Dino-Lite microscopes to stream images and video to an iOS (iPad/iPhone) or Android OS system on up to 4 smartphones, tablets or computers.


First, download and install the DinoConnect app from the App Store for iOS, or Google Play for Android version, depending on your device. Next, unplug the USB cord from your Dino-lite AF series microscope, connect the WF-20 and switch the power on. From your iPad or iPhone, go to wifi settings and select "Dino-Lite WiFi Streamer". Then start the DinoConnect App and the microscope will feed live images and video via the WF-20 for display on your iPad or iPhone.

The app offers intuitive menu options for resolution, image or video capture and exposure level, and the LED can be switched off and back on from within the app as well. Users now have a mobile WiFi inspection station wherever needed, from the factory floor to the classroom or anywhere in between.


Package includes WF-20 wireless adapter, AC Power supply (100V-240V), Li-Ion battery.


Demonstration Video

0 0

WF-20 Mobile WiFi Adapter for AF Series Dinolite Microscopes
Brand Dino-Lite
Short Description
  • iOS (iPad, iPhone) and Android OS compatible
  • Designed for Dino-Lite Edge AF series Only
  • Li-Ion battery with up to 3 hours battery life
  • Capture images and stream up to 4 devices at once
  • Power supply rated from 100V-240V
Feed - Title Dino-Lite WF-10 Mobile WiFi Adapter

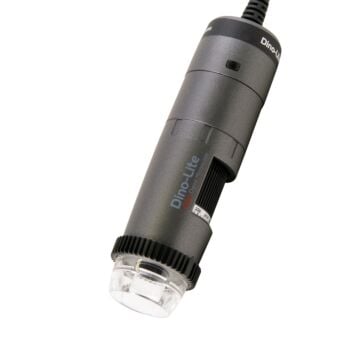

Feed - Description Microscope The Dino-Lite Edge AM4515ZT4 handheld digital microscope includes the new generation sensor with state-of-the-art design and 390X-475X magnification. It includes Automatic Magnification Readouts so that the magnification level is displayed in the Dino-Capture software. This allows users to repeatedly "dial in" to a desired magnification setting simply by moving the thumbwheel and monitoring the Magnification display in the software, making it ideal for quality inspection environments. High magnification requires a stand with MSRK-10A providing precise positioning. The optional MS15X-S1 rotating stage can add greater X-Y axis and rotational control.The AM4515ZT4 also incorporates 2nd-generation housing with smoother focus wheel movement, magnification scroll lock and reinforced USB connection that resists twists and pulls. The magnification lock is particularly useful for repetitive inspection at a given level of magnification.Microscope Features390x-475x Continuious Magnification1.3 MP vivid color resolutionMicrotouch image captureLive video (30fps) and time-lapse videoEight built-in LED lights with On/Off switchPC compatible measuring software2 year warrantyAccessories: Software CD, deluxe storage bag, calibration slide Software (PC-Only)For the AM4515ZT4, Dino-Lite includes software compatible only with Windows-based computers (XP/10). The software is robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.FREE DinoVision Software Free DinoVision software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important. Dino-Lite AM4515ZT - Edge SeriesMobile Scope Android AppThe new Mobile Scope app for Android (Android 4.0 or higher, & Nexus 5, 7, 10) now allows this Dino-Lite microscope to connect directly to Android devices via convenient USB or micro-USB. Download the Mobile Scope app from the Google Play store and connect a compatible Dino-Lite device for fast live video streaming and image capture from anywhere. The $9.99 app includes a free trial evaluation period. Some devices may require a USB to micro-USB connector, available at most computer stores.Mobile Scope Demo Video
