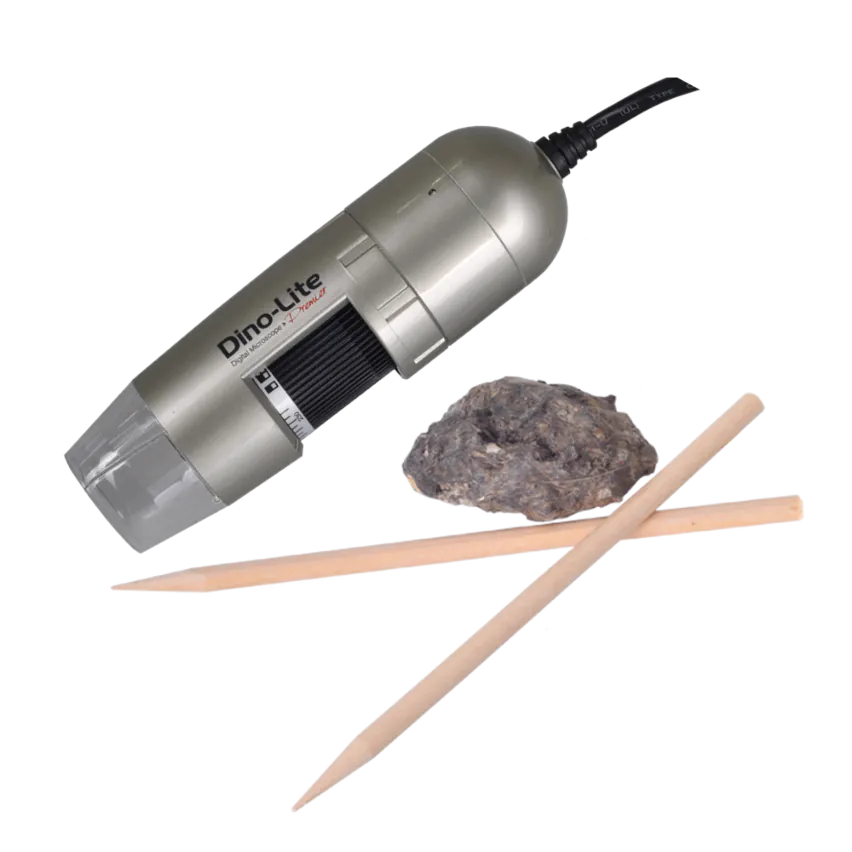

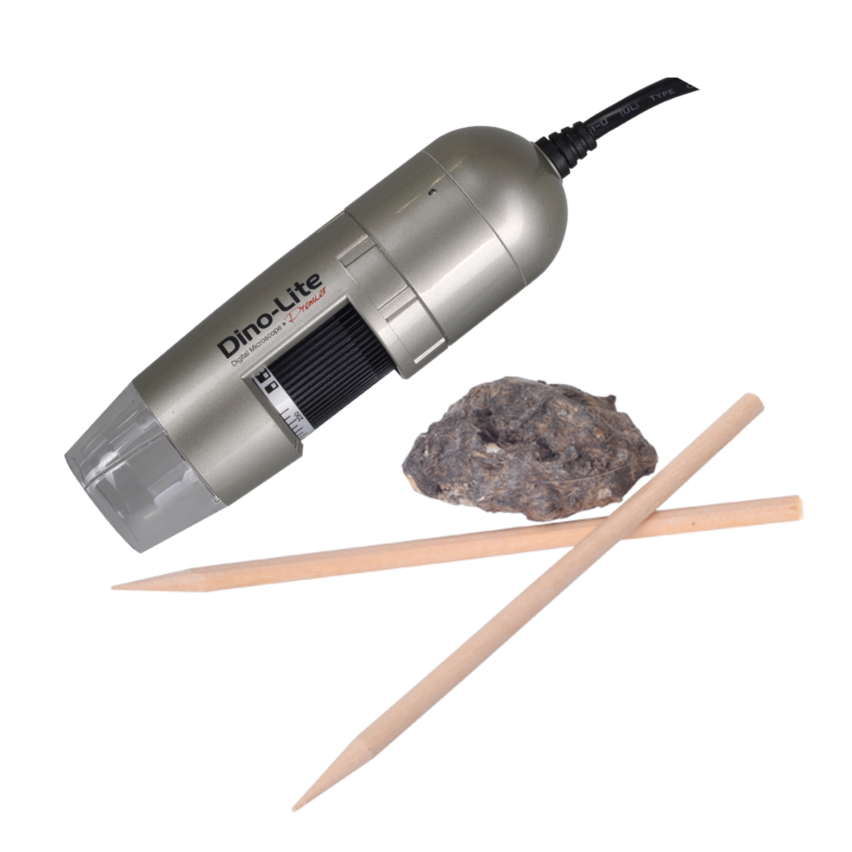

Dino-Lite AM3111 0.3MP Digital Microscope with Owl Pellet Kit

List Price: $158.50

Starting at: $153.00

SKU: AM3111-XSP

Availability: In stock

  • THE PERFECT GIFT
  • High Wow factor for kids
  • 10x-50x, 230x magnification
  • 640x480 pixel resolution
  • USB 2.0 output
  • 8 LED On/Off
  • PC/Mac & UVC compatible
  • Optional Touch Trigger for easy image capture
  • Recommended for Hobbyists
Select package options

Click on to learn more about the option * signifies required items

Owl Pellet Education Kit   $4.00
  • $29.00
  • $39.00
  • $39.00
  • $99.00

Included in Bundle

Owl Pellet Kit: Owl Pellet Education Kit

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • AM3111 0.3MP Digital Microscope with Owl Pellet Kit
  • Owl Pellet Kit
  • Dino-Lite AM3011 screw
  • Dino-Lite AM3011 coin
  • Dino-Lite AM3011 money
  • Dino-Lite AM3011 Jewelry
Description

Microscope Features

The Dino-Lite AM3111 is an upgraded version of the AM2111 with eight integrated LEDs and On/Off capability. Designed for hobbyists, schools and limited budgets, the AM3111 is easily best in class compared to cheaper imitations. It includes 10x~50x and 230x variable magnification, 640x480 pixel color resolution and included PC/Mac compatible software. Bundled with the microscope is an owl pellet kit to make the perfect classroom set or gift.

Features

  • 10x~50x and 230x variable magnification
  • 640x480 Pixels
  • 8 LEDs, On/Off Switch
  • Tough, ABS Plastic Housing
  • Working Distance 205mm at 10x
  • Max refresh rate: 30 fps
  • Multiple File Formats: BMP, JPG, PNG, AVI
  • USB 2.0 Output
  • Included PC/MAc Software
  • Owl pellet, 2pcs Dissecting Sticks & Bone Chart

Stands

DIno-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one above which are offered as optional items above.

Software

Dino-Lite includes software for both PC (DinoCapture 2.0) and Mac (DinoXcope) computers. PC software is compatible through the latest Windows and Mac through OSX 10.5 and later. The software is robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance.

FREE DinoVision Software

There is also additional, free software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important.

Gift - Owl Pellet Kit

The owl pellet kit is a perennial favorite and a perfect stocking stuffer It includes one sterilized owl pellet, two dissecting sticks and a bone chart for identifying the bones inside the pellet. Much like any gift, part of the fun lies in the anticipation of 'unwrapping' in this case the furry exterior that encases the pellet. An owl pellet is formed of the indigestible bits of an owl's meal (fur and bones), which the owl spits out on to the ground beneath its nest. Each pellet is sterilized prior to shipment. Caution - choking hazard: Owl pellet contents include small parts and adult supervision is recommended.

Demonstration Video

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Owl Pellet Education Kit
    SKU OMX-OWLK
    Product Weight 1.0000

  • AM3111 0.3MP 10X-50X, 230X Handheld Digital Microscope

    AM3111T 0.3MP 10X-50X, 230X Handheld Digital Microscope with MicroTouch
    SKU AM3111AM3111T
    Notes Same as AM3111 but with MicroTouch
    Product Weight 0.35000.3500
    Product Length 4 in4 in
    Product Width 1.26 in1.26 in
    Dino-Lite
    Dino-Lite Series PremierPremier
    Special Features  MicroTouch Trigger
    Body Material High-Impact PlasticHigh-Impact Plastic
    Magnification Range 10x–50x, 220x10x–50x, 220x
    Magnification Type Distance VariableDistance Variable
    Minimum Working Distance Full ContactFull Contact
    Light Specs
    Illumination Type LEDLED
    Illumination Style IncidentIncident
    Illumination Output White LightWhite Light
    Focus Controls CoarseCoarse
    Focus Mechanism RotaryRotary
    Resolution 0.3 Megapixel, 640x480 pixels0.3 Megapixel, 640x480 pixels
    Camera Interface USB 2.0USB 2.0
    Power Source USB PoweredUSB Powered
    Head Type Digital OnlyDigital Only
    Sensor Type CMOSCMOS
    FPS @ Max Res 30 fps30 fps
    Exposure Control Automatic, ManualAutomatic, Manual
    White Balance Automatic, ManualAutomatic, Manual
    Software Included DinoCapture (Win), DinoXcope (Mac)DinoCapture (Win), DinoXcope (Mac)
    Driver API Compatibility DirectXDirectX
    File Formats BMP, JPEG, PNGBMP, JPEG, PNG
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.5+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.5+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, RoHSCE, RoHS
    Cable Length 6 ft6 ft
    Camera Warranty 2 Years2 Years
Magnification Chart
AM2111 or AM3111 or AD3713
 MAG 10X 20X 30X 40X 50X

205X

230X

 WD (mm)  205 mm 52 mm 24 mm 11 mm 3.8 mm Touch 2.8 mm
 FOV (mm) 60 x 45  23 x 15.7  14 x 10.5  10.5 x 7.9  8.4 x 6.3  2 x 1.5 1.8 mm x 1.4
 WD (inch)  8 in 2 in 0.95 in 0.43 in 0.15 in Touch 0.11 in
 FOV (inch)  2.36 x 1.77  0.83 x 0.62  0.55 x 0.41  0.41 x 0.31  0.33 x 0.25  0.08 x 0.06  0.07 x 0.05
 DOF (mm)   8 mm 4 mm 2.5 mm 2 mm ~ 0.45 mm ~ 0.42 mm
