Dino-Lite

Edge AM4115TF 1x~70x Extra LWD Handheld Digital Microscope

In stock

SKU:
TMS-AM4115TF
Authorized Dealer
  • 1x-70x Zoom magnification
  • Generous 18-inch working distance at 10X
  • Scroll lock to fix magnification
  • MS35B + MSA2P recommended for 20X & below
  • PC/Mac compatible
  • Recommended for professional use
  • USB 2.0
Select Package Options:
Edge AM4115TF 1x~70x Extra LWD Handheld Digital Microscope   + $699.00
image 1 x RK-06A Table Top Precise Boom Stand   + $199.00
image 1 x MS35B Versatile Table Top Stand with 8" WD   + $129.00
image 1 x MSA2P Extension Pole for MS35B - MS36B   + $29.00
image 1 x MSRK-10A Table Top Precise Stand with Quick Release   + $299.00
image 1 x MSRK-02 Table Clamp Mounted Gooseneck Stand   + $129.00
image 1 x MSRK-10VX Vertical Extension Pole for MSRK-10A Precision Stand   + $39.00
image 1 x MSRK-10FX Flexible Extension Arm for MSRK-10A Precision Stand   + $39.00
image 1 x N3C-A Coaxial Illuminator Cap for Dino-Lite Edge Series   + $109.00
image 1 x N3C-R Front Macro Diffuser Cap for Dino-Lite Edge Series   + $69.00
image 1 x WF-10 Mobile WiFi Adapter   + $199.00
Included in Bundle

    * Required Fields

    product_image

    Edge AM4115TF 1x~70x Extra LWD Handheld Digital Microscope

    You pay: $699.00

    Regular Price: $649.00

    You pay: $699.00

    Regular Price: $649.00

    Free Shipping
    Add To Wishlist
    30 Day Money Back Guarantee
    Live Chat

    Microscope Features

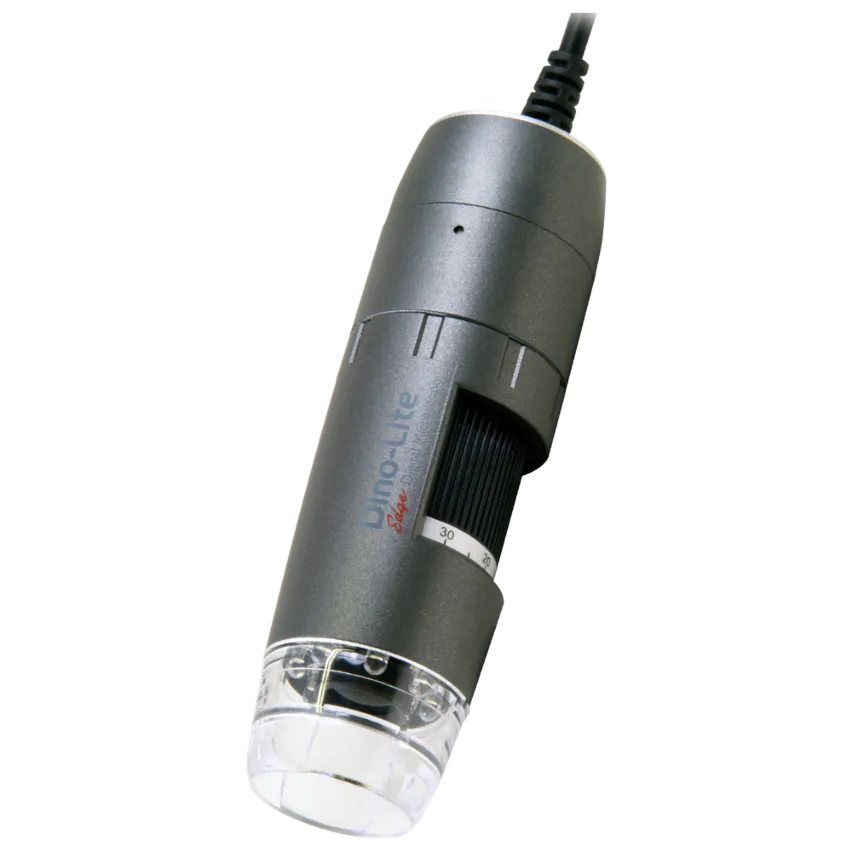

    The brand new AM4115TF handheld digital microscope introduces a new generation 1.3MP digital sensor with state-of-the-art design, extra-long working distance and 1X-70X continuous zoom magnification. The new sensor offers better image quality and sharpness with less aberration and vignetting.

    The AM4115TF incorporates the 2nd-generation housing with smoother focus wheel movement, magnification scroll lock and reinforced USB connection that resists twists and pulls. The magnification lock is particularly useful for repetitive inspection at a given level of magnification.

    Standard features include 1.3 MP vivid color resolution with Microtouch image capture for more convenient snap shots. Simply touch the end of the microscope to take a picture. The microscope also enables live video (30fps) and time-lapse video. Eight built-in LED lights provide built-in illumination. The microscope is PC/Mac compatible with included measuring software and a 2-year warranty.

    Includes: Digital microscope, software CD, deluxe storage bag.

    Optional Stands

    NOTE - at 10X to 20X, the working distance ranges from 18" to 10", making the MS35B and MSA2P a highly recommended accessory stand combo. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one of the above which are offered as optional items.

    Software

    Dino-Lite includes software for both PC (DinoCapture 2.0) and Mac (DinoXcope) computers. PC software is compatible through Windows 7 and Mac through OSX 10.5 and later. We have found the software to be robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy.

    Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.

    Dino-Lite Edge Series

    More Information
    Brand Dino-Lite
    Recommended For 0
    Global Industrial Description
    • State-of-the-art imaging sensor
    • 5X~140X full-range zoom magnification
    • Automatic Magnification Readouts
