Dino-Lite Edge AM3715TB 10X-50X, 220X Handheld Digital Strobescope

Starting at: $599.00

SKU: TMS-AM3715TB

Availability: In stock

  • 10x-50x, 220x magnification
  • Stroboscope @ 60 Hz
  • 60 frame-per-second refresh rate
  • State-of-the-art 640 x 480 color imaging sensor
  • Software-controlled illumination
  • Interchangeable nozzles
  • Magnification scroll lock
  • Windows PC only
  • USB 2.0 Output
  • Recommended for professional use

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Edge AM3715TB 10X-50X, 220X Handheld Digital Strobescope   $599.00
  • $39.00
  • $39.00
  • $69.00
  • $99.00
  • $169.00

Included in Bundle

Microscope: Edge AM3715TB 10X-50X, 220X Handheld Digital Strobescope

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

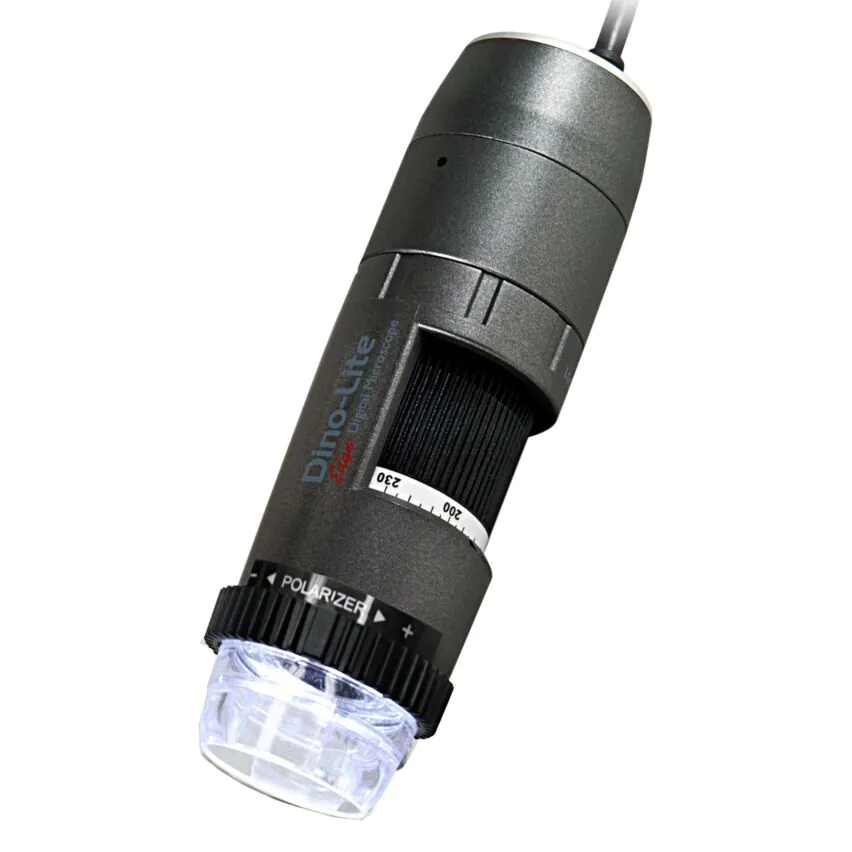

  • Dino-Lite AM3715TB Strobescope
  • Dino-Lite AM3715TB Strobescope side 1
  • Dino-Lite AM3715TB Strobescope side 2
  • Dino-Lite AM3715TB Strobescope side 4
  • Dino-Lite AM3715TB Strobescope side 3
Description

Summary

The brand new AM3715TB handheld digital microscope is the first Edge series microscope to feature 60 hz stroboscopic illumination. Key upgrades from the AD3713TB include a new generation Edge-series 640 x 480 digital sensor with state-of-the-art design and a new housing with magnification scroll lock. The new sensor offers better image quality and sharpness with less aberration and vignetting, and the microscope also features detachable and interchangeable nose caps which change working distance to better fit the application.

Stroboscopic Illumination

Under stroboscopic illumination mode, the 8 white LED lights flash at a constant 60fps at 640 x 480 resolution, effectively "freezing" rotating objects such as fan blades, rotors, impellers or drill bits. This makes it ideal for machine tool applications and dynamic failure analysis. For optimal results the environmental lighting should be lower than normal and the AM3715TB should be closer to the object being viewed. Alternatively, strobe mode can be turned off and the LED's will function normally in the standard on/off setting.

Along with continuous zoom magnification, the new AM4115-FVT also features another "first" for the AM series, a new removable front cap, similar to those found only on the AD series microscopes. This allows for use of a wide variety of included interchangeable caps such as a sealed cap for dust protection and an open cap. These caps provide additional imaging flexibility and can be interchanged or removed for greater standoff working distance at high magnification settings.

The AM3715TB also incorporates the 2nd-generation housing with smoother focus wheel movement, magnification scroll lock and reinforced USB connection that resists twists and pulls. The magnification lock is particularly useful for repetitive inspection at a given level of magnification.

Optional Stands

Dino-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one of the above which are offered as optional items.

Software

This Dino-Lite microscope includes software for Windows PC only (DinoCapture 2.0), compatible from Windows XP through Windows 8. We have found the software to be robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.

FREE DinoVision Software

There is also additional, free software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important.

Accessories

Microscope, Carry Pouch, Software CD, Edge Calibration Target. Shipping details: 6 x 6 x 2.5", 1.0 Lb

Dino-Lite AD3715TB Demonstration Video

Windows RT Demonstration Video

Mobile Scope Android App

The new Mobile Scope app for Android (Android 4.0 or higher, & Nexus 5, 7, 10) now allows this Dino-Lite microscope to connect directly to Android devices via convenient USB or micro-USB. Download the Mobile Scope app from the Google Play store and connect a compatible Dino-Lite device for fast live video streaming and image capture from anywhere. The $9.99 app includes a free trial evaluation period. Some devices may require a USB to micro-USB connector, available at most computer stores.

Mobile Scope Demo Video

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Edge AM3715TB 10X-50X, 220X Handheld Digital Strobescope
    SKU AM3715TB
    Notes 10x - 220x (Digital 60 frames / sec) - UVC compatible
    Product Weight 0.3500
    Product Length 4 in
    Product Width 1.26 in
    Dino-Lite
    Dino-Lite Series Edge
    Special Features Android USB Connect, Interchangeable Nosecone, Measuring, MicroTouch Trigger, Mobile & Wireless, Strobe
    Body Material High-Impact Plastic
    Magnification Range 10x–50x, 220x
    Magnification Type Distance Variable
    Minimum Working Distance Full Contact
    Illumination Type LED
    Illumination Style Incident
    Illumination Output White Light
    Focus Controls Coarse
    Focus Mechanism Rotary
    Resolution 0.3 Megapixel, 640x480 pixels
    Camera Interface USB 2.0
    Power Source USB Powered
    Head Type Digital Only
    Sensor Type CMOS
    FPS @ Max Res 60 fps
    Exposure Control Automatic, Manual
    White Balance Automatic, Manual
    Software Included DinoCapture (Win), DinoXcope (Mac), UVC (Linux)
    File Formats BMP, JPEG, PNG
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Linux (kernel 2.6.26+)
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, RoHS
    Cable Length 6 ft
    Camera Warranty 1 Year
Magnification Chart
AM2111 or AM3111 or AD3713
 MAG 10X 20X 30X 40X 50X

205X

230X

 WD (mm)  205 mm 52 mm 24 mm 11 mm 3.8 mm Touch 2.8 mm
 FOV (mm) 60 x 45  23 x 15.7  14 x 10.5  10.5 x 7.9  8.4 x 6.3  2 x 1.5 1.8 mm x 1.4
 WD (inch)  8 in 2 in 0.95 in 0.43 in 0.15 in Touch 0.11 in
 FOV (inch)  2.36 x 1.77  0.83 x 0.62  0.55 x 0.41  0.41 x 0.31  0.33 x 0.25  0.08 x 0.06  0.07 x 0.05
 DOF (mm)   8 mm 4 mm 2.5 mm 2 mm ~ 0.45 mm ~ 0.42 mm
