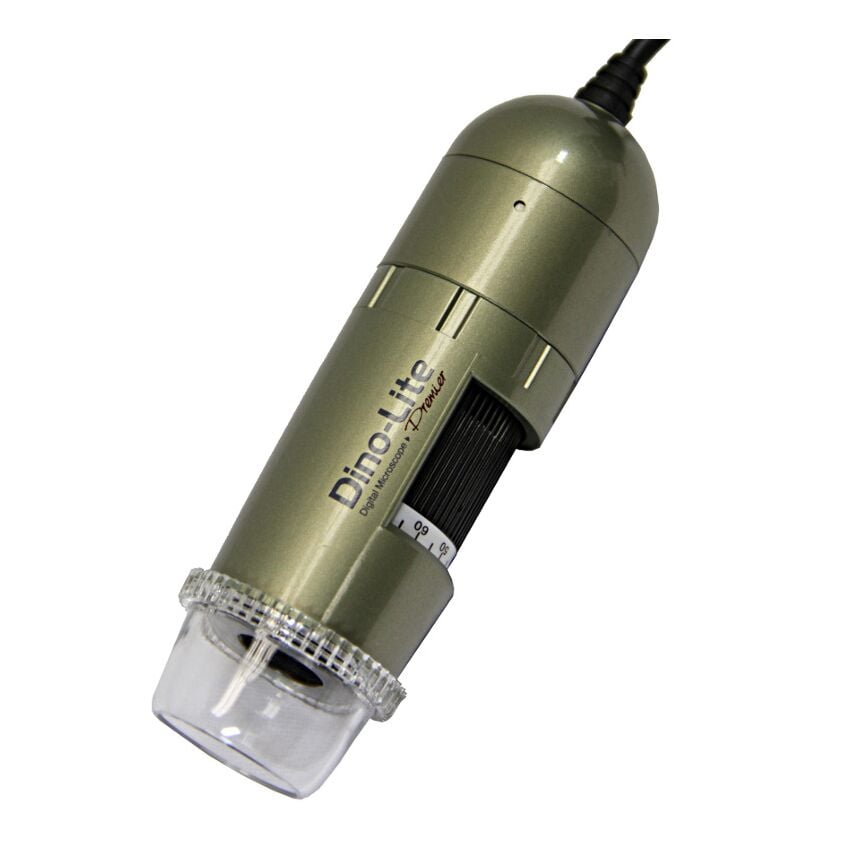

Dino-Lite Premier AM4113ZTL 10X-92X Polarizing Handheld Digital Microscope

List Price: $599.00

Starting at: $549.00

SKU: TMS-AM4113ZTL

Availability: In stock

  • 10x~90x Extended working distance
  • Built-in, adjustable polarization
  • 1.3 megapixel resolution
  • Microtouch trigger button
  • Measuring software with calibration slide for accuracy
  • PC/Mac and UVC compatible
  • USB 2.0
  • 2 year warranty,/li>
  • Recommended for Dermatologists

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Premier AM4113ZTL 10X-92X Polarizing EWD Handheld Digital Microscope   $549.00
  • $19.00
  • $289.00

Included in Bundle

Microscope: Premier AM4113ZTL 10X-92X Polarizing EWD Handheld Digital Microscope

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Dino-Lite AM4113ZTL digital microscope
  • Dino-Lite AM4113ZTL digital microscope side 1
  • Dino-Lite AM4113ZTL digital microscope side 2
  • Dino-Lite AM4113ZTL digital microscope side 4
  • Dino-Lite AM4113ZTL digital microscope side 5
  • Dino-Lite AM4113ZTL digital microscope side 6
Description

Microscope Summary

The Dino-Lite AM4113ZTL handheld digital microscope is one of the most popular professional models with 10x-90x variable magnification and extended 9" working distance.Aside from standard industrial inspection applications, the AM4113ZTL is also useful for Dermatologists since it enables viewing of the sub-dermal layer of skin. It includes an upgraded 1.3 megapixel sensor with vivid color resolution for both still and live video, convenient Microtouch image capture button, measuring software and polarized light to reduce the effects of glare from reflective surfaces. The polarizing feature has three settings: Half, Full or Off. Eight built-in LEDs with On/Off switch power illumination. The microscope also includes 2nd generation housing, a smoother focus wheel movement, magnification scroll lock and reinforced USB connection that resists twists and pulls. The magnification lock is particularly useful for repetitive inspection at a given level of magnification. The microscope is PC/Mac/UVC compatible and includes 2 year warranty. Optional stands are available and recommended.

Microscope Features

  • 10x-90x Variable Magnification
  • Polarizing Light
  • 1.3 MP vivid color resolution
  • Microtouch image capture
  • Live video (30fps) and time-lapse video
  • Eight built-in LED lights with On/Off switch
  • PC/Mac compatible measuring software
  • 2 year warranty
  • Accessories: Software CD, carry pouch, calibration slide

Software

Dino-Lite includes software for both PC (DinoCapture 2.0) and Mac (DinoXcope) computers. PC software is compatible through Windows 8 and Mac through OSX 10.5 and later. We have found the software to be robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.

FREE DinoVision Software

Free DinoVision software is also available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important.

Dino-Lite AM4013MZTL/AM4113ZTL

Mobile Scope Android App

The new Mobile Scope app for Android (Android 4.0 or higher, & Nexus 5, 7, 10) now allows this Dino-Lite microscope to connect directly to Android devices via convenient USB or micro-USB. Download the Mobile Scope app from the Google Play store and connect a compatible Dino-Lite device for fast live video streaming and image capture from anywhere. The $9.99 app includes a free trial evaluation period. Some devices may require a USB to micro-USB connector, available at most computer stores.

Mobile Scope Demo Video

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Premier AM4113ZTL 10X-92X Polarizing EWD Handheld Digital Microscope
    SKU AM4113ZTL
    Product Weight 0.4600
    Product Length 4 in
    Product Width 1.26 in
    Dino-Lite
    Dino-Lite Series Premier
    Special Features Android USB Connect, Long Working Distance, Measuring, MicroTouch Trigger, Polarizing
    Body Material ABS Plastic
    Magnification Range 10x–50x, 220x
    Magnification Type Distance Variable
    Minimum Working Distance Full Contact
    Illumination Type LED
    Illumination Output White Light
    Focus Controls Coarse
    Focus Mechanism Rotary
    Resolution 1.3 Megapixel, 1280x1024 pixels
    Camera Interface WiFi, USB 2.0
    Power Source USB Powered
    Head Type Digital Only
    Sensor Type CMOS
    FPS @ Max Res 15 fps
    FPS @ Min Res 30 fps
    Exposure Control Automatic, Manual
    White Balance Automatic, Manual
    Software Included DinoCapture (Win), DinoXcope (Mac)
    Driver API Compatibility DirectX
    File Formats BMP, JPEG, PNG
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.5+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, RoHS
    Cable Length 6 ft
    Camera Warranty 2 Years

  • MSAA111A2 Diffuser for ZT Series
    SKU MSAA111A2
    Product Weight 0.1000
    Product Length 3
    Product Width 2
    Product Height 2

  • WF-10 Mobile WiFi Adapter
    SKU WF-10
    Product Display
    New Yes
Magnification Chart
AM / AD / 4XX3TL / 7XX3TL
 MAG 10X 20X 30X 40X 50X

70X

90X

 WD (mm)  280 mm 160 mm 110 mm 86 mm 73 mm 60 mm 56 mm
 FOV (mm) 33.5 x 25  19.6 x 15.6  13 x 10.4  9.8 x 7.8  7.8 x 6.3  5.6 x 4.5 4.3 mm x 3.5
 WD (inch)  11 in 6.3 in 4.3 in 3.4 in 2.9 in 2.4 in 2.2 in
 FOV (inch)  1.38 x 0.98  0.77 x 0.61  0.51 x 0.41  0.39 x 0.31  0.31 x 0.25  0.22 x 0.18  0.19 x 0.15
 DOF (mm)   ~ 6 mm ~ 3.4 mm ~ 2.2 mm ~ 1.65 mm   ~ 0.8 mm
