Dino-Lite MSRK-10A Table Top Precise Stand with Quick Release

$ 269.00

Starting at: $269.00

SKU: TMS-MSRK-10A

Availability: In stock

  • Precision industrial stand with quick release adjustment
  • Vernier controlled 8" tall vertical post for precise focusing
  • Lightweight and portable hands-free operation
  • Adjustable 7" horizontal boom arm
  • Included fixed boom extension arm
  • Optional flexible extension arm for greater reach

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

MSRK-10A Table Top Precise Stand with Quick Release   $269.00
  • $39.00
  • $39.00
  • $129.00
  • $99.00

Included in Bundle

Stand: MSRK-10A Table Top Precise Stand with Quick Release

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

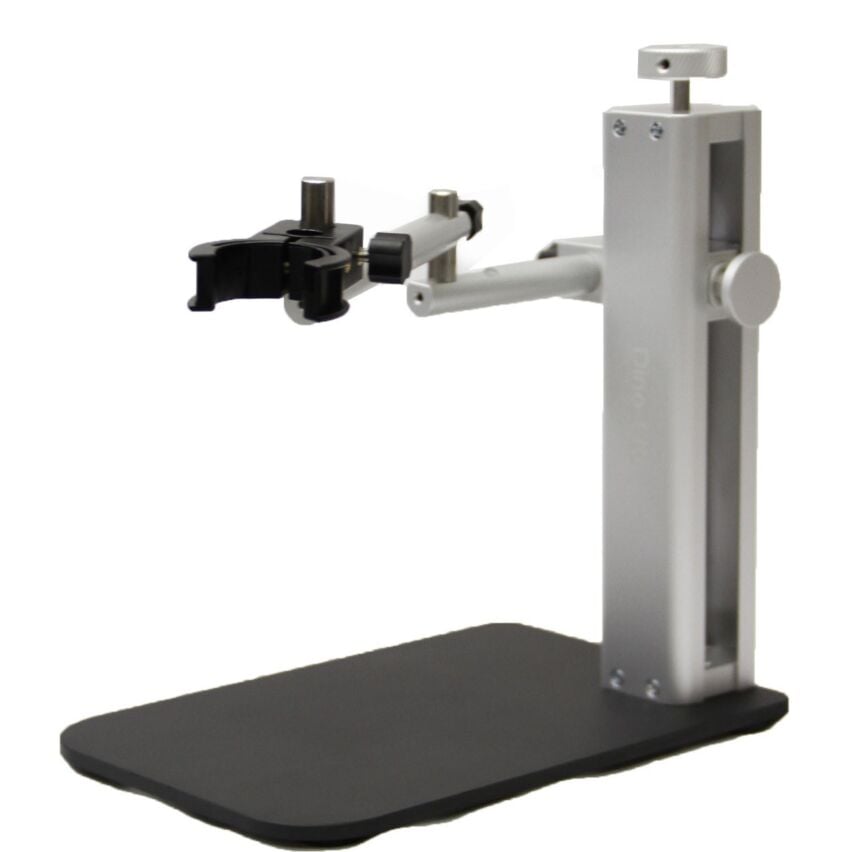

  • MSRK-10A Table Top Precise Stand with Quick Release
  • MSRK-10A Table Top Precise Stand with Quick Release 2
  • MSRK-10A Table Top Precise Stand with Quick Release back
  • MSRK-10A Table Top Precise Stand with Quick Release pin
  • MSRK-10A Table Top Precise Stand with Quick Release in use
Description

The MSRK-10A table top platform stand combines a versatile 7-inch horizontal boom arm and a precision-focusing, 8-inch tall vertical adjustment for sharp, clean images. The RK-10A also features a quick-release mechanism within the machined vernier focus block that offers vertical re-positioning at the the touch of a button. Push the button in and slide the arm up or down to the desired height, then release the button, focus the microscope thumb wheel and fine-tune with the vertical knob for a sharp, clean image. An included safety collar offers a secure reference point for repeated observations at the same magnification level.

The boom arm can rotate 360 degrees within the focus block, permitting the microscope to view vertically, horizontally, or any angle in between. The horizontal arm offers 115mm of lateral movement and the vertical post allows 148mm of height adjustment. An included 130mm extension bar offers yet additional reach for imaging large subjects like PC motherboards, paper samples and other items.

The stand is constructed of durable and lightweight machined aluminum with a stain-resistant finish, making it an ideal choice for lab work, pcb inspections and industrial assembly line quality check stations.

For added versatility, the MSRK-10A can be easily paired with the new Dino Lite MS15X XY+R Base with Removable Rotating Table which allows you to move a specimen on both the X and Y axis as well as rotate it 360 degrees in a steady, controlled manner.

Accessories: Stand, Extension Arm, HD-P1 holster.

Dino-Lite Demonstration Video

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MSRK-10A Table Top Precise Stand with Quick Release
    General
    Brand Dino-Lite
    SKU MSRK-10A
    Stand Features Crank Adjustment, Portable
    Base Width 5
    Base Depth 8
    Post Height 8

  • MSRK-10FX Flexible Extension Arm for MSRK-10A Precision Stand

    MSRK-10VX Vertical Extension Pole for MSRK-10A Precision Stand

    MSRK-02 Table Clamp Mounted Gooseneck Stand

    MSRK-10-PX Precise Horizontal Positioning Arm for MSRK-10A Precision Stand
    General
    Brand Dino-LiteDino-LiteDino-LiteDino-Lite
    SKU MSRK-10FXMSRK-10VXMSRK-02MSRK-10-PX
    Feed - Title Digital Microscope Stand Dino-Lite MSRK-10FX Flexible Extension Arm for MSRK-10A Precision StandDigital Microscope Stand Dino-Lite MSRK-10VX Vertical Extension Pole for MSRK-10A Precision StandDigital Microscope Stand Dino-Lite MSRK-02 Table Clamp Mounted Gooseneck StandDigital Microscope Stand Dino-Lite MSRK-10-PX Precise Horizontal Positioning Arm for MSRK-10A Precision Stand
    Feed - Description Microscope The Dino-Lite Premier AM7013MZT4 digital handheld microscope offers relatively high 400x-470x magnification. The microscope also features 5.0 Megapixel vivid color resolution, polarized light, measuring software, a Microtouch image capture button and a tough aluminum housing for harsher operating environments. With eight built-in white LEDs, there are three polarized light settings: Full On, Half On and Off. The microscope is PC, MAC and UVC compatible. In addition, via Windows RT, the AM7013MZTS is tablet compatible for a mobile solution.Microscope Features400-470x Zoom magnification 5.0MP ResolutionAluminum alloy casingPolarizing Light to reduce glareWindows RT tablet-compatiblePC, MAC and UVC compatibleMicrotouch Image Capture8 White LED on/off illumination 2 Year warrantyOptional WiFi adapter for iPad & AndroidAccessories: Software CD, Calibration Slide, Carry Pouch SoftwareDino-Lite includes software for both PC (DinoCapture 2.0) and Mac (DinoXcope) computers. PC software is compatible through Windows 8 and Mac through OSX 10.5 and later. We have found the software to be robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.FREE DinoVision Software Free DinoVision software is also available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important. StandsDino-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one above which are offered as optional items above.7000 Series Demonstration Video7000 Series Demonstration VideoWindows RT Demonstration VideoMicroscope The Dino-Lite Premier AM7013MZT4 digital handheld microscope offers relatively high 400x-470x magnification. The microscope also features 5.0 Megapixel vivid color resolution, polarized light, measuring software, a Microtouch image capture button and a tough aluminum housing for harsher operating environments. With eight built-in white LEDs, there are three polarized light settings: Full On, Half On and Off. The microscope is PC, MAC and UVC compatible. In addition, via Windows RT, the AM7013MZTS is tablet compatible for a mobile solution.Microscope Features400-470x Zoom magnification 5.0MP ResolutionAluminum alloy casingPolarizing Light to reduce glareWindows RT tablet-compatiblePC, MAC and UVC compatibleMicrotouch Image Capture8 White LED on/off illumination 2 Year warrantyOptional WiFi adapter for iPad & AndroidAccessories: Software CD, Calibration Slide, Carry Pouch SoftwareDino-Lite includes software for both PC (DinoCapture 2.0) and Mac (DinoXcope) computers. PC software is compatible through Windows 8 and Mac through OSX 10.5 and later. We have found the software to be robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.FREE DinoVision Software Free DinoVision software is also available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important. StandsDino-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one above which are offered as optional items above.7000 Series Demonstration Video7000 Series Demonstration VideoWindows RT Demonstration VideoMicroscope The AM7915MZTL is the newly-introduced, long-working-distance flagship of the Edge series lineup, with 5x-140x continuous zoom magnification, Extended Depth of Field, Extended Dynamic Range and Automatic Magnification Readout. This new model also showcases Flexible-LED-Controlled illumination. From within the software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels of intensity adjustment capability. Standard features include 5.0 MP resolution, adjustable polarized light and a tough aluminum shell for harsh operating environments. The AM7915MZTL also includes measuring ability and the useful MicroTouch image capture button, magnification scroll lock and USB 2.0 output. Still and live video capture is standard. The new sensor offers greatly enhanced image quality and sharpness with less aberration and vignetting while another innovation is adjustable illumination. All Edge Series microscopes include six interchangeable nozzle caps for greater flexibility including: open cap, dust cap, diffuser cap, Extended Working Distance cap, oblique lighting cap and contact cap. The microscope is PC-only, with included measuring software and a 2 year warranty. Microscope Features State-of-the-art 5.0MP color imaging sensorExtended Depth of Field for vertical imagingExtended Dynamic Range for reduced-glare imagingAutomatic Magnification Readout5x-140x full-range zoom magnificationFlexible-LED-Control (FLC)Built-in adjustable polarization ringAluminum alloy casing for industrial protectionNot Mac CompatibleUSB 2.0Recommended for professional use2 Year WarrantyAccessories: Software CD, Calibration Slide, Interchangeable Nozzles, Carry PouchStandsDino-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one above which are offered as optional items above.SoftwareThis Dino-Lite microscope includes software for PC only (DinoCapture 2.0) and is compatible through the latest version of Windows. The software is robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance.FREE DinoVision Software There is also additional, free software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important. Dino-Lite Edge AM7915 Series HighlightsDino-Lite 5.0MP Edge SeriesThe MSRK-10A table top platform stand combines a versatile 7-inch horizontal boom arm and a precision-focusing, 8-inch tall vertical adjustment for sharp, clean images. The RK-10A also features a quick-release mechanism within the machined vernier focus block that offers vertical re-positioning at the the touch of a button. Push the button in and slide the arm up or down to the desired height, then release the button, focus the microscope thumb wheel and fine-tune with the vertical knob for a sharp, clean image. An included safety collar offers a secure reference point for repeated observations at the same magnification level.The boom arm can rotate 360 degrees within the focus block, permitting the microscope to view vertically, horizontally, or any angle in between. The horizontal arm offers 115mm of lateral movement and the vertical post allows 148mm of height adjustment. An included 130mm extension bar offers yet additional reach for imaging large subjects like PC motherboards, paper samples and other items. The stand is constructed of durable and lightweight machined aluminum with a stain-resistant finish, making it an ideal choice for lab work, pcb inspections and industrial assembly line quality check stations.For added versatility, the MSRK-10A can be easily paired with the new Dino Lite MS15X XY+R Base with Removable Rotating Table which allows you to move a specimen on both the X and Y axis as well as rotate it 360 degrees in a steady, controlled manner.Accessories: Stand, Extension Arm, HD-P1 holster.Dino-Lite Demonstration Video
    Feed - Custom Label 1 <100<100100-500<100
