Dino-Lite N3C-A Edge Series Coaxial Illuminator Cap

Our Price: $109.00

$ 109.00


Availability: In stock

  • Ideal for shallow bore-scope and void inspections
  • Strong, focused coaxial illumination
  • Working distance is reduced by 5mm
  • Convenient, portable and easy to use

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

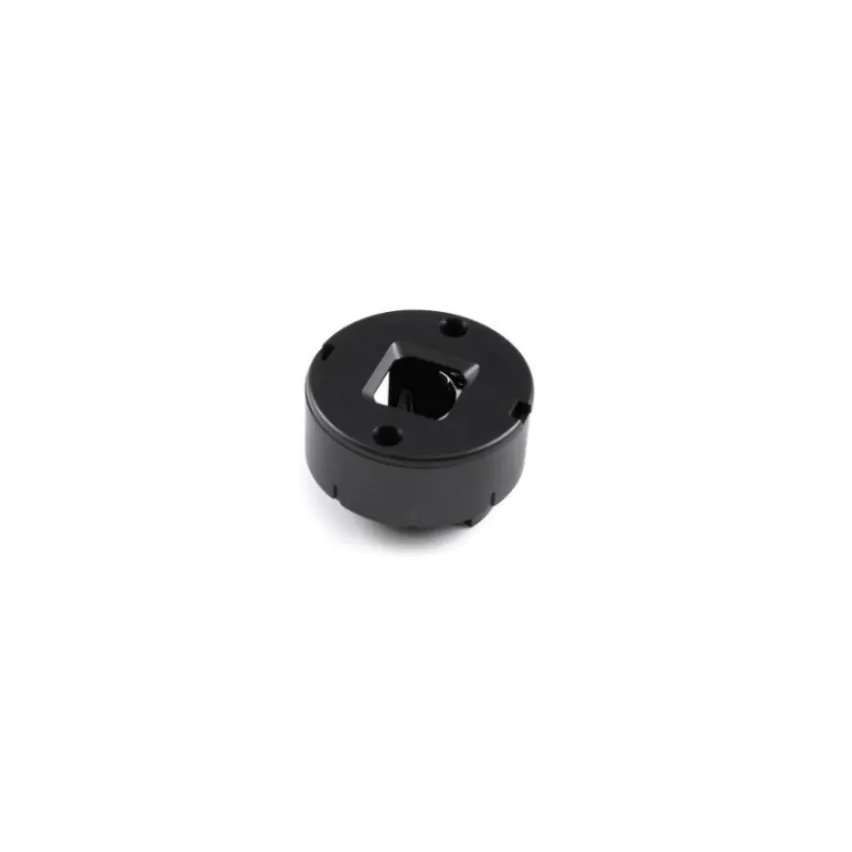

  • N3C-A Edge Series Coaxial Illuminator Cap

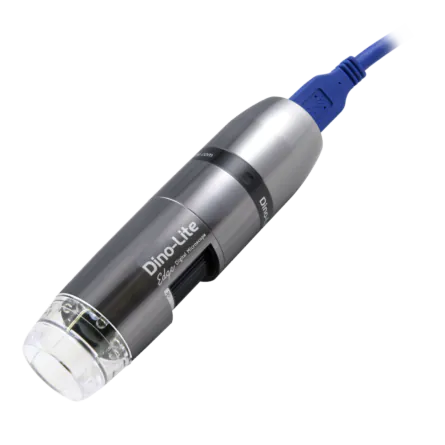

  • N3C-A Edge Series Coaxial Illuminator Cap mounted


The N3C-A Coaxial Light cap creates coaxial illumination for Dino-Lite Edge series handheld digital microscopes. The coaxial light beam is formed by using a beam-splitting mirror to collect and focus the light rays into a single powerful beam. Note: This cap will reduce working distance by 5mm and the higher magnifications may not be attainable.
0 0

N3C-A Edge Series Coaxial Illuminator Cap
Brand Dino-Lite
Short Description
  • Ideal for shallow bore-scope and void inspections
  • Strong, focused coaxial illumination
  • Working distance is reduced by 5mm
  • Convenient, portable and easy to use
