Dino-Lite Premier AM4113TL-M40 1X-37X Digital Microscope

$ 449.00

Starting at: $449.00

SKU: TMS-AM4113TL-M40

Availability: In stock

  • 1X-37X magnification for extended W.D.
  • 1.3 MP vivid color resolution
  • Microtouch image capture & Magnification scroll lock
  • Measuring software with calibration
  • PC/MAC and UVC compatible
  • Upgraded housing & USB cable
  • USB 2.0
  • 2 year warranty
  • Recommended for professional use

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Premier AM4113TL-M40 1X-37X LWD Handheld Digital Microscope   $449.00
  • $289.00
  • $29.00

Included in Bundle

Microscope: Premier AM4113TL-M40 1X-37X LWD Handheld Digital Microscope

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

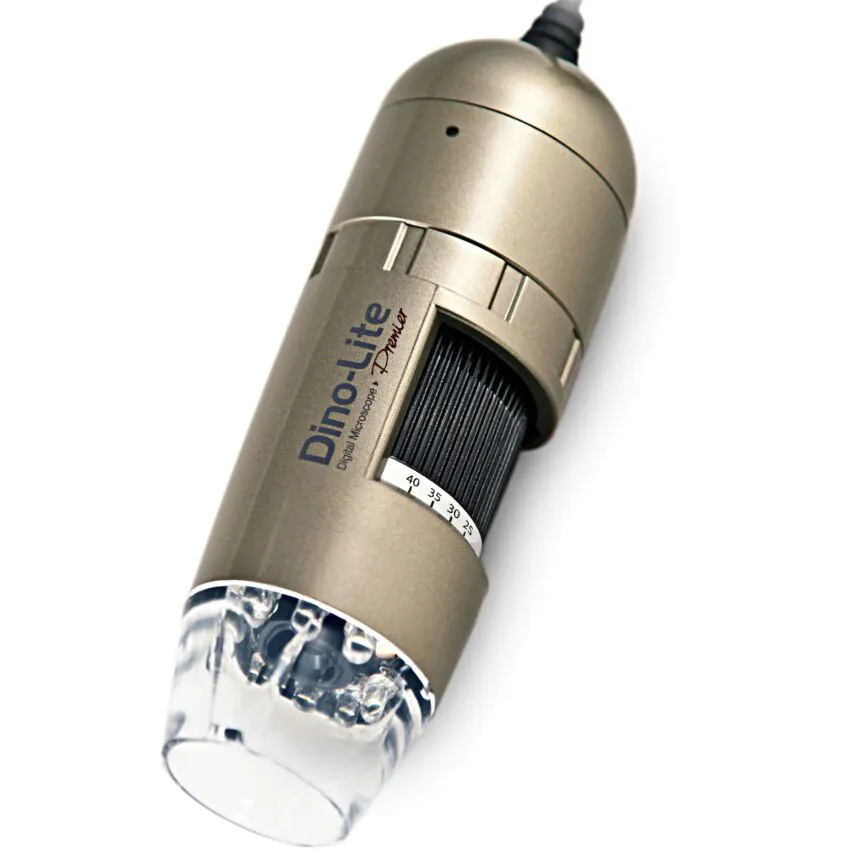

  • Dino-Lite AM4113TL-M40 digital microscope
  • Dino-Lite AM4113TL-M40 digital microscope side 1
  • Dino-Lite AM4113TL-M40 digital microscope side 2
  • Dino-Lite AM4113TL-M40 digital microscope side 3
  • Dino-Lite AM4113TL-M40 digital microscope side 4
Description

Microscope Summary

The 1.3 MP Dino-Lite Pro AM4113TL-M40 handheld digital microscope is a specialty microscope that offers 1X-37X variable magnification with wider field of view than the similar AD4113TL model. It is particularly useful where low levels of magnification are required. It includes an upgraded 1.3 megapixel sensor with vivid color resolution for both still and live video, convenient Microtouch image capture button, measuring software and polarized light to reduce the effects of glare from reflective surfaces. The polarizing feature has three settings: Half, Full or Off. Eight built-in LEDs with On/Off switch power illumination. The microscope also includes 2nd generation housing, a smoother focus wheel movement, magnification scroll lock and reinforced USB connection that resists twists and pulls. The magnification lock is particularly useful for repetitive inspection at a given level of magnification. The microscope is PC/Mac compatible and includes 2 year warranty. Optional stands are available and recommended.

Microscope Features

  • 1-37x Variable Magnification
  • Extended Working Distances
  • Polarizing Light
  • 1.3 MP vivid color resolution
  • Microtouch image capture
  • Live video (30fps) and time-lapse video
  • Eight built-in LED lights with On/Off switch
  • PC/Mac compatible measuring software
  • 2 year warranty
  • Accessories: Software CD, carry pouch, calibration slide

Software

Dino-Lite includes software for both PC (DinoCapture 2.0) and Mac (DinoXcope) computers. PC software is compatible through Windows 8 and Mac through OSX 10.5 and later. We have found the software to be robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.

FREE DinoVision Software

Free DinoVision software is also available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important.

Dino-Lite AM4113TL-M40 Demonstration Video

Mobile Scope Android App

The new Mobile Scope app for Android (Android 4.0 or higher, & Nexus 5, 7, 10) now allows this Dino-Lite microscope to connect directly to Android devices via convenient USB or micro-USB. Download the Mobile Scope app from the Google Play store and connect a compatible Dino-Lite device for fast live video streaming and image capture from anywhere. The $9.99 app includes a free trial evaluation period. Some devices may require a USB to micro-USB connector, available at most computer stores.

Mobile Scope Demo Video

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Premier AM4113TL-M40 1X-37X LWD Handheld Digital Microscope
    General
    Brand Dino-Lite
    SKU AM4113TL-M40
    Notes
    Product Weight 0.3500
    Product Length 4 in
    Product Width 1.26 in
    Dino-Lite
    Dino-Lite Series Premier, Medical
    Special Features Android USB Connect, Long Working Distance, Measuring, MicroTouch Trigger
    Body Material ABS Plastic
    Magnification Range 5X-40X
    Magnification Type Distance Variable
    Minimum Working Distance 2 Inches
    Illumination Type LED
    Illumination Output White Light
    Focus Controls Coarse
    Focus Mechanism Rotary
    Resolution 1.3 Megapixel, 1280x1024 pixels
    Camera Interface WiFi, USB 2.0
    Power Source USB Powered
    Head Type Digital Only
    Sensor Type CMOS
    FPS @ Max Res 15 fps
    FPS @ Min Res 30 fps
    Exposure Control Automatic, Manual
    White Balance Automatic, Manual
    Software Included DinoCapture (Win), DinoXcope (Mac)
    Driver API Compatibility DirectX
    File Formats BMP, JPEG, PNG
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.5+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, RoHS
    Cable Length 6 ft
    Camera Warranty 2 Years

  • WF-10 Mobile WiFi Adapter
    General
    Brand Dino-Lite
    SKU WF-10
    Feed - Title Dino-Lite WF-10 Mobile WiFi Adapter
    Feed - Description Microscope The Dino-Lite Edge AM4515ZT4 handheld digital microscope includes the new generation sensor with state-of-the-art design and 390X-475X magnification. It includes Automatic Magnification Readouts so that the magnification level is displayed in the Dino-Capture software. This allows users to repeatedly "dial in" to a desired magnification setting simply by moving the thumbwheel and monitoring the Magnification display in the software, making it ideal for quality inspection environments. High magnification requires a stand with MSRK-10A providing precise positioning. The optional MS15X-S1 rotating stage can add greater X-Y axis and rotational control.The AM4515ZT4 also incorporates 2nd-generation housing with smoother focus wheel movement, magnification scroll lock and reinforced USB connection that resists twists and pulls. The magnification lock is particularly useful for repetitive inspection at a given level of magnification.Microscope Features390x-475x Continuious Magnification1.3 MP vivid color resolutionMicrotouch image captureLive video (30fps) and time-lapse videoEight built-in LED lights with On/Off switchPC compatible measuring software2 year warrantyAccessories: Software CD, deluxe storage bag, calibration slide Software (PC-Only)For the AM4515ZT4, Dino-Lite includes software compatible only with Windows-based computers (XP/10). The software is robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.FREE DinoVision Software Free DinoVision software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important. Dino-Lite AM4515ZT - Edge SeriesMobile Scope Android AppThe new Mobile Scope app for Android (Android 4.0 or higher, & Nexus 5, 7, 10) now allows this Dino-Lite microscope to connect directly to Android devices via convenient USB or micro-USB. Download the Mobile Scope app from the Google Play store and connect a compatible Dino-Lite device for fast live video streaming and image capture from anywhere. The $9.99 app includes a free trial evaluation period. Some devices may require a USB to micro-USB connector, available at most computer stores.Mobile Scope Demo Video
    Feed - Custom Label 1 100-500

  • MSA2P Extension Pole for MS35B - MS36B
    General
    Brand Dino-Lite
    SKU MSA2P
    Feed - Title Dino-Lite MSA2P Extension Pole for MS35B - MS36B
    Feed - Description The new Dino-Lite Industrial Line AM7023CT-LH1 combines the popular AM7023CT 5.0MP color CMOS C-mount camera with a removable lens which captures large, detailed images ranging from 22X to 220X without a microscope. It retains a host of useful features, including 5.0 megapixel resolution and DinoCapture measuring software for both still and live imaging (video) direct to your computer. It now features a new 40-LED ring illuminator with variable intensity output control. All Dino-Eye cameras offer reliable, robust software, a calibration slide and the same excellent color resolution all Dino-Lite products have in common. This model also mates perfectly with the optional MS35T rigid tabletop stand with tripod mount. For a true mobile solution, Windows RT allows this Dino-Lite microscope to connect directly to Windows tablets via USB without additional downloads. Simply use built-in drivers and the native camera app to perform inspections or capture images and video anywhere. When using Windows RT this camera is limited to 3.1MP resolution image capture.CameraWhat sets this apart from other Dino-Lite cameras, is the stand-alone imaging capability offered by the zoom lens, coupled with exceptional working distance available, especially at higher magnifications. For example, at 180X the working distance is a generous 5 inches, and at 220X the working distance is 4.25 inches, making this an ideal tool for industrial pcb inspection and repair.To compliment the new camera, Dino-Lite has also introduced a new 40-LED ring illuminator and the MS35T, a new rigid stand featuring a tripod mount specifically designed for this camera system. The LED illuminator offers variable intensity, shadow-free illumination powered by an AC adapter. The stand (sold separately) can provide up to 7.5 inches of working distance. When operating at magnification levels below 100X, users will require an additional extension pole, optionally available. For specific magnification and working distance information, please click on the "Magnification" tab below.DinoScope Software,span>Dino-Lite USB 2.0 software is compatible with both PC (DinoCapture 2.0) and Mac (DinoXcope) computers although currently, the touch trigger mechanism is not enabled for Macintosh computers. We have found the software to be robust and reliable. It enables image capture, video and time lapse video while measuring capabilities include linear and geometric as well as circular and point-to-line.Notations can be added and edited. You can capture an image by clicking in the easy-to-use software or, on T models, simply tap the button on the housing. It is worth noting that the color resolution is excellent due to the fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, the software enables frame import or export, notations and output to BMP and JPG.FREE DinoVision Software There is also additional, FREE software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important.Package includes camera, software CD and camera lens. MS35T stand sold separately.Industrial Line Demonstration VideoWindows RT Demonstration VideoMobile Scope Android AppThe new Mobile Scope app for Android (Android 4.0 or higher, & Nexus 5, 7, 10) now allows this Dino-Lite microscope to connect directly to Android devices via convenient USB or micro-USB. Download the Mobile Scope app from the Google Play store and connect a compatible Dino-Lite device for fast live video streaming and image capture from anywhere. The $9.99 app includes a free trial evaluation period. Some devices may require a USB to micro-USB connector, available at most computer stores.Mobile Scope Demo Video
    Feed - Custom Label 1 <100
Magnification Chart
AM4113TL-M40
 MAG 5X 10X 15X 20X 25X

30X

35X

 WD (mm)  420 mm 228 mm 115 mm 73 mm 66 mm 50 mm 40 mm
 FOV (mm) 95 x 60  38 x 31  30 x 20  19.5 x 15.6  17 x 12  13 x 10.4 10 x 8
 WD (inch)  16.5 in 9 in 4.5 in 2.9 in 2.6 in 1.9 in 1.6 in
 FOV (inch)  3.6 x 2.2  2.6 x 2.0  1.2 x 0.7  0.8 x 0.6  0.7 x 0.4  0.5 x 0.4  0.4 x 0.3
 DOF (mm)   ~ 12 mm ~ 8 mm ~ 6 mm ~ 4.5 mm ~ 3.4 mm ~ 2.3 mm
