Meiji Techno PKL-2 Pole Stand

List Price: $950.00

Our Price: $845.00

$ 845.00

SKU: PKL-2

Availability: In stock

  • Ergonomic pole stand
  • Integrated dual 5W LED illumination
  • White diffuser plate and clear glass stage plate
  • Rack and pinion movement with safety clutch
  • Lifetime Limited Warranty
Learn More
Add to cart

Add to Wishlist

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

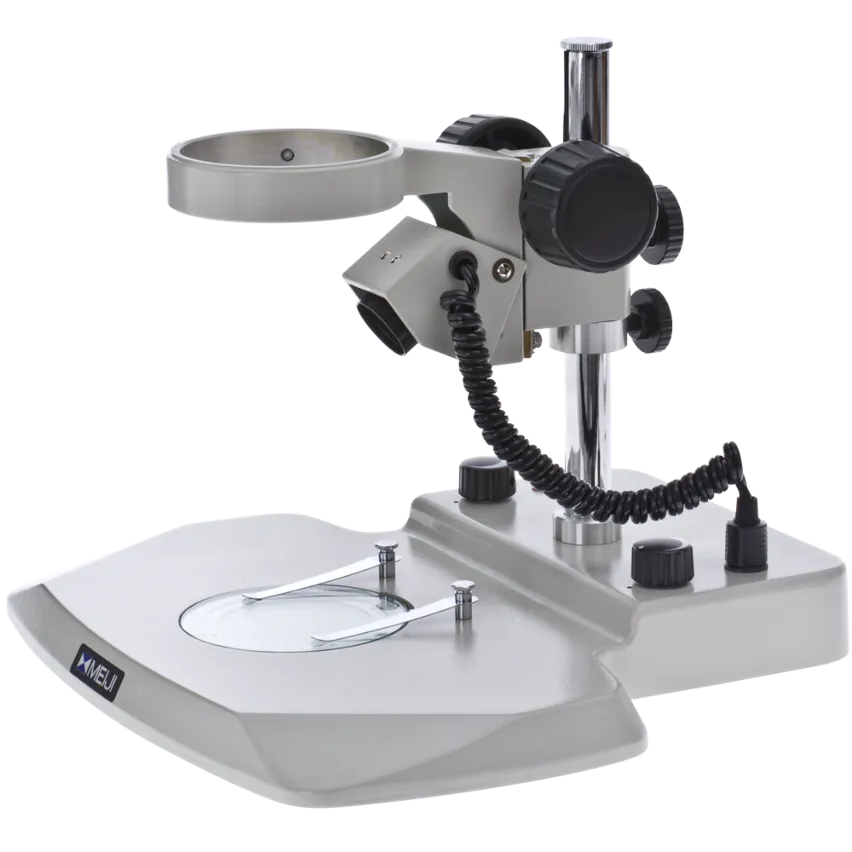

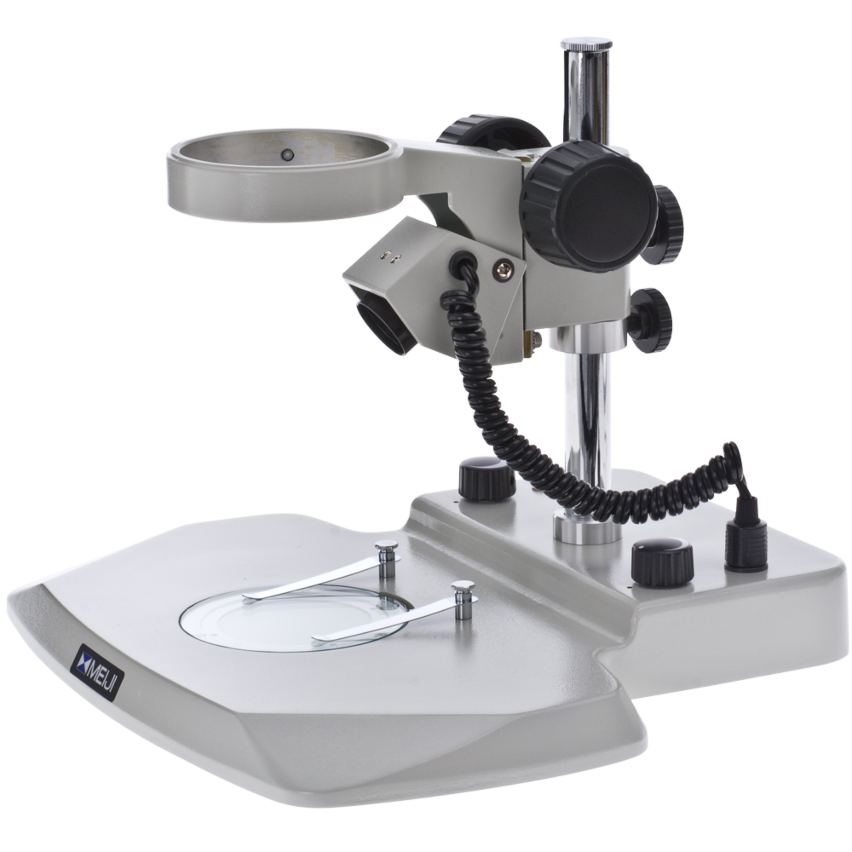

  • Meiji PKL-2 Stereo Microscope Pole Stand
  • Stage view - Meiji PKL-2 Stereo Microscope Pole Stand
  • Control view - Meiji PKL-2 Stereo Microscope Pole Stand

You May Also Like:

Description

The Model PKL-2 pole stand is one of our favorites. Well-designed with dual LED illumination, it is comfortable to use with beveled corners and a pleasing design. The transmitted light uses an extremely bright white LED array with integrated diffusion plate providing excellent dispersion of light without hot spots caused by LED elements. The incident illuminators on the PKL-2 are powerful LED's on an adjustable pivot providing a luminescent type light with a brighter color temperature than halogen. The LED beam is a perfectly round focused spot which can be adjusted for height and specimen. Universal voltage sensor 110V-220V.

Optional accessories include analyzer/polarizer for transmitted light pol work, white/black stage plate, 4" pole extension, and mechanical stages. Base

Base dimensions: 330mm (12.99”) wide x 280mm (11”) deep (For use with all EM stereo bodies)

0 0
Specifications

PKL-2 Pole Stand
General
Brand Meiji Techno
SKU PKL-2
Short Description
  • Ergonomic pole stand
  • Integrated dual 5W LED illumination
  • White diffuser plate and clear glass stage plate
  • Rack and pinion movement with safety clutch
  • Lifetime Limited Warranty
Feed - Title Meiji Techno PKL-2 Pole Stand
Feed - Description The Meiji EMZ5-PKL2 is a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the popular PKL-2 pole stand with integrated LED illumination. The microscope offers 7x-45x zoom magnification with 10x eyepieces although you have a choice of eyepieces. Limited Lifetime Warranty.Microscope Head The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
Feed - Custom Label 1 500-1000
Stand
Stand Class Pedestal
Stand Type Pole
Stage Plate Clear Glass, Frosted Glass
Post Diameter 20 mm
If FB Mounts Direct
Focus Block Mount Diameter 20 mm
If FB Integrated
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Head Ring Mount Diameter 84 mm
Product Manuals
  • Meiji PKL Series Stereo Microscope Manual: Download PDF [231k]
