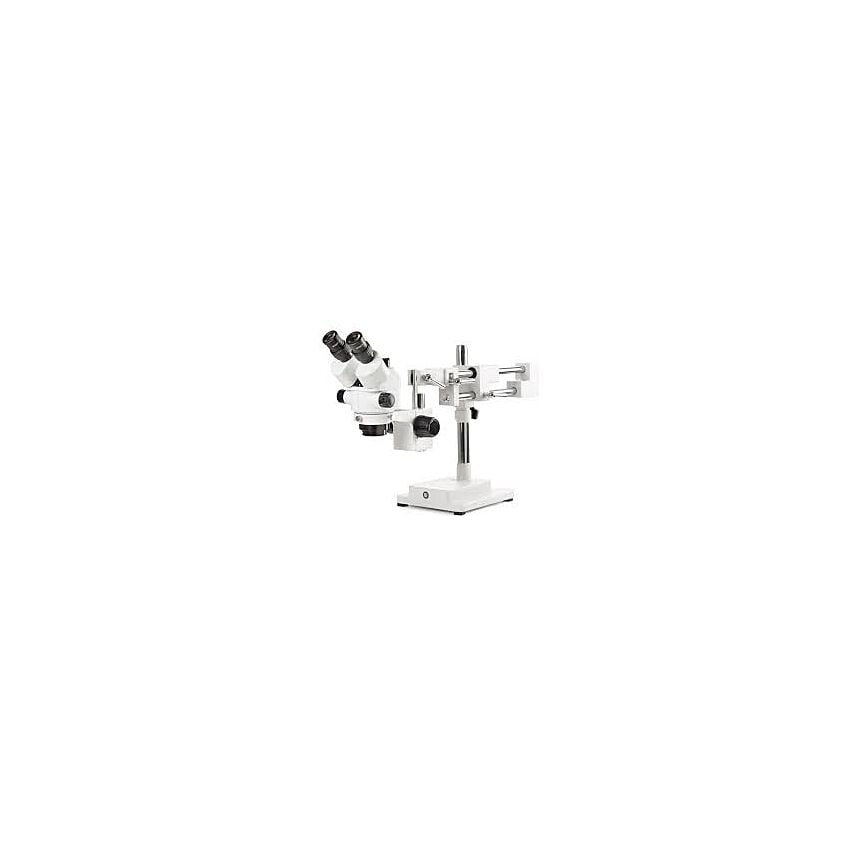

Euromex SB.1903-B Trinocular Stereo Zoom Microscope (7x to 45x) - Double Arm Stand, No Light
- Professional Versatility: Engineered by Euromex in the Netherlands for demanding applications in laboratory research, industrial engineering, and precision jewelry work.
- High-Performance Optics: Features a parfocal zoom objective (0.7x to 4.5x) providing a total magnification range of 7.5x to 45x with anti-fungus and anti-reflection coated lenses.
- Trinocular Imaging Head: Designed with a 45° inclined trinocular head, allowing for the seamless integration of a digital camera for professional documentation and analysis.
- Enhanced Stability & Reach: Mounted on a heavy-duty double boom arm stand, providing an expansive workspace and 100mm working distance for inspecting large or irregular specimens.
- Precision Ergonomics: Includes WF 10x/20 mm eyepieces with dual ±5 diopter adjustment and adjustable interpupillary distance (55mm–75mm) to minimize eye strain during extended use.
- Reliable Warranty: Built for longevity with a robust industrial construction, backed by a comprehensive 5-year warranty (2 years for electrical components).
Euromex StereoBlue SB.1903-B: High-Precision Trinocular Zoom Microscope
The StereoBlue SB.1903-B from Euromex (Netherlands) is a professional-grade stereo microscope engineered for industrial inspection, laboratory research, and advanced education. This specific configuration features a trinocular head for seamless digital camera integration and a heavy-duty double boom arm stand, providing the ultimate flexibility for viewing large samples or assembly work.
With a parfocal zoom range of 7x to 45x, users can transition smoothly through magnifications without losing focus. Whether you are a mechanical engineer, dental technician, or jeweler, the StereoBlue series offers the robust construction and optical clarity required for high-detail tasks.
Superior Optics & Versatile Mechanics
- Parfocal Zoom Objective: A 0.7x to 4.5x zoom range ensures the image remains in focus when changing magnification.
- Double Boom Arm Stand: Provides an expansive reach and smooth horizontal movement, perfect for inspecting large circuit boards or geological specimens.
- Trinocular Camera Port: Features 45° inclined tubes and a dedicated vertical port for fitting digital cameras (C-mount adapters available separately).
- Professional Coatings: All lenses are anti-fungus treated and anti-reflection coated to maximize light throughput and image contrast.
Optical Data & Magnification Range
Customize your field of view and working distance by utilizing optional auxiliary lenses. The standard configuration provides a generous 100mm working distance.
| Objective Lens | 1.0x (Standard) | 0.5x (Optional) | 0.75x (Optional) | 1.5x (Optional) |
|---|---|---|---|---|
| Zoom Range | 7x - 45x | 3.5x - 22.5x | 5.3x - 33.8x | 10.5x - 67.5x |
| Working Distance | 100 mm | 170 mm | 114 mm | 48 mm |
| Max Field of View | 30 mm | 59.9 mm | 40.0 mm | 19.9 mm |
Key Specifications
- Head: Trinocular, 45° inclined, 360° rotating.
- Eyepieces: WF 10x/20 mm with adjustable eyecups; ± 5 diopter adjustment on both tubes.
- Interpupillary Distance: Adjustable 55 mm to 75 mm.
- Focusing: Double boom arm with coarse focus (21mm stroke).
- Weight: 15.4 kg (Solid, vibration-dampening frame).
- Warranty: 5-Year Limited Manufacturer Warranty.
Illumination Note: This boom arm model does not include built-in lighting to allow for maximum customization. We highly recommend adding an LED Ring Light or Fiber Optic Cold Light Source from our Accessories tab for optimal results.
What's in the Box?
Standard package includes the SB.1903-B Microscope, power cord, dust cover, eyecups, spare fuse, 60mm transparent and black/white stage plates, and user manual.
Need Help With a Camera or Lighting Setup?
Our technical team can help you select the right C-mount adapter and ring light for your specific application.
