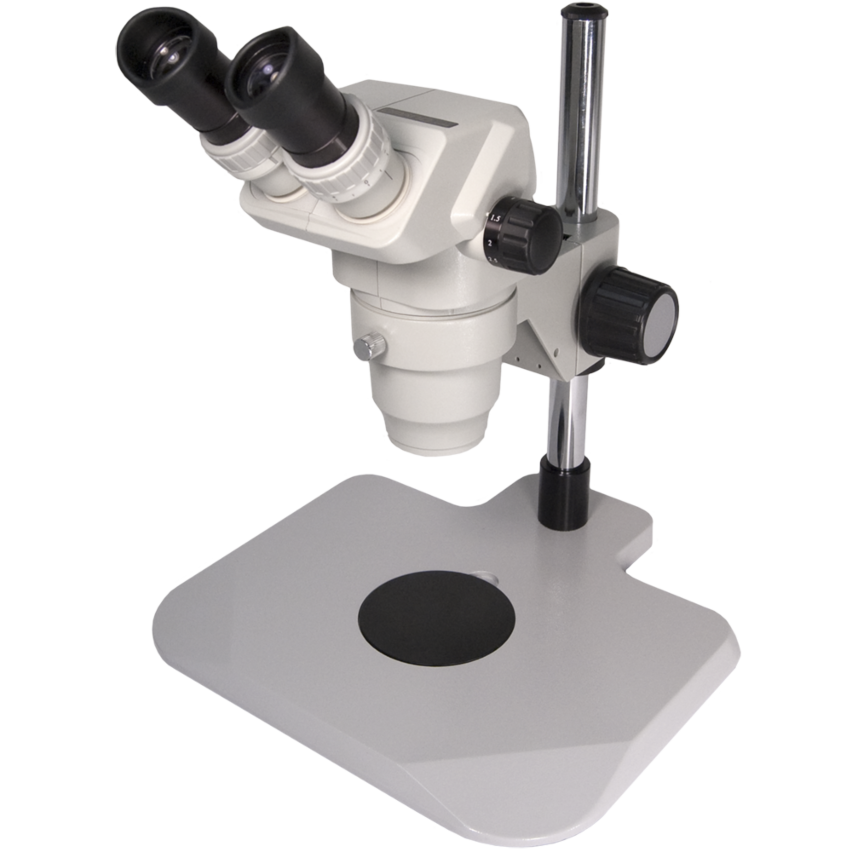

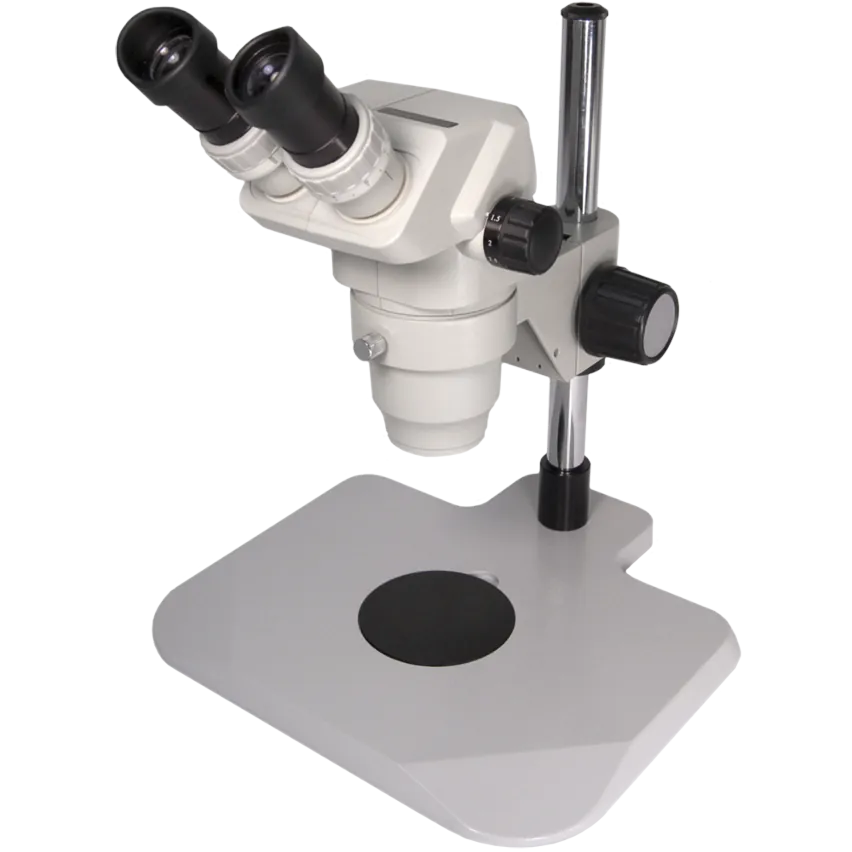

Omano OM99-V3 Zoom Stereo Microscope

List Price: $1,504.00

Starting at: $818.00

SKU: OM99-V3

Availability: In stock

  • Superb optical quality with ergonomic V3 pole stand
  • Premium 6x-45x zoom range
  • Binocular or trinocular
  • Super WF10x eyepieces
  • Ergonomic V3 platform stand
  • Included ring light
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

OMFB99V3 Focus Block for V3 Base, 76mm Ring   $60.00
V3 Pole Stand   $130.00
  • $85.00
  • $85.00
  • $85.00
  • $85.00
  • $55.00
  • $55.00
  • $55.00
  • $120.00
  • $120.00
  • $120.00
  • $139.00
  • $209.00
  • $239.00
  • $499.00
  • $659.00
  • $299.00
  • $109.00

Included in Bundle

Focus Block: OMFB99V3 Focus Block for V3 Base, 76mm Ring

Stand: V3 Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano 99-V3 Zoom Stereo Microscope
  • OM99 Zoom Stereo Microscope Head
  • OM99T-V3 Zoom Trinocular Stereo Microscope
  • Omano 99-V3 Zoom Stereo Microscope focus block
  • Optional Camera System
Description

Summary

The OM99-V3 combines our premium OM99 microscope head with the ergonomic V3 platform stand for a microscope with crisp optics and a tall pole for extra working distance. The magnification range is 6.5x-45x with included Super WF10x eyepieces and eyecups, ring light and Lifetime Limited Warranty.

Optics

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included.

Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. Working distance is 31/4" and more than doubles to over 6" with the addition of a 0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x. Available in binocular or trinocular format which includes a 23mm smooth eyepiece adapter. Both versions are optionally available with click-stop detents for precise zoom observations. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece.

Focus & illumination

Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED when adding the microscope to your shopping cart.

Stand

The Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included.

Accessories

Ring light, eyecups, dust cover, manual

Specifications

  • OMFB99V3 Focus Block for V3 Base, 76mm Ring
    SKU OMFB99V3
    Focus Block
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Focus Block Mount Diameter 25 mm
    Head Ring Mount Diameter 76 mm

  • V3 Pole Stand
    SKU V3t
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stand Features Beveled Base
    Stage Plate Black/White Contrast Plate
    Base Width 318 mm
    Base Depth 305 mm
    Post Height 345 mm
    Post Diameter 25 mm
    Compatibility
    Focus Block Mount Diameter 25 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP8W LED Dual Gooseneck Light

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP8WOMLED-DP6W
    Warranty 1 year  1 year1 year
    Product Weight 1lb  3.1 lbs4.0 lbs
    Product Length  16 cm31.0 cm
    Product Width  10 cm29.0 cm
    Product Height  8 cm17.5 cm
    Power Supply  90V-265V
    Product Display
    New  Yes
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLED LED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching 3W x 2
    Ring Light Power 8W   6W
    Ring Light Control VariableVariableVariable Variable

  • 0.5X Barlow Lens For Omano OM99/XTL, WD=163mm

    0.75X Barlow Lens For Omano OM99/XTL, WD=117mm

    1.0X Protective Barlow For Omano OM99/XTL

    2.0X Barlow Lens For Omano OM99/XTL, WD=40mm
    SKU OMBL-99-05XOMBL-99-075XOMBL-99-10XOMBL-99-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.5X0.75X1.0X2.0X

  • Reticle, 25mm Linear

    Reticle, 25mm Grid

    Reticle, 25mm Cross Linear
    SKU OMR-25LOMR-25GOMR-25CL
    Notes For OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300S

  • 15X Eyepiece For OM99 (Single)

    20X Eyepiece For OM99, OM139 (Single)

    25X Eyepiece For OM99 (Single)
    SKU OMEP-99-15XOMEP-99-20XOMEP-99-25X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Priced per EyepiecePriced per PairPriced per Pair
    Compatibility
    Compatible With OM99, OM99TOM99, OM99T, OM139, OM139TOM99, OM99T
    Eyepiece Magnification 15x20x25x

  • Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera

    OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

    OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera
    SKU OCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14XOCS-HDMI-1080PUOCS-HDMI-1
    Warranty 1 Year1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.00002.0000
    Backorder ETA  Sep 29, 2017
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/2 Inch1/3 Inch1/3 Inch1/3 Inch1/2.5 Inch1/3 Inch
    Sensor Details Aptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOSSONY IMX236Aptina AR0330 CMOS Sensor
    Color/Monochrome ColorColorColorColorColorColor
    Pixel Pitch 3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm2.8um x 2.8um2.2um x 2.2um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 43 db40.5 db34 db35.5 db 39 dB
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm) 1.4v/lux-sec(550nm)
    Dynamic Range 61db66.5db65.2db63.5db 69.5 dB
    A/D Conversion 12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC 12-bit Parallel, 8-bit R.G.B
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-MountC-Mount
    Resolution 3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels2.0 megapixels2.0 megapixels
    Camera Output Resolutions 2048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822 1920X1080i60,1920X1080P30,1280x720P60,640x480P60
    FPS @ Max Res [email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 328860 @ 1920 x 108030 Fps
    FPS @ Min Res 43fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822 60 FPS
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0, HDMISD Card, USB 2.0, HDMI
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectXDirectX
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredExternal Power SupplyExternal Power Supply
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMPJPEG, MOV
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomaticAutomatic, Manual
    Exposure Time 2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual0.1ms - 999s0.21~33ms, Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C20-60 Deg. C0℃~ 40℃
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30-80% RH30~80%RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C -20℃~ 60℃
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+N/A, Windows 10, Windows 8, Windows 7
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended
    Certifications CE, ULCE, ULCE, ULCE, ULCECE
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)2.5m (8ft)2.5m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-MountC-MountC-Mount

  • C-Mount Adapter 0.5X for Omano OM99-T
    SKU OMCM-99-05X
    Warranty Omano Limited Lifetime Warranty
    Notes Does not fit Binocular
    Compatible With OM99T
Magnification Chart

Eyepiece

Standard Configuration

Omano OM99

Auxiliary Barlow Lens

0.4X

0.5X

0.75X

2.0X

Working distance 100mm

Working distance 298mm

Working distance 163mm

Working distance 117mm

Working distance 40mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X

6.5x-45x

33.8 - 4.9

2.6-18.0x

67.7-9.8

3.3x-22.5x

67.7-9.8

4.9x-33.8x

45.1-6.5

13x-90x 16.9-2.5

15X

9.8x-67.5x

24.6-3.5

3.9-27.0x

49.2-7.0

4.9x-33.8x

49.2-7.0

7.3x-50.6x

32.8-4.7

19.5x-135x  12.3-1.8

20X

13x-90x

20.0-2.9

5.2-36.0x

40.5-5.8

6.5x-45x

40.5-5.8

9.75x-67.5x

26.6-3.8

26x-180x 10.0-1.4

 25x

 16.3x-112.5x 18.5-2.6  6.5-45.0x 37.0-5.2  8.1x-56.3x

37.0-5.2 12.2x-84.4x 24.6-3.5

32.5x-225x  9.2-1.3
