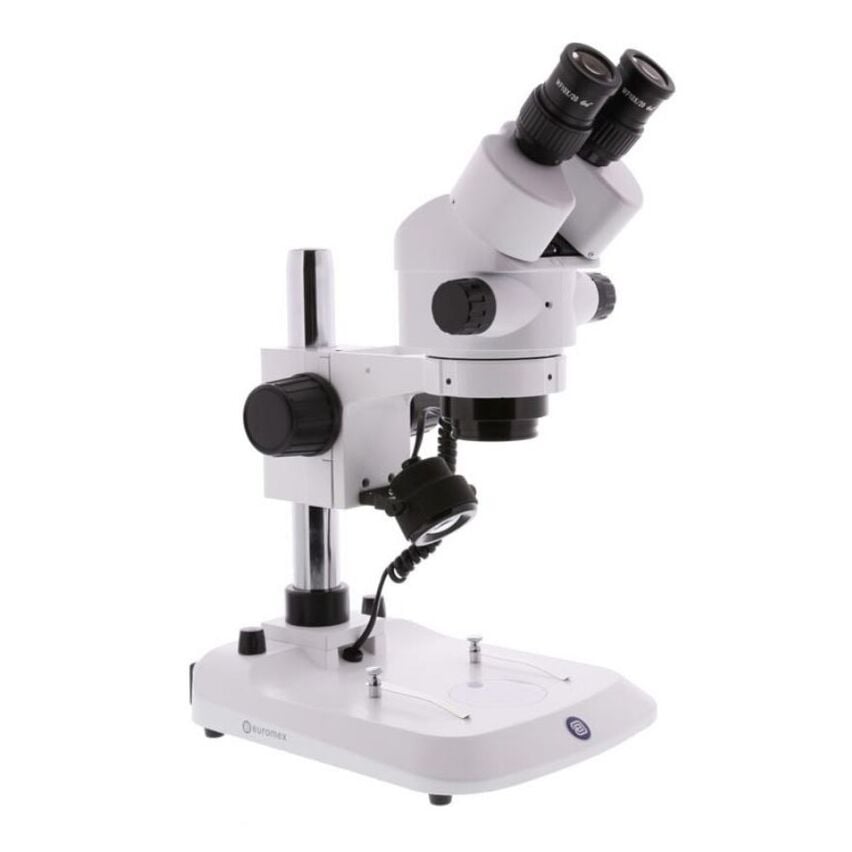

Euromex StereoBlue Binocular Zoom Microscope (7x-45x) - SB.1902-P

SKU:

ESB.1902‑P

In stock

You pay: $700.00

Free Shipping,

30 Day Money Back Guarantee

High-Performance Zoom Optics: Features a 0.7x to 4.5x zoom objective, providing a continuous magnification range of 7x to 45x with a generous 100 mm working distance.
Ergonomic Binocular Viewing: Designed with 45° inclined tubes and 360° rotation, including WF10x/20 mm wide-field eyepieces and adjustable diopters for comfortable, long-term use.
Dual LED Illumination: Equipped with independent 3W reflected and transmitted LED lighting; both light sources are intensity-adjustable and can be used simultaneously for complex samples.
Robust Pillar Stand: Constructed from cast aluminum with a durable baked enamel finish, featuring a large rack-and-pinion tripod and rotary resistance control for precise focusing.
Expandable System: Compatible with optional WF 5x, 15x, or 20x eyepieces and auxiliary lenses (0.75x or 1.5x) to customize magnification and field of view for specific laboratory needs.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

Euromex StereoBlue SB.1902-P: Professional 7x-45x Zoom Stereo Microscope

The Euromex StereoBlue SB.1902-P is a high-performance Greenough-style stereo microscope designed for the most demanding applications in education, industry, and mineralogy. Built on a stable pillar stand, this binocular zoom microscope offers a seamless magnification range from 7x to 45x, providing the depth of field and high-resolution imaging required for detailed inspection and parasite analysis.

Constructed from cast aluminum with a durable baked enamel finish, the StereoBlue series combines ergonomic design with robust Japanese-standard optics to ensure a relaxed hand position and maximum efficiency during extended laboratory sessions.

Precision Greenough Optics & Versatile Zoom

Continuous Zoom Range: 0.7x to 4.5x zoom objective allows for magnifications from 7x to 45x with a wide field of view (up to 28.5 mm).
Optical System: Professional Greenough system ensures excellent 3D imaging and a generous 100 mm working distance.
Comfortable Viewing: Binocular tube inclined at 45° and rotatable 360° with adjustable diopter and eye relief (55 mm to 75 mm).
Expandable Magnification: Achieve higher magnifications or different working distances with optional WF 5x, 15x, or 20x eyepieces and auxiliary lenses.

Technical Specifications

Optical Performance
Eyepieces	WF 10x/20 mm Wide Field with eyecups
Zoom Objective	0.7x to 4.5x (Ratio 1:6.4)
Working Distance	100 mm (Standard)
Stand & Illumination
Stand Type	Large Rack & Pinion Pillar Stand with Baked Enamel Finish
Illumination	Dual 3W LED (Incident & Transmitted) separately adjustable
Adjustments	Coarse adjustment with rotary resistance control
Physical Dimensions
Weight	4.4 kg (9.7 lbs)
Dimensions	340mm (H) x 219mm (W) x 266mm (L)

Multi-Disciplinary Applications

The StereoBlue series is a versatile workhorse, trusted across various fields including:

Industry & Metallurgy: Perfect for small component assembly and quality control.
Science & Medicine: Widely used in Veterinary medicine for parasite analysis and mineralogy for specimen identification.
Makers & Hobbyists: An excellent tool for micro-soldering, jewelry work, and detailed fabrication.
