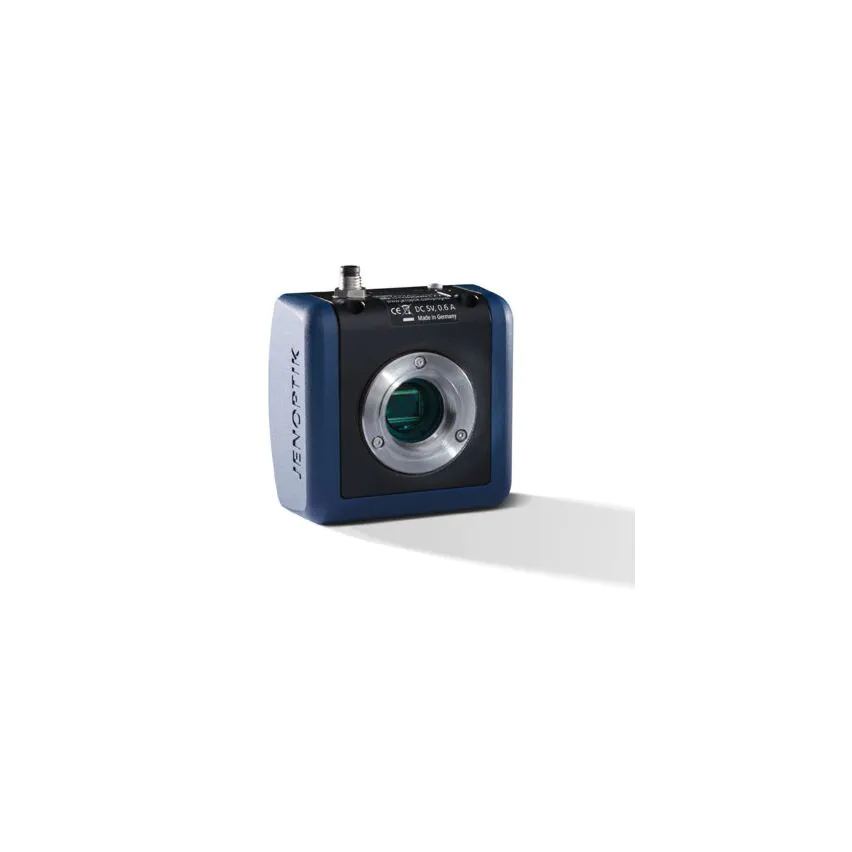

Jenoptik ProgRes Gryphax Subra 2.0 MP HD CMOS Color Digital Microscope Camera

Our Price: $3,175.00

SKU: PR-Subra

Availability: In stock

  • 2.0 MP color CMOS camera with 2/3" sensor
  • Win, Mac & Linux compatible
  • Near perfect color reproduction
  • Fast (30 FPS) refresh rates, live imaging
  • High speed USB 3.0 Output
  • Standard C-Mount Interface
  • Legendary German engineering

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Gryphax Subra 2.0 MP HD CMOS Color Digital Microscope Camer
Description

Summary

New from Jenoptik, the Gryphax series Subra is a 2.0 megapixel CMOS microscope camera with USB 3.0 output for rapid, HD quality video and image data transfer. Pixel size is 5.5µm x 5.5µm with maximum resolution of 2048 x 1024 pixels (2.0MP).

Subra HD Series

The Subra series is designed for versatility and cost-effectiveness, offering high quality color CMOS sensors for perfect color reproduction and USB 3.0 output yields fast live imaging of up to 30 frames per second at 2.0MP resolution. They operate fluidly in all light and contrast conditions. Includes camera, Progres Gryphax software, USB 3.0 cable, instruction manual.

Gryphax Software

Available in the full line of Gryphax digital microscope cameras, the Gryphax software delivers optimal image quality and accurate calibration and measurements. The Windows, MAC and Linux-compatible software features a suite of productivity-enhancing tools to meet the demands of scientific research and documentation.

Specifications

Gryphax Subra 2.0 MP HD CMOS Color Digital Microscope Camera
General
SKU PR-Subra
Short Description
  • 2.0 MP color CMOS camera with 2/3" sensor
  • Win, Mac & Linux compatible
  • Near perfect color reproduction
  • Fast (30 FPS) refresh rates, live imaging
  • High speed USB 3.0 Output
  • Standard C-Mount Interface
  • Legendary German engineering
Notes
Product Weight 1.6000
Product Length 89 mm
Product Width 84 mm
Product Height 93 mm
Sensor
Sensor Type CMOS
Sensor Size 2/3 Inch
Color/Monochrome Color
Pixel Pitch 5.5 µm
Scan Mode Progressive
Sensitivity 13.5 e-
Dynamic Range 56 dB
A/D Conversion 12 bit
Shutter Global Shutter
Camera
Camera Mount C-Mount
Camera Output Resolutions Full HD 1920 x 1080 pixel up to 2048 x 1084 pixel
FPS @ Max Res 30 FPS
FPS @ Min Res
Camera Interface USB 3.0
White Balance Area-of-Interest, Automatic, Manual, Spot
Black Balance Dark Frame Correction, Manual, Spot
Software Included GRYPHAX
Driver API Compatibility TWAIN
Power Source USB Powered
Exposure Control Area-of-Interest, Automatic, Manual, Spot
Exposure Time 52 µs – 2 s
Other Details
Included Accessories Progres Gryphax software, USB 3.0 cable, instruction manual.
Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3, Mac OSX 10.5+, Mac OSX 10.6+, Mac OSX 10.7+, Linux (kernel 2.6.26+)
System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
Certifications CE, RoHS, UL
Compatibility
Imaging Compatibility (with adapters) C-Mount
