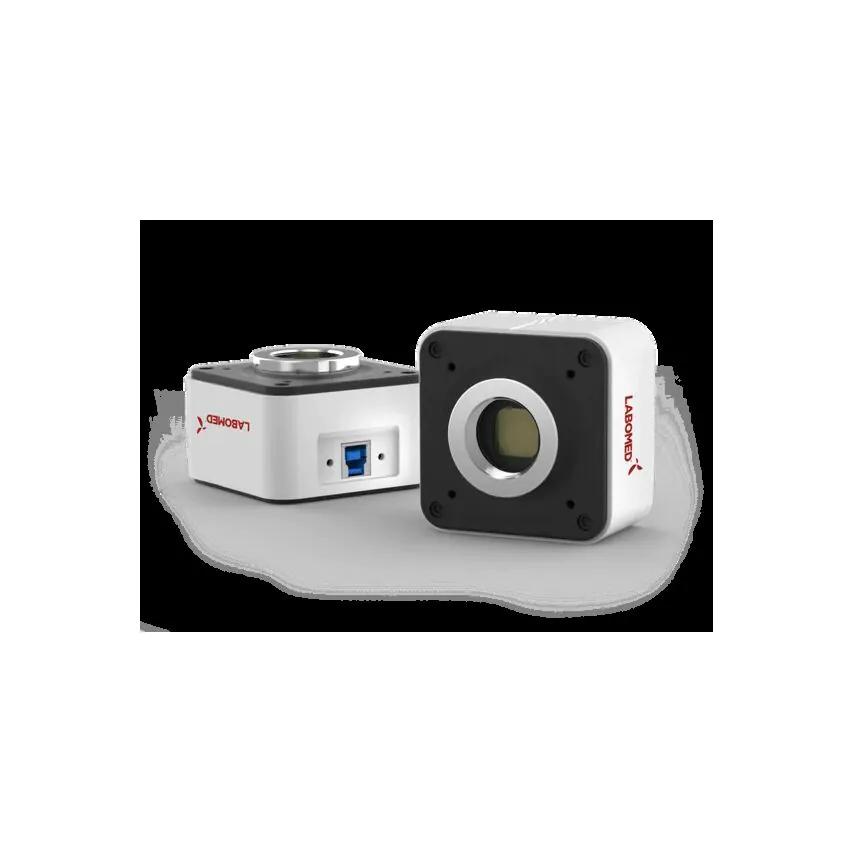

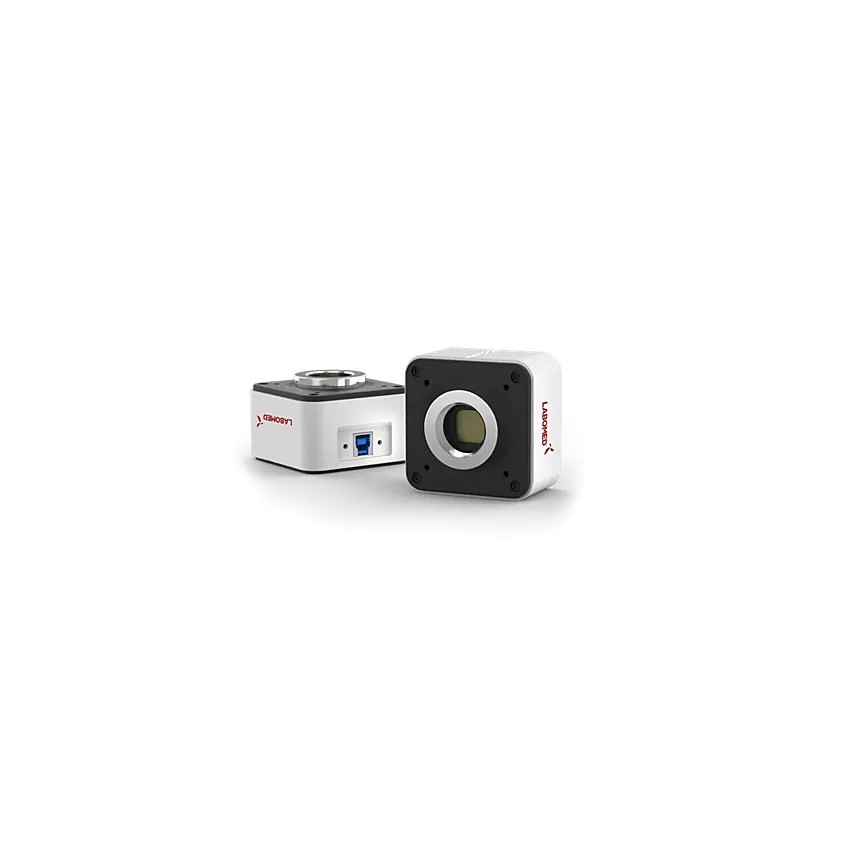

Labomed 3146100 Atlas 16MP Cmos USB Camera
- High-Resolution Imaging: Equipped with a 1/2.33” 16MP color CMOS sensor, delivering sharp 4608x3456 static images and 2304x1728 dynamic video.
- Smooth Performance: Supports a frame rate of up to 25 fps for fluid real-time viewing and efficient documentation.
- Universal Connectivity: Features a standard C-mount interface and USB 2.0 plug-and-play capability for easy integration with most microscopes.
- Complete Software Suite: Includes PixelPro software for professional image capture and management, fully compatible with Microsoft Windows.
Atlas 16 Megapixel Digital Imaging Solution
Professional-Grade Clarity, Speed, and Color Accuracy for Microscopy
Unrivaled Performance in Digital Microscopy
The Atlas camera is a flagship 16 Megapixel digital solution designed for professionals who refuse to compromise on image quality. Boasting one of the fastest frame rates per resolution in its class, the Atlas provides high-definition live feeds and unparalleled accuracy in color reproduction, making it ideal for pathology, material science, and educational research.
Because Labomed utilizes total vertical integration in camera development, users benefit from superior image quality, intuitive software navigation, and seamless end-to-end driver support across all major operating systems.
Why the Atlas 16MP Camera?
- High-Speed USB 3.0 Interface: Experience smooth, lag-free live imaging with a 48 MHz pixel clock and rapid data transfer.
- Superior Sensor Technology: The 1/2.33" Color CMOS sensor delivers 16.0 MP static resolution for publication-quality stills.
- Advanced Image Processing: Equipped with a high-speed FPGA and progressive scan technology for advanced noise reduction.
- Universal Compatibility: Standard C-Mount optical connection ensures it fits nearly any professional microscope.
- Plug-and-Play Simplicity: USB-powered with a clear LED indicator for power and capture readiness.
Product Specifications
| Feature | Specification |
|---|---|
| Sensor Type | 1/2.33" 16.0 MP Color CMOS (Active Area: 5.70mm x 4.28mm) |
| Resolution | Static: 4608 x 3456 pixels | Dynamic: 2304 x 1728 to 4608 x 3456 |
| Frame Rate | 25 fps (@2304 x 1728) | 5 fps (@4608 x 3456) |
| Pixel Size | 1.335μm x 1.335μm |
| Dynamic Range | 59.5 dB; Color Temp: 1800-8000˚K |
| A/D Conversion | 24 Bit RGB |
| Exposure Control | 1ms-1s (Auto/Manual), Electronic Rolling Shutter |
| Software Support | Windows (XP & later), Linux, Mac |
| Certification | UL, CE, ISO 9001:2000, ISO 13485:2003 |
Built for Reliability
Designed to perform in diverse laboratory settings, the Atlas camera operates efficiently in temperatures ranging from 0-60˚C and humidity levels between 45-85%. Its rugged build and standardized certifications ensure long-term stability for medical and industrial applications.
Capture Every Detail with Precision
Upgrade your microscopy setup with the Atlas 16MP imaging solution.
Need a custom configuration? Contact our technical team for assistance.
