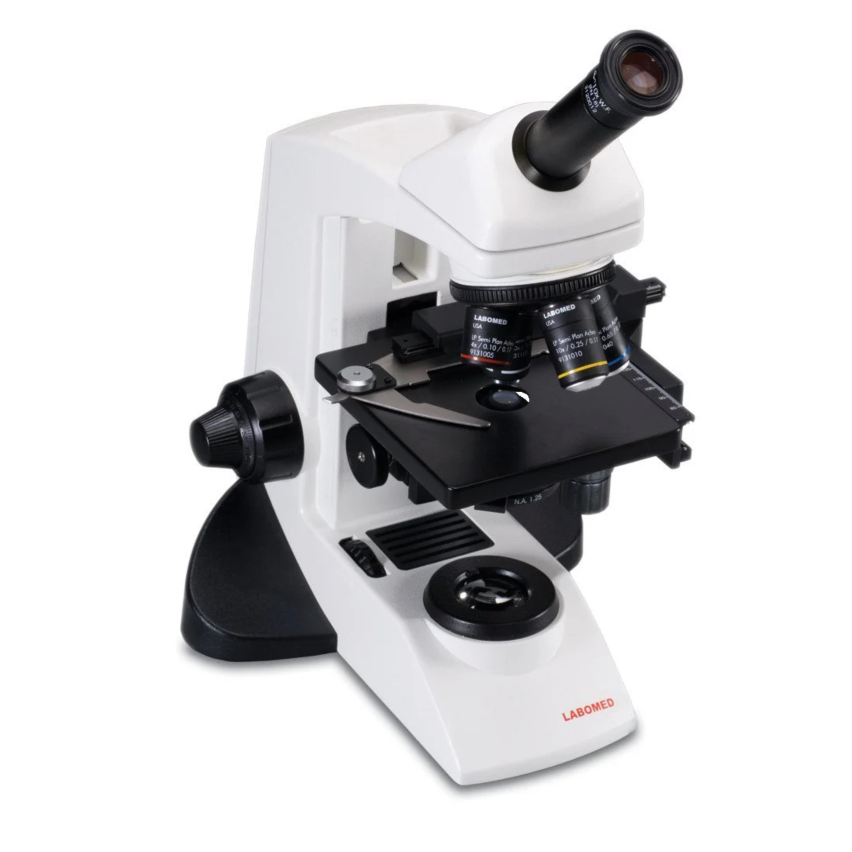

Labomed CxL Microscope – Durable and Ergonomic Design for Classroom and Laboratory Use
The Labomed CxL monocular microscope is a dependable and adaptable instrument, designed for middle and high school classrooms, as well as introductory college and university labs. With its advanced optics and sleek, ergonomic construction, the CxL offers excellent performance at a price point typically seen in more expensive models.
This model is equipped with a monocular viewing head and a wide-field 10x eyepiece, delivering bright, clear images with minimal distortion. The eyepiece is securely locked to prevent tampering, making it a perfect choice for educational settings where durability and ease of use are paramount. The four-position nosepiece holds high-quality DIN Semi-Plan Achromat objectives, available in 4x, 10x, 40x, and 100x oil configurations, allowing for versatile observations and detailed analysis.
The CxL features a precise, easily adjustable XY mechanical stage that ensures smooth slide movement, making it easy to focus on specimens. The microscope’s LED lighting system is CE-approved, comes with a rechargeable battery, and allows for convenient, cordless use. The illumination is variable, offering the option to choose between halogen or LED lighting depending on your needs.
Built for comfort and stability, the Labomed CxL includes a robust stand with an extended base, offering superior stability for prolonged use. This ergonomic design makes the microscope ideal for both students and instructors. Additionally, the microscope offers various customizable accessories, such as phase contrast, darkfield, and polarizing options.
Designed for the demands of everyday classroom and laboratory environments, the Labomed CxL microscope delivers long-lasting, reliable performance. Backed by a 5-year manufacturer warranty, this microscope provides an exceptional value for educational institutions seeking a high-quality, user-friendly microscope at an affordable price.
-
Objective
LP series DIN Semi-Plan Achromatic objectives 4x, 10x, 40x, and 100x (spring loaded)
-
Nosepiece
Quadruple nosepiece turret (Ball bearing type) with rubber grip
-
Viewing Body
45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm
-
Electronics
Universal input 100V-240V AC, 50/60Hz, built-in voltage stabilizer. Dimensions (mm) Labomed CxL Microscope Line Drawing
-
Packaged Contents
- Power Cable (6ft)
- Nylon Dust Cover & Cleaning Cloth
- Styrofoam Casing
-
Stand
Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.
-
Eyepiece
Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating
-
Condenser
Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides
-
Mechanical Stage
Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder
-
Focusing
Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation
-
Illumination
LED illumination with variable illumination control. Up to 100,000 hours of LED life
