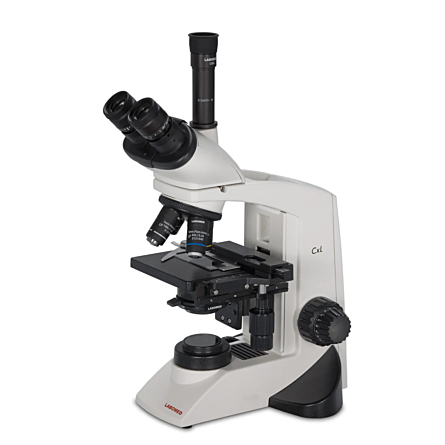

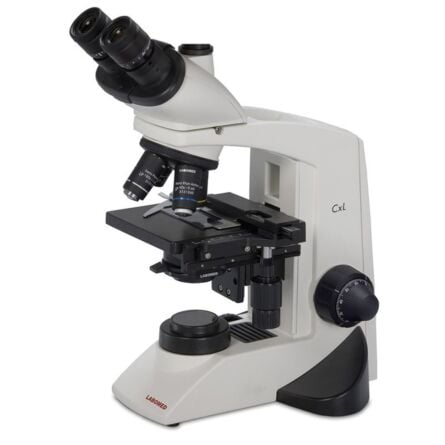

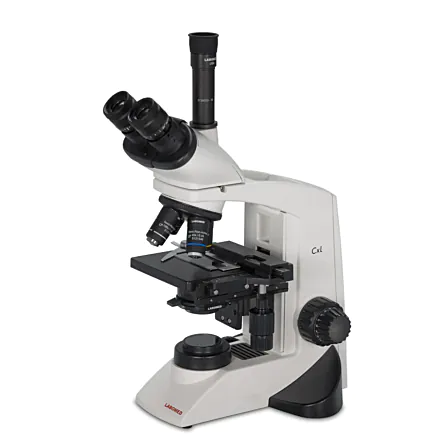

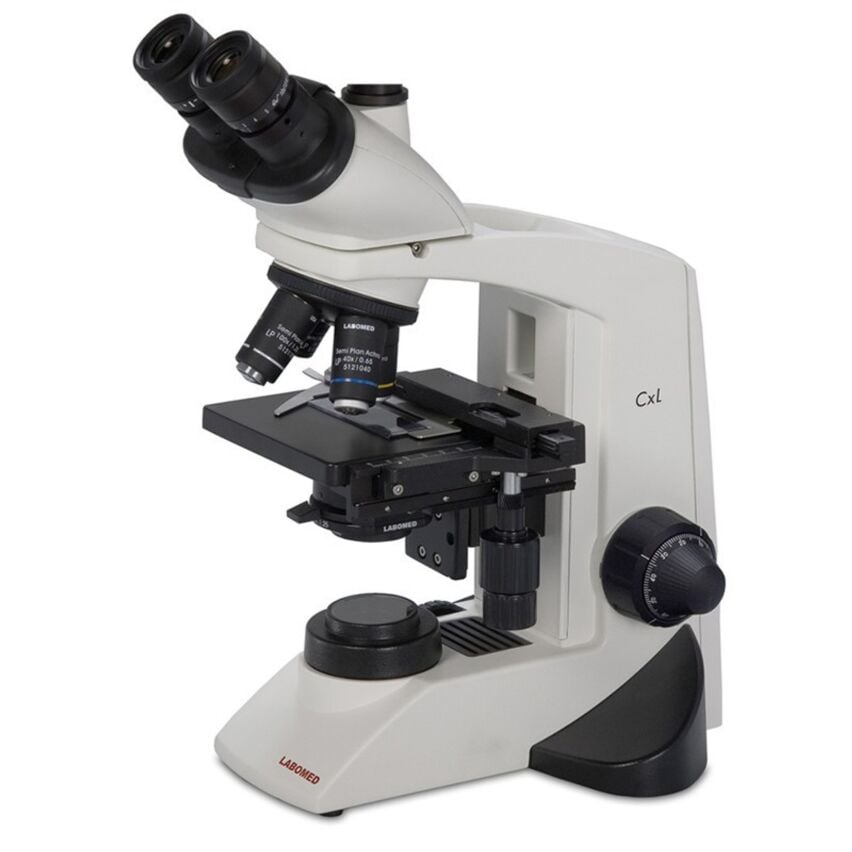

The Labomed CxL trinocular microscope is where modern style meets dependable function, making it an ideal choice for both classroom and low-volume laboratory environments. Designed with improved optics and an ergonomic form factor, the CxL offers superior image quality, user comfort, and durability. Its CE-approved, variable LED illumination system with a universal power supply ensures bright, consistent lighting, and the included rechargeable battery allows for cordless use, adding flexibility for fieldwork or mobile setups.
Every CxL model comes standard with Wide Field 10x eyepieces, a ball-bearing mounted quadruple nosepiece, and DIN Semi-Plan Achromat objectives, delivering crisp, clear views across a wide range of magnifications. A precision mechanical stage paired with a fully focusable 1.25 N.A. condenser provides smooth and accurate specimen movement, enhancing the ease of detailed observations. The sturdy aluminum stand, high-throughput glass optics, and durable brass gears are designed to withstand even the most demanding environments, while the extended base enhances stability and user comfort during extended sessions.
Eco-conscious users will appreciate that the CxL is constructed with lead-free optics and paints, offering a sustainable solution without sacrificing performance. Additional advantages include the Captive Rotation feature for easy and safe viewing head adjustment and dual focusable eyepieces that lock securely in place to prevent tampering.
The CxL microscope is fully customizable with a wide range of accessories, including a trinocular head, phase contrast, darkfield, and polarizing kits, allowing it to adapt to evolving educational or laboratory needs. Recommended for high school, college, and light professional use, the Labomed CxL delivers premium features typically found in microscopes costing hundreds more — and is backed by a comprehensive five-year manufacturer’s warranty for added peace of mind. Set comes with 4 objective lenses- 4x, 10x, 40x, and an extended set including a 100x oil immersion lens for more advanced work.
-
Objective
LP series DIN Semi-Plan Achromatic objectives 4x, 10x, 40x, and 100x (spring loaded)
-
Nosepiece
Quadruple nosepiece turret (Ball bearing type) with rubber grip
-
Viewing Body
45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm
-
Electronics
Universal input 100V-240V AC, 50/60Hz, built-in voltage stabilizer. Dimensions (mm) Labomed CxL Microscope Line Drawing
-
Packaged Contents
- Power Cable (6ft)
- Nylon Dust Cover & Cleaning Cloth
- Styrofoam Casing
-
Stand
Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.
-
Eyepiece
Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating
-
Condenser
Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides
-
Mechanical Stage
Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder
-
Focusing
Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation
-
Illumination
LED illumination with variable illumination control. Up to 100,000 hours of LED life
