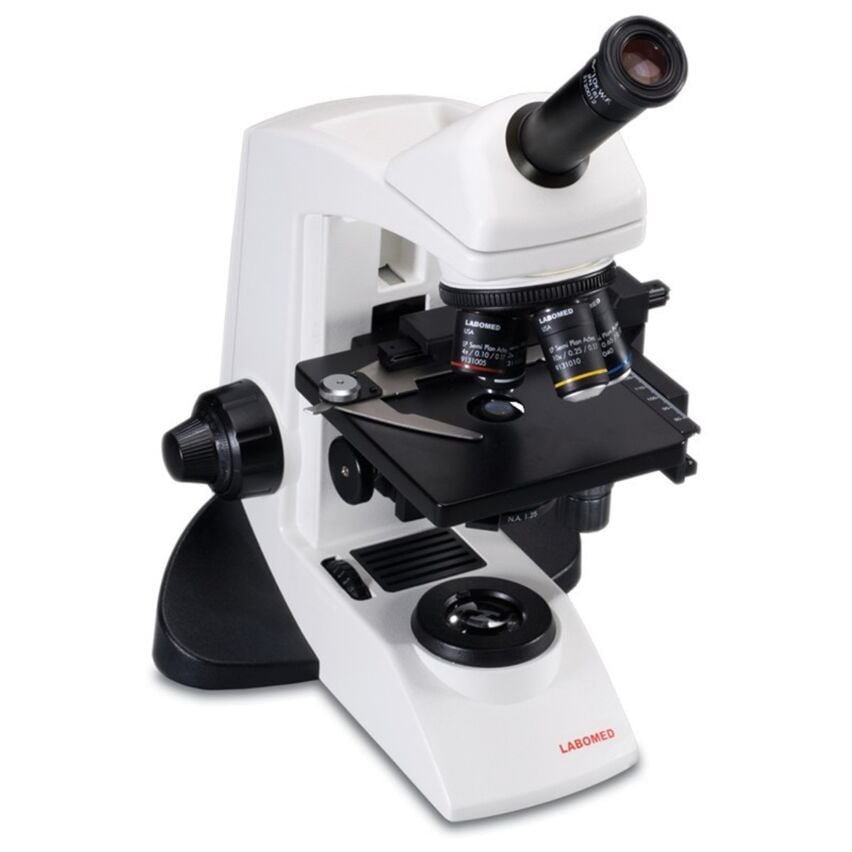

Labomed CxL Microscope – High-Quality, Ergonomic Design for Educational Use
The Labomed CxL monocular microscope is a versatile and reliable tool designed for middle and high school classrooms, as well as entry-level college and university laboratories. With its newly improved optics and sleek, ergonomic design, the CxL provides exceptional value while delivering performance typically found in much more expensive microscopes.
This model comes equipped with a monocular viewing head and a wide-field 10x eyepiece, ensuring clear and bright images with minimal distortion. The eyepiece is securely locked to prevent tampering, making it ideal for use in educational environments where durability and ease of use are critical. The four-position nosepiece is fitted with high-quality DIN Semi-Plan Achromat objective lenses, available in 3 objectives- 4x, 10x, and 40x configuration, allowing users to perform a variety of applications with ease.
The Labomed CxL microscope features a smooth and easily adjustable XY mechanical stage, which facilitates precise slide movement for effortless observation. The LED illumination system is CE approved and comes with a rechargeable battery, providing convenient, cordless operation. The illumination is variable, offering users the flexibility of choosing between halogen or LED lighting based on their specific needs.
Designed with comfort and stability in mind, the CxL microscope boasts a sturdy stand with an extended base that ensures maximum stability, even during extended periods of use. This, along with the ergonomic design, makes it an excellent choice for both students and instructors. Additionally, the microscope is customizable with various accessories, including, phase contrast, darkfield, and polarizing options.
The Labomed CxL microscope is built to withstand the rigors of daily classroom and lab use, offering reliable functionality for years to come. Backed by a 5-year manufacturer warranty, it represents a great investment for educational institutions looking to provide students with a high-quality, user-friendly microscope at an affordable price.
-
Objective
LP series DIN Semi-Plan Achromatic objectives 4x, 10x, and 40x
-
Nosepiece
Quadruple nosepiece turret (Ball bearing type) with rubber grip
-
Viewing Body
45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm
-
Electronics
Universal input 100V-240V AC, 50/60Hz, built-in voltage stabilizer. Dimensions (mm) Labomed CxL Microscope Line Drawing
-
Packaged Contents
- Power Cable (6ft)
- Nylon Dust Cover & Cleaning Cloth
- Styrofoam Casing
-
Stand
Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.
-
Eyepiece
Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating
-
Condenser
Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides
-
Mechanical Stage
Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder
-
Focusing
Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation
-
Illumination
LED illumination with variable illumination control. Up to 100,000 hours of LED life
