Meiji Techno EMZ5-BD-LED Zoom Stereo Microscope System

$ 2135.00

List Price: $2,475.00

As low as: $2,135.00

SKU: EMZ5-BD-LED

Availability: In stock

  • 0.7x-4.5x zoom range
  • Choice of eyepieces
  • Classic BD-LED stand with LED illumination
  • Binocular or trinocular
  • Optional click stop detents
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

BD-LED Pole Stand with Incident LED Illumination   $825.00
  • $10.00

Included in Bundle

Stand: BD-LED Pole Stand with Incident LED Illumination

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

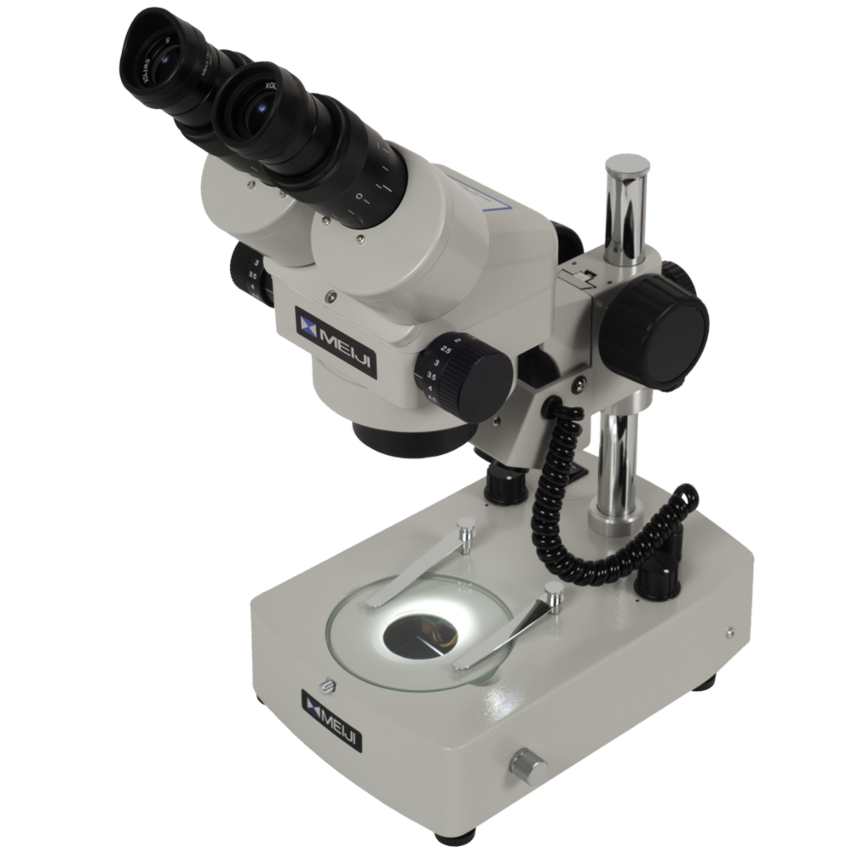

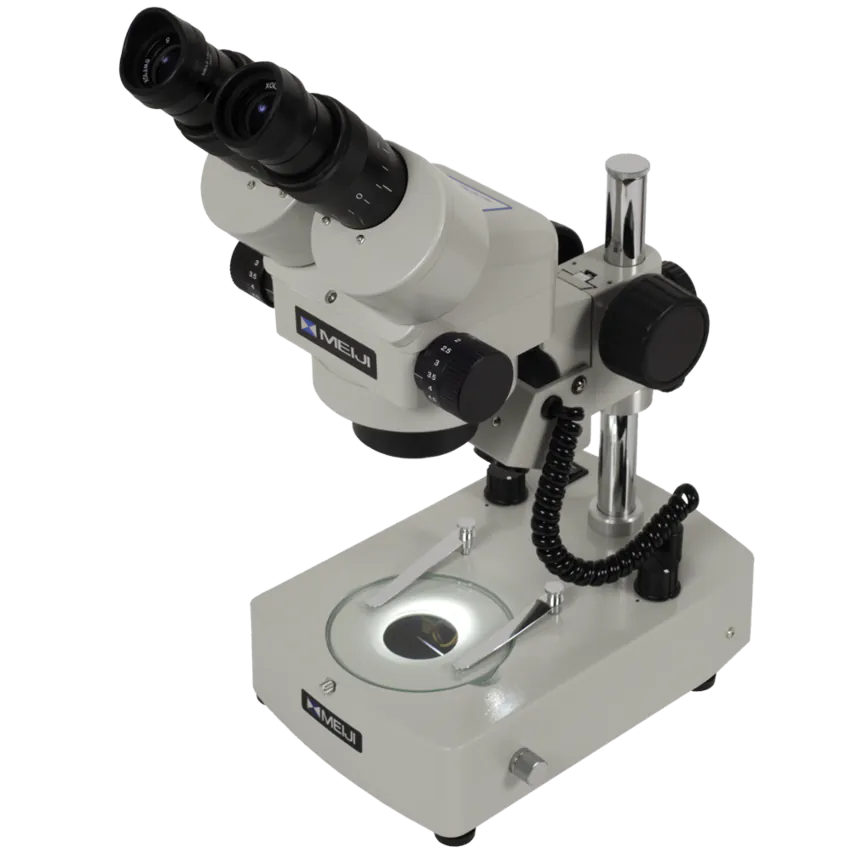

  • Meiji EMZ-5-BD-LED Zoom  Stereo Microscope
  • Meiji EMZ-5-BD-LED Zoom  Stereo Microscope Front
  • Meiji EMZ-5-BD-LED Zoom  Stereo Microscope Side
  • Meiji EMZ-5TR-BD-LED Zoom  Stereo Trinocular Microscope Side
Description

Summary

The Meiji EMZ5-BD-LEDis a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the classic BD-LED pole stand with integrated LED illumination. The microscope offers 7x-45x zoom magnification with 10x eyepieces although you have a choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

,p>Available in binocular or trinocular format and also with click stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

The Model BD-LED pole stand has an integrated focusing holder. A dual-reflection lens/mirror system provides both incident and transmitted variable intensity LED illumination, independently or simultaneously. Fully rotatable mirror in base provides transmitted brightfield or pseudo-darkfield illumination. Supplied with 94.5mm diameter clear glass stage plate and two stage clips. For use with zoom stereo bodies.

EMZ-5 VIDEO

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • BD-LED Pole Stand with Incident LED Illumination
    General
    Brand Meiji Techno
    SKU BD-LED
    Feed - Title Meiji Techno BD-LED Pole Stand with Incident LED Illumination
    Feed - Description The Meiji EMZ5-BD-LEDis a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the classic BD-LED pole stand with integrated LED illumination. The microscope offers 7x-45x zoom magnification with 10x eyepieces although you have a choice of eyepieces. Limited Lifetime Warranty.Microscope Head The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
    Feed - Custom Label 1 500-1000
    Stand
    Stand Class Pedestal
    Stand Type Fixed Arm
    Stage Plate Clear Glass
    Illumination
    Illumination Type LED
    Illumination Style Transmitted, Incident
    Incident Light Type LED
    Incident Light Control Variable
    Transmitted Light Type LED
    Transmitted Light Specification
    Transmitted Light Control Variable
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

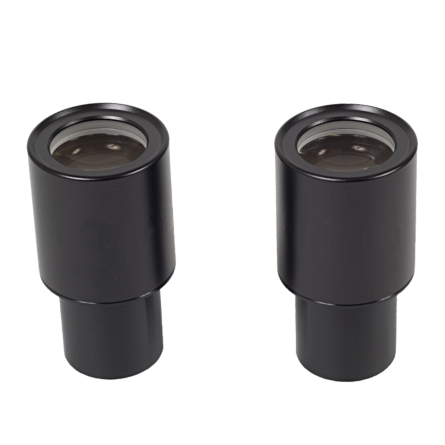

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)
    General
    Brand Meiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji Techno
    SKU MA501MA718MA502MA520MA503MA504MA521MA519
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Feed - Title Meiji Techno MA501 - 5X Super Widefield Paired EyepiecesMeiji Techno MA718 - 7.5X Super Widefield Paired EyepiecesMeiji Techno MA502 - 10X Super Widefield Paired EyepiecesMeiji Techno MA520 - 12.5x Super Widefield Paired EyepiecesMeiji Techno MA503 - 15X Super Widefield Paired EyepiecesMeiji Techno MA504 - 20X Super Widefield Paired EyepiecesMeiji Techno MA521 - 30X Super Widefield Paired EyepiecesMeiji Techno MA519 - 10x Focusing Eyepiece (single)
    Feed - Description The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45
    Feed - Custom Label 1 100-500100-500100-500100-500100-500100-500100-500100-500
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x

  • MA600 Stereo Eyeshields (Pair)
    General
    Brand Meiji Techno
    SKU MA600
    Feed - Title Meiji Techno MA600 Stereo Eyeshields (Pair)
    Feed - Description The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
    Feed - Custom Label 1 <100
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 5

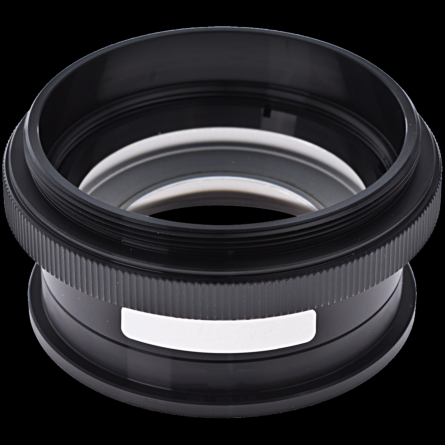

Auxiliary Barlow Lens

0.3X

0.5X

0.75X

1.5X

Working distance 93mm

Working distance 251mm

Working distance 148mm

Working distance 97mm

Working distance 49mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

2.1X-13.5X

109 ~ 17

3.5X-22.5X

65.7-9.8

5.2X-33.7X 43.8 ~ 6.8 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

3.1X-20.2X

73 ~ 11.4

4.4X-28X

44 ~ 6.8 7.9X-50.6X 29.3 ~ 4.5 13.1X-84.4X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

4.2X-27X

54.7 ~ 8.5

5.2X-33.4X

32.8 ~ 5.1 10.5X-67.5X 21.9 ~ 3.4 15.7X-101.2X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 36.6X-5.7X 36.6 ~ 5.7

10.5X-67.5X

22 ~ 3.4 15.8X-101.2X 14.6 ~ 2.2 31.5X-202.5X 7.3 ~ 1.1
Product Manuals
  • Meiji EMZ Series Stereo Microscope Manual: Download PDF [888k]
