Labomed LBO3146300 iVu Touch Camera 10" Touch Screen 5 Megapixels
- All-in-One Integration: Features a high-definition 5MP CMOS sensor integrated into a vibrant 10-inch touch screen for a streamlined, cable-free workspace.
- Exceptional Visuals: Delivers super-fast frame rates and superb color accuracy, providing high-contrast imaging for precise real-time analysis.
- On-Screen Control: Manage measurements, parameter settings, and camera features directly via the touch interface or the onboard USB mouse port.
- Versatile Data Handling: Supports high-definition video streaming and includes an SD card interface for easy capturing and sharing of clinical documentation.
The Ultimate All-In-One 5MP HD Digital Microscopy Solution

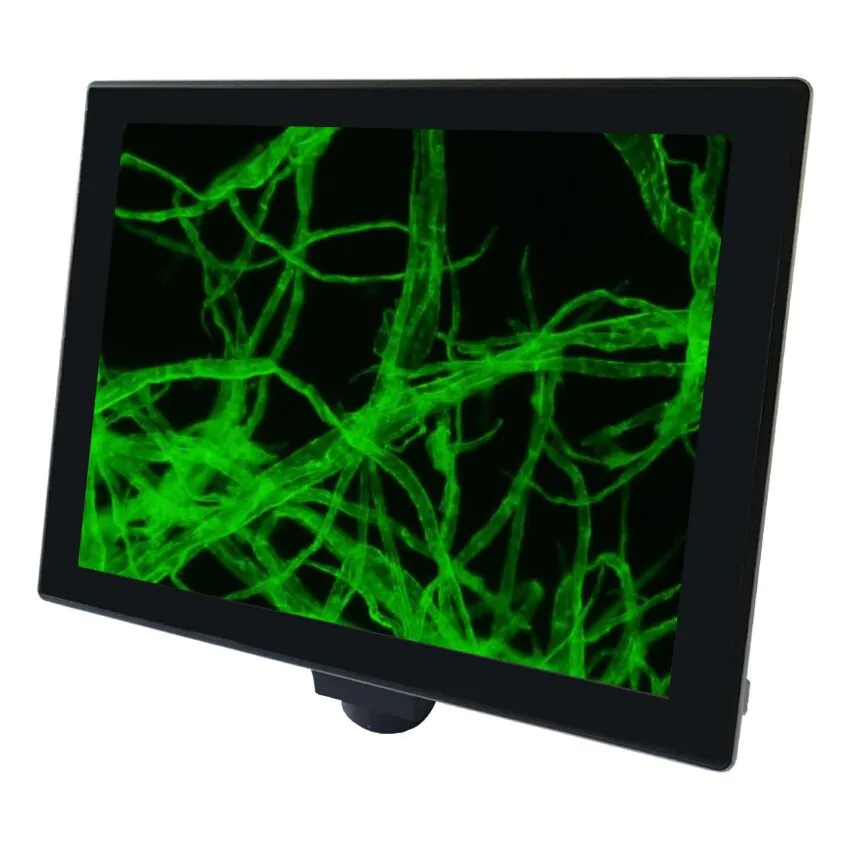

The iVu Touch is a revolutionary 5.0 Megapixel high-definition CMOS camera that redefines digital microscopy. By integrating a high-performance sensor directly into a compact 10-inch HD touchscreen monitor, this system eliminates the need for an external PC, significantly saving laboratory bench space and streamlining your workflow.
Designed for professionals in clinical, industrial, and research environments, the iVu Touch delivers a super-fast frame rate, superb contrast, and highly accurate color reproduction. Whether you are conducting routine quality control or complex biological research, this standalone system provides the speed and clarity required for modern imaging.
Key Benefits & Features
- High-Definition Real-Time Streaming: Experience smooth 30 fps video at 1920 x 1080 resolution for lag-free observation.
- Intuitive Touch Interface: Manage measurement tools, parameter settings, and image capture directly on the 10" display—no mouse or keyboard required.
- Onboard Software Suite: Perform full measurements, calibrations, and annotations without ever turning on a computer.
- Versatile Storage & Connectivity: Save high-resolution images (up to 4608 x 3456) directly to an SD card or export data via USB 2.0.
- Advanced Image Processing: Equipped with high-speed FPGA and advanced noise reduction for publication-quality results.
Technical Specifications
| Sensor & Imaging Performance | |
|---|---|
| Sensor Type | 1/2.5" 5.0 MP Color CMOS (Active area: 5.70mm x 4.28mm) |
| Resolution | Static: 4608 x 3456 pixels | Dynamic: 1920 x 1080 |
| Frame Rate | 30 fps (@ 1920 x 1080) |
| Pixel Size | 2.8μm x 2.8μm |
| Hardware & Connectivity | |
| Integrated Screen | 10-Inch High-Definition Touchscreen |
| Interfaces | USB 2.0, SD Card Slot (Supports up to 32GB) |
| Mounting Requirement | Standard C-Mount Thread (Requires specific C-Mount Adapter) |
| Compliance & Quality | |
| Certifications | UL, CE, ISO 9001:2000, and ISO 13485:2003 Certified |
Installation Note: A microscope-specific C-Mount adapter (0.5x recommended) is required to attach the iVu Touch to your microscope's trinocular port. Ensure you select the correct adapter for your brand (Meiji, Olympus, Nikon, or Zeiss) to maintain parfocality.
Transform Your Microscopy Workflow
Eliminate the PC and embrace the convenience of touch-controlled digital imaging.
| Brand | Labomed |
|---|---|
| Recommended For | 0 |
| Sensor Type | CMOS |
| Filter | RGB Bayer Pattern |
| Peltier Cooling | No |
