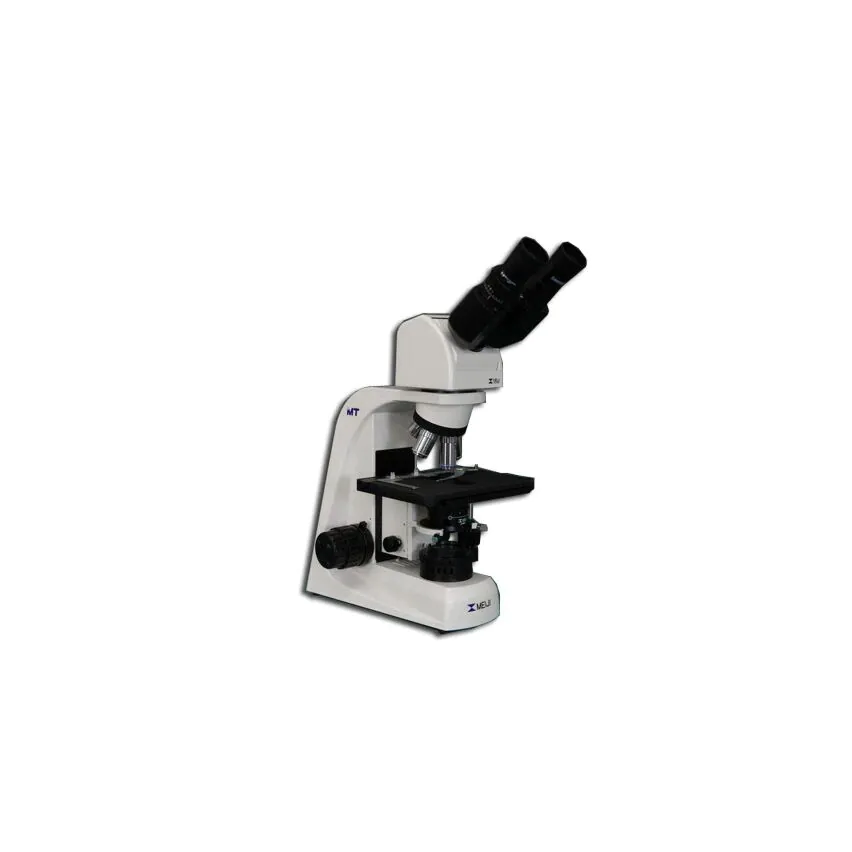

Meiji Techno MT5200ELV Veterinary Brightfield Biological Microscope with ergonomic binocular head
SKU:
MT5200ELV
In stock
You pay: $4,050.00
Free Shipping,
30 Day Money Back Guarantee
- Ergonomic Viewing: Features an adjustable binocular head that tilts from 10° to 50°, providing customizable comfort for various user heights during extended clinical use.
- Veterinary-Optimized Optics: Equipped with a full suite of Infinity Corrected U. Planachromat objectives (4X, 10X, 20X, 40X, and S100X oil) and an Abbe N.A. 1.25 condenser for superior image clarity.
- Cool LED Illumination: The 10,000-hour rated LED system prevents heat transfer to specimens, ensuring samples like alcohol-based fixatives or live organisms are not denatured or stressed.
- Professional Grade Hardware: Built with a smooth-operating mechanical stage, coarse/fine focus knobs with tension adjustment, and a stage lock to protect slides and objectives.
Meiji Techno MT5200ELV Veterinary Series Compound Microscope
The MT5200ELV Veterinary Series is a preconfigured compound biological microscope specifically designed for clinical veterinary practices. This 100% Japanese-made instrument offers a smooth-operating mechanical stage, a full suite of Infinity Corrected Planachromat objectives, and an ergonomic design to support the long hours of laboratory diagnostics.
Key Features
- Ergonomic Tilting Head: Adjustable from 10° to 50° to accommodate different heights and postures.
- Infinity Corrected Optics: Includes a full set of U. Planachromat objectives (4X, 10X, 20X, 40X, and S100X oil).
- Ceramic Coated Stage: Large 170mm x 140mm flat-top stage with ceramic coating for smooth slide replacement and durability.
- Advanced Illumination: High-efficiency 3W LED (5500K) or Halogen options with auto-voltage sensing power supply.
- Digital Ready: Trinocular models include a CMOS HDMI/USB 2.0 camera and an 11.8” monitor for easy documentation and training.
Technical Specifications
| Component | Description |
|---|---|
| Optical System | Infinity Corrected Optical System (F=200mm) |
| Eyepieces | MA817 SWH10X, Field No. 22, Anti-fungus coating |
| Objectives | U. Plan 4X, 10X, 40X, and 100X (Oil) |
| Condenser | Abbe Condenser, N.A. 1.25 with iris diaphragm |
| Focusing | Coaxial coarse/fine controls; 2-micron graduation; tension adjustment |
| Manufacturing | 100% Made in Japan | Limited Lifetime Warranty |
Included in Package
- MT5200ELV Microscope Body
- Ergonomic Tilting Binocular Head (MA975)
- SWH10X Eyepieces & Rubber Eyeshields
- U. Plan Objective Set (4X, 10X, 40X, 100X Oil)
- Attachable Finger Assembly (MA598)
- LB100 Blue Filter, Dust Cover, and Power Cord
- Instruction Manual and Warranty Card
Physical Information
Weight: 34 lbs (Total Package) / Approx. 31 lbs (Unit Only)
Footprint: 263mm (D) x 176mm (W)
Dimensions: 390mm (D) x 483mm (H) x 210mm (W)
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
