Meiji Techno BD-LED Pole Stand with Incident LED BF/DF Illumination

List Price: $2,100.00

Our Price: $1,895.00

SKU: BD-M-LED

Availability: In stock

  • Solid metal rigid-arm stand
  • Integrated dual reflection lens/mirror system
  • Transmitted BF and psuedo-DF LED illumination
  • Rack and pinion action with safety clutch
  • Clear glass stage plate and stainless steel clips
  • Lifetime Limited Warranty

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

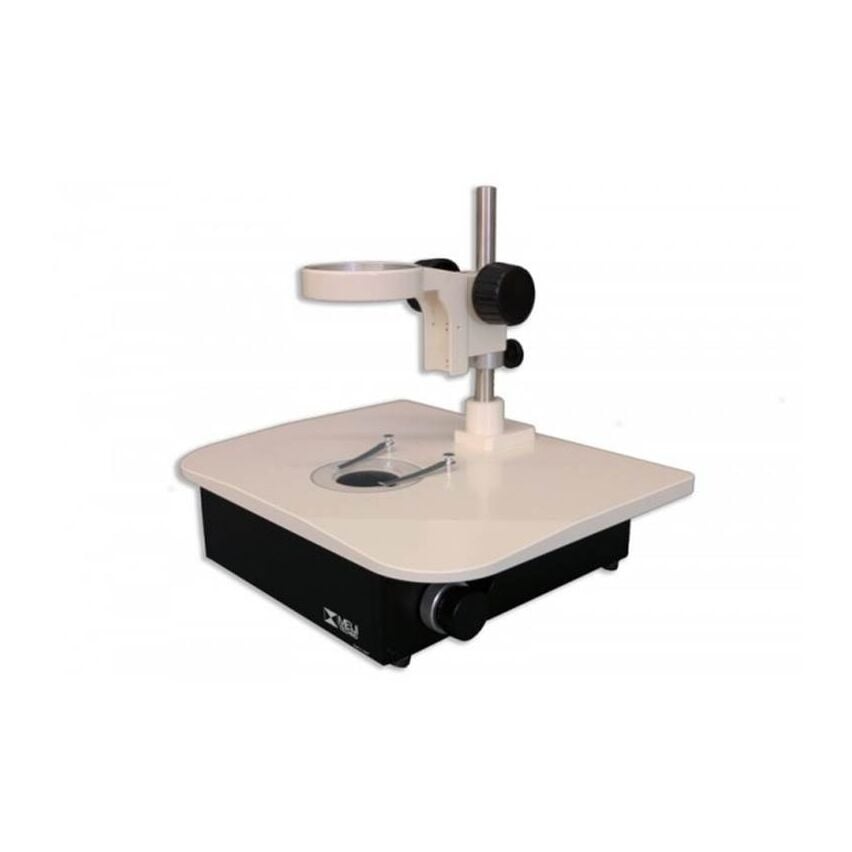

  • BD-LED Pole Stand with Incident LED BF/DF Illumination
  • BD-LED Pole Stand with Incident LED BF/DF Illumination back
  • BD-LED Pole Stand with Incident LED BF/DF Illumination right
Description

Summary

The Meiji BD-M-LED is a research grade Brightfield / Darkfield Pole type stand for the EM Series stereo microscopes. It has a large stable work surface and variable intensity LED illumination. It makes for an effective tool to view living bacteria, cells or embryo transfer where darkfield or oblique transmitted illumination is critical to the experiment. Limited Lifetime Warranty.

Illumination

A rotatable lens/mirror system in the base provides transmitted LED variable-intensity illumination and a sliding mirror provides tilt, as well as front to back movement which allows the user to vary illumination from Brightfield LED to psuedo-Darkfield LED illumination at an appropriate angle.

Stand

The stand has an integrated F series focusing holder with 55mm of travel protected by a slip clutch and tension adjustment. It features two stage clips, a 94.5 mm glass stage plate, and is equipped with an automatic voltage (100v to 240v) sensing power supply and a 20mm vertical post. Dimensions: 330mm (13") wide by 280mm (11") length by 85mm (3.37") high. Shipping details: 17 x 14 x 9 inches, 10 lbs.
Specifications

BD-LED Pole Stand with Incident LED BF/DF Illumination
General
SKU BD-M-LED
Short Description
  • Solid metal rigid-arm stand
  • Integrated dual reflection lens/mirror system
  • Transmitted BF and psuedo-DF LED illumination
  • Rack and pinion action with safety clutch
  • Clear glass stage plate and stainless steel clips
  • Lifetime Limited Warranty
Stand
Stand Class Pedestal
Stand Type Fixed Arm
Stage Plate Clear Glass
Illumination
Illumination Type LED
Illumination Style Transmitted, Incident
Incident Light Type LED
Incident Light Control Variable
Transmitted Light Type LED
Transmitted Light Specification
Transmitted Light Control Variable
If FB Integrated
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Head Ring Mount Diameter 84 mm
