Meiji Techno EMZ-8TR-S4100 7X-45X Boom Stereo Microscope

List Price: $2,875.00

Starting at: $2,520.00

SKU: EMZ8TR-S4100

Availability: In stock

  • 7X-45X zoom magnification
  • Trinocular - optional detents
  • Choice of eyepieces
  • S4100 single arm boom stand
  • Optional ring light illuminators
  • Optional barlow lenses
  • Limited Lifetime Warranty
Select package options

Click on to learn more about the option * signifies required items

MA600 Stereo Eyeshields (Pair)   $10.00
  • $79.00
  • $88.00
  • $129.00
  • $139.00
  • $140.00
  • $129.00
  • $129.00
  • $139.00
  • $139.00
S-4100 Boom Stand   $610.00

Included in Bundle

Eyeguards: MA600 Stereo Eyeshields (Pair)

Stand: S-4100 Boom Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

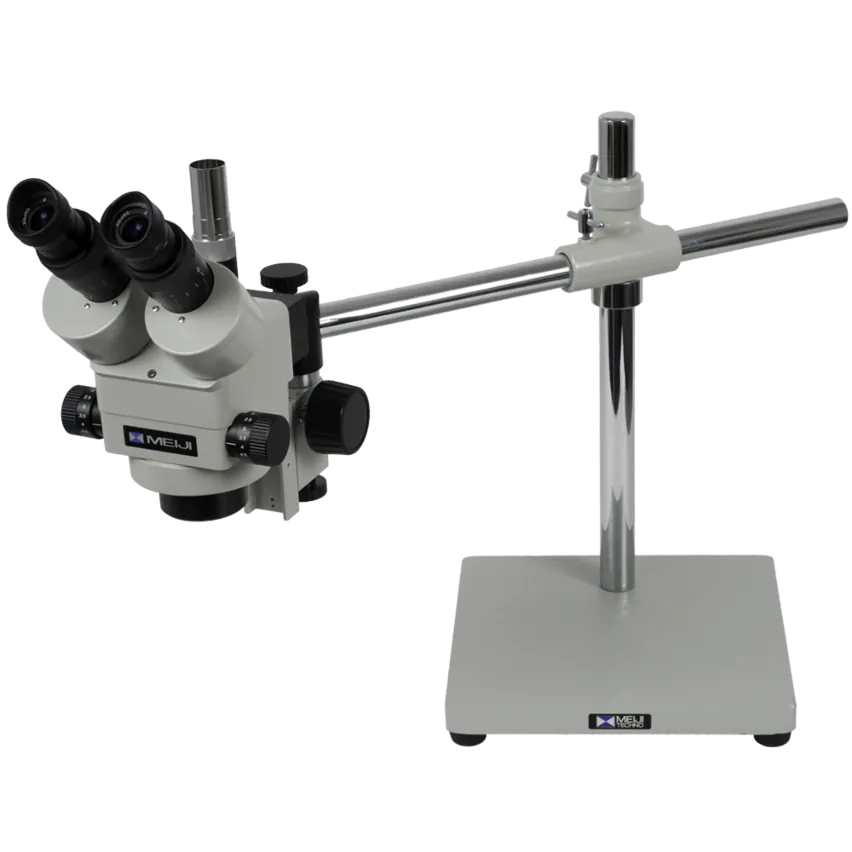

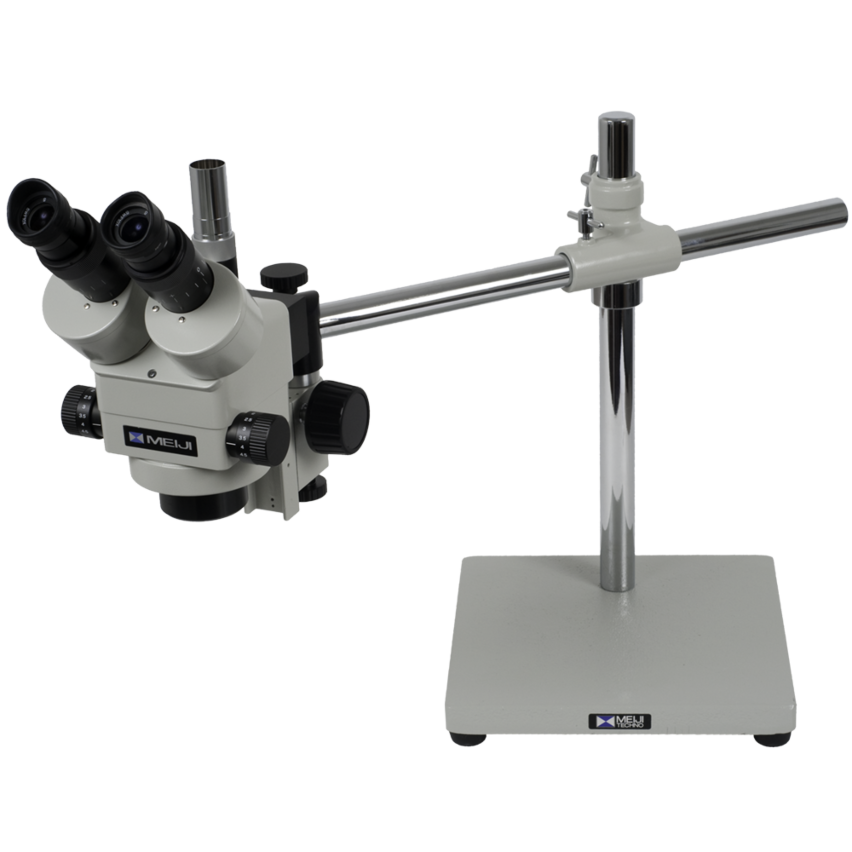

  • Meiji EMZ-8TR-S4100 Boom Stereo Microscope
  • Meiji EMZ-8TR-S4100 Boom Stereo Microscope head
  • Meiji EMZ-8TR-S4100 Boom Stereo Microscope focus block
  • Meiji EMZ-8TR-S4100 Boom Stereo Microscope stand
  • Meiji EMZ-8TR-S4100 Boom Stereo Microscope transition block
Description

Summary

The Meiji EMZ8TR-S4100 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the S-4100 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects.

The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in trinocular format and also with click stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

The S-4100 boom stand is solidly built and measures 265mm x 265mm x 25mm. It has a 530mm (20.8") long horizontal arm and a pole that is 510mm high (15.7"). For those who require greater working distance, the S-4200 is identical in every respect except that the vertical pole is 600m tall (24"). The solid metal base is 10.4 x 10.4 inches for exceptional stability and fully adjustable set screws provide unlimited mounting positions.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ-8TR Trinocular Stereo Head

    EMZ-8TRD Trinocular Stereo Head with Detents

    EMZ-8TRH Trinocular Stereo Head with High Eyepoint (Requires MA522)

    EMZ-8TRU Trinocular Stereo Head with Illuminator Port
    SKU EMZ8TREMZ8TRDEMZ8TRHEMZ8TRU
    Head
    Head Type TrinocularTrinocularTrinocularTrinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough ConvergedGreenough Converged
    Magnification Type ZoomZoomZoomZoom
    Ocular Angle 45°45°45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm50 mm50 mm
    Diopter Adjustment DualDualDualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm
    Trinocular Type Beam Split ContinuousBeam Split ContinuousBeam Split ContinuousBeam Split Continuous
    Trinocular Standard 23mm DIN23mm DIN23mm DIN23mm DIN
    Head Rotation 360 Degrees360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) 0.70.70.70.7
    Maximum Objective (X) 4.54.54.54.5
    Zoom Control Type Smooth ContinuousDetent Click-StopsSmooth ContinuousSmooth Continuous
    Zoom Indicator Graduations YesYesYesYes
    Parfocal YesYesYesYes
    Body
    Body Material All-MetalAll-MetalAll-MetalAll-Metal
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount
    Available Imaging Mounts 0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
    Head Ring Mount Diameter 84 mm84 mm84 mm84 mm
    Max Working Distance (standard) 104mm104mm104mm104mm

  • F Focus Block

    FS Focus Block
    SKU FFS
    Focus Block
    Focus Controls CoarseCoarse
    Focus Mechanism Rack & PinionRack & Pinion
    Compatibility
    Focus Block Mount Diameter 20 mm5/8in Pin
    Head Ring Mount Diameter 84 mm84 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)

    MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H / 8TRH)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519MA522
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    SKU OMLED-80AOMLED-64AOMLED-144A
    Warranty 1 year
    Product Weight 1lb
    Light Specs
    Illumination Type LEDLEDLED
    Ring Light Type LEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control VariableVariableVariable

  • MA791 Barlow Lens 0.28X WD 300mm

    MA792 0.35x Barlow Lens, WD=250mm

    MA793 0.44X Barlow Lens WD 184mm

    MA794 0.5x Barlow Lens WD 174mm

    MA795 1.5x Barlow Lens WD 57mm

    MA802 2x Barlow Lens WD 36.6mm
    SKU MA791MA792MA793MA794MA795MA802
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mm Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatible With EMZ-8*EMZ-8* EMZ-8*EMZ-8*EMZ-8*
    Optical Accessory
    Barlow Lens Power 0.3X0.4X 0.5X1.5X2.0X

  • S-4100 Boom Stand
    SKU S4100
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Post Diameter 29 mm
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Fixed
    Compatibility
    Focus Block Mount Diameter 20 mm
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 8

Auxiliary Barlow Lens

0.28X

0.35X

0.5X

1.5X

Working distance 104mm

Working distance 300mm

Working distance 250mm

Working distance 174mm

Working distance 57mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

1.9X-12.6X

112.3 ~ 17.4

2.5X-15.75X

93.7 ~ 14.5 3.5X-22.5X 65.6 ~ 10.2 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

2.9X-18.9X

78.1 ~ 12.2

3.7X-23.6X

62.8 ~ 9.7 5.25X-33.8X 44 ~ 6.8 15.8X-101.2X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

3.9X-25.2X

55.6 ~ 8.5

4.9X-31.5X

46.8 ~ 7.4 7X-45X 32.8 ~ 5.1 21X-135X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 5.9X-37.8X 34.0 ~ 5.7 7.3X-47.2X 31.4 ~ 4.8 10.5X-67.5X 22 ~ 3.4 31.5X-202.5X 7.3 ~ 1.1
