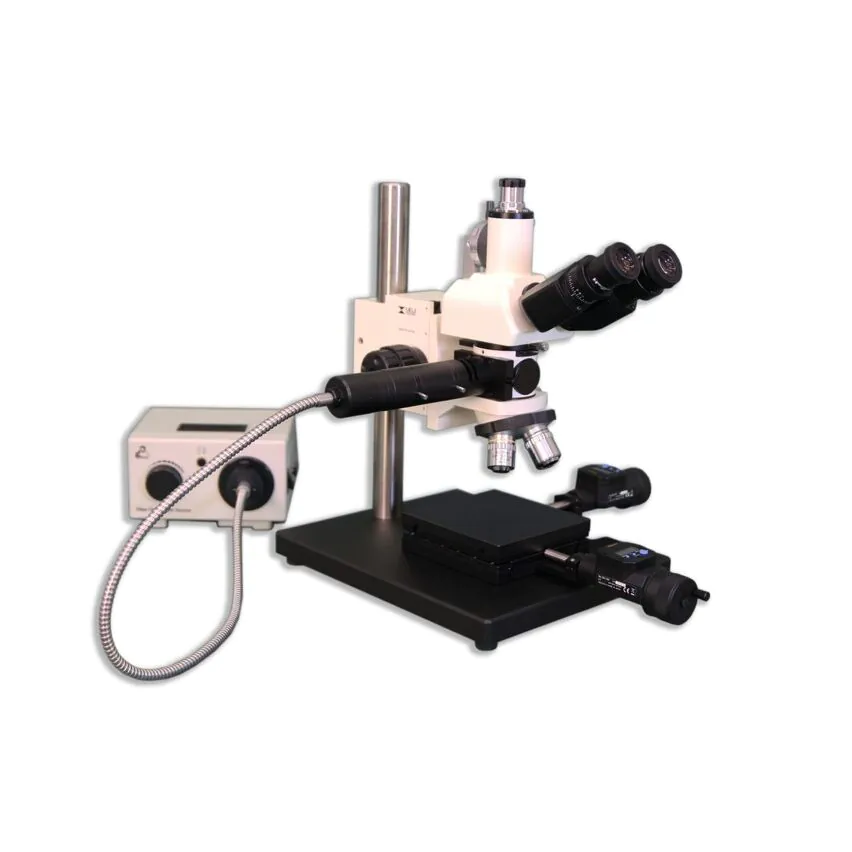

Meiji Techno MC-70T Trinocular Incident and Transmitted Light Tool Makers/Measuring Microscope

SKU:

MC-70T

In stock

You pay: $13,050.00

Free Shipping,

30 Day Money Back Guarantee

Versatile Observation Modes: Engineered for Brightfield, Darkfield, and simple Polarization, allowing for detailed inspection of diverse material surfaces and finishes.
High-Performance Optics: Built with premium metallurgical components and a choice of binocular or trinocular heads to suit both visual inspection and digital imaging needs.
Precision Measurement: Integrated X-Y stages and Mitutoyo Digimatic Micrometer heads provide high-accuracy 2-axis or 3-axis digital readouts in both metric and imperial units.
Ready for Documentation: Fully configurable for professional-grade imaging, including digital CMOS/CCD video, 35mm photomicrography, and consumer-grade still cameras.
Industrial Durability: Features a heavy-duty stand for maximum stability and is available in 110V or 220V configurations with incident or transmitted light options.
SPC Data Compatibility: Includes serial output capabilities for seamless integration into Statistical Process Control (SPC) software environments.

Note: Mitutoyo Digimatic Indicators (MTI164-164 and MTI543-392) are shown for illustrative purposes and must be purchased separately to complete the digital readout system.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

MC-70 & MC-70T Series: High-Precision Metallurgical Measuring Microscopes

The MC-70 & MC-70T Series represents the pinnacle of industrial metrology, combining Brightfield, Darkfield, and Simple Polarization observation modes into a rugged, high-performance tool-making compound microscope. Designed for material science and precision engineering, these systems are perfect for identifying material properties, testing new products, and performing high-accuracy 2-axis or 3-axis measurements.

Built with Meiji Techno’s Infinity Corrected Optical System (F=200mm), the MC-70 series ensures distortion-free, high-resolution imaging across all magnification levels. Whether you are inspecting micro-electronics or analyzing metal grain structures, this series provides the stability and clarity required for demanding SPC (Statistical Process Control) applications.

Advanced Contrast Methods for Industrial Inspection

Brightfield: The standard for metallurgical inspection, providing high-contrast white light illumination to reveal surface details and dense areas of the sample.
Darkfield: By excluding unscattered light, Darkfield creates a high-contrast image where the specimen appears bright against a dark background—ideal for detecting surface defects, cracks, and subtle irregularities.
Simple Polarization: Utilizing high-quality polarizing plates, this mode converts natural light into linear vibration to analyze birefringent materials and reduce glare on highly reflective metallic surfaces.

Key Features & Specifications

Precision Optics: Includes Planachromat Epi Objectives (M5X, M10X, M20X, M50X) for superior flatness of field.
Digital Metrology: Equipped with X and Y ports to accept Mitutoyo Digimatic Indicators (50mm range) and a "Z" axis mounting bracket for precise depth measurement.
Powerful Illumination: Standard 150W Vertical Koehler Illuminator (LED options available) for consistent, high-intensity light.
Ergonomic Build: Computer-aided design (CAD) with low-positioned coarse and fine focus controls and a 360° rotating trinocular head.
Filter Suite: Comes standard with Blue Clear, Green Clear, Neutral Density (ND8), and Polarizing filters.

Technical Specifications

Feature	Specification
Optical System	Infinity Corrected (ICOS), F=200mm
Nosepiece	Quintuple (5 positions) ball-bearing mounted
Eyepieces	Focusing 10X eyepiece with cross-line reticle
Readout Support	2-axis & 3-axis Electronic Digital Readout compatible
Digital Interface	Mitutoyo Digimatic serial output for SPC

Streamline Your Quality Control Workflow

The MC-70 Series is the preferred choice for tool-making and material analysis professionals worldwide.

Need a customized configuration with Mitutoyo digital heads? Contact our technical team for a quote today.

More Information

More Information
Brand	Meiji Techno
Recommended For	0
Trinocular Tube Focusable?	No
Parfocal	No
Focus Controls Graduated?	No
Stage Range Graduated?	No
Includes Eyepieces?	No
Includes Eyecups?	No
Included Objectives Parfocal Adjustable?	No
Reticles Available?	No
Case Included?	No
