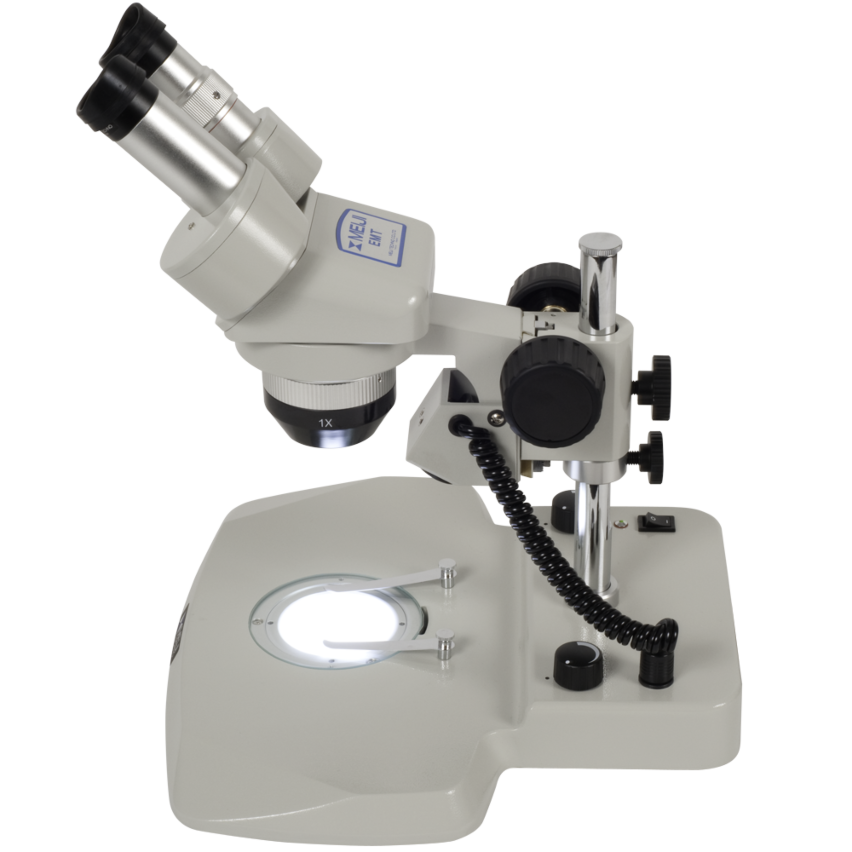

Meiji Techno EMT-1-PKL Stereo Microscope System

$ 1374.00

List Price: $1,545.00

Starting at: $1,374.00

SKU: EMT1-PKL

Availability: In stock

  • 1x/2x dual power stereo microscope
  • Ergonomic pole stand
  • 5W LED Incident illumination
  • Binocular
  • 81mm working distance
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

EMT-1 1x/2x Dual-Power Stereo Microscope Body   $525.00
PKL1 Pole Stand   $699.00

Included in Bundle

Head: EMT-1 1x/2x Dual-Power Stereo Microscope Body

Stand: PKL1 Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

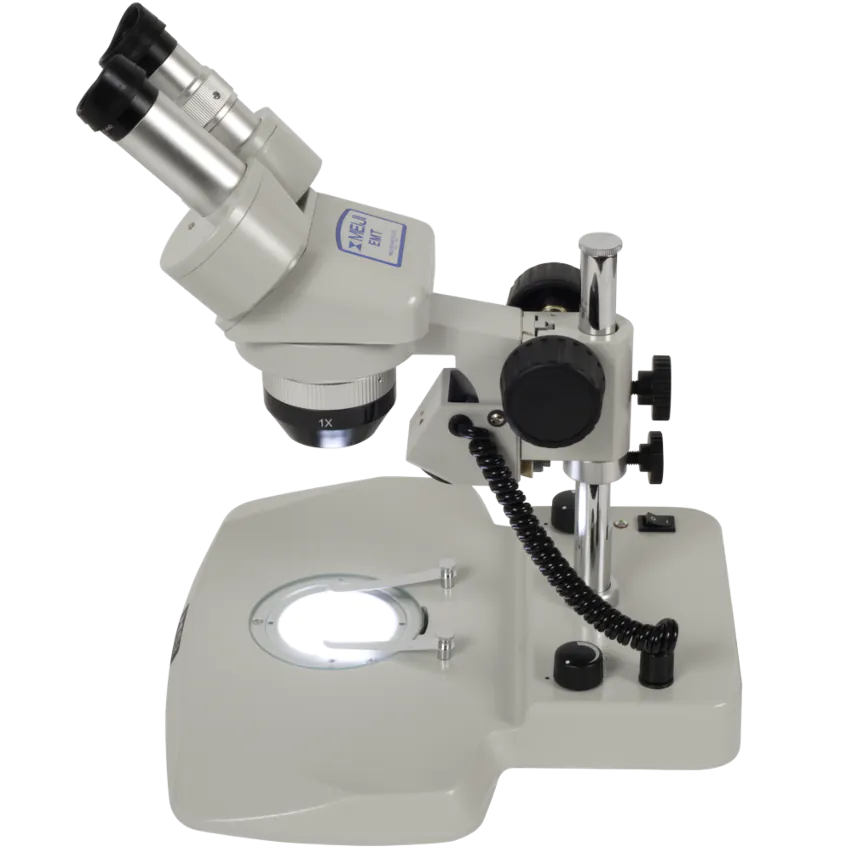

  • Meiji EMT-1-PKL Stereo Microscope System
  • Meiji EMT-1-PKL Stereo Microscope System stand
  • Meiji EMT-1-PKL Stereo Microscope Head
Description

Summary

The EMT-1-PKL is Meiji's EMT-2 dual-power 1x/2x stereo microscope body with the ergonomic PKL stand with 5W LED incident illumination. Lifetime Limited Warranty.

Microscope Head

The microscope body has 1x and 2x objectives, rotates 360º for convenient viewing options, and has a maximum working distance of 81 mm without an auxiliary Barlow lens. Depending on your choice of eyepieces (5x, 10x, 12.5x, 15x, 20x, or 30x), you can achieve magnification settings ranging from 5x-60x, without the corresponding cost of a zoom microscope.

The left eyetube has dioptric adjustment for convenient focusing of both eyes, and the eyepieces have an interpupillary adjustment range of 54-75 mm to adjust comfortably to the distance between your eyes. Binocular only.

Stand

The PKL is Meiji's efficient 5W LED-illuminated pole stand.

Stand

The PKL-1 is an ergonomic and pleasing pole stand with 5W LED Incident (top) illumination. It also includes a coarse focusing holder, single variable intensity control, reversible white and black stage plate, two stage clips, and power cord. Automatic voltage (100V to 240V) sensing power supply. Optional accessories include a 4" pole extension and mechanical stages. Base Dimensions: 330mm (12.99”) wide x 280mm (11”) deep.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • PKL1 Pole Stand
    General
    Brand Meiji Techno
    SKU PKL-1
    Feed - Title Meiji Techno PKL1 Pole Stand
    Feed - Description The EMZ13-P combines Meiji's higher magnification 10x-70x (10x eyepieces), zoom stereo microscope head with the plain P stand and optional illumination. Choose from a range of eyepieces. Binocular or trinocular formats. Lifetime Limited warranty.Microscope Head The EMZ-13 Series stereo heads offers a greater zoom magnification range than other EMZ microscope heads. The parfocal zoom range is 1.0x-7.0x for 10x-70x magnification with 10x eyepieces. As a result, the working distance is marginally lower than other heads at 90mm with a field of view range from 23mm-3.2mm with 10x eyepieces. An optional auxiliary barlow lens can increase the working distance to a maximum of 230mm. The head is inclined 45
    Feed - Custom Label 1 500-1000
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stage Plate Black/White Contrast Plate
    Post Diameter 20 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 20 mm
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

  • MA502 - 10X Super Widefield Paired Eyepieces

    MA501 - 5X Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces
    General
    Brand Meiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji Techno
    SKU MA502MA501MA503MA504MA521
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY
    Feed - Title Meiji Techno MA502 - 10X Super Widefield Paired EyepiecesMeiji Techno MA501 - 5X Super Widefield Paired EyepiecesMeiji Techno MA503 - 15X Super Widefield Paired EyepiecesMeiji Techno MA504 - 20X Super Widefield Paired EyepiecesMeiji Techno MA521 - 30X Super Widefield Paired Eyepieces
    Feed - Description The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45
    Feed - Custom Label 1 100-500100-500100-500100-500100-500
    Compatible With EM*EM*EM*EM*EM*
    Eyepiece Magnification 10x5x15x20x30x
Product Manuals
  • Meiji PKL Series Stand Manual: Download PDF [231k]
  • Meiji EMF/EMT/EMX Series Stereo Microscope Manual: Download PDF [817k]
