Meiji Techno MC60/70 BF/DF Measuring Microscope

List Price: $9,700.00

Starting at: $9,195.00

SKU: MC60/70

Availability: In stock

  • BF/DF Measuring microscope
  • Superior infinity corrected optics
  • 4 Plan Epi objectives
  • Vertical Koehler 21V 150W halogen illumination
  • Binocular or trinocular format
  • Mitutoyo Digimatic X-Y Indicators sold separately
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

  • $1,930.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

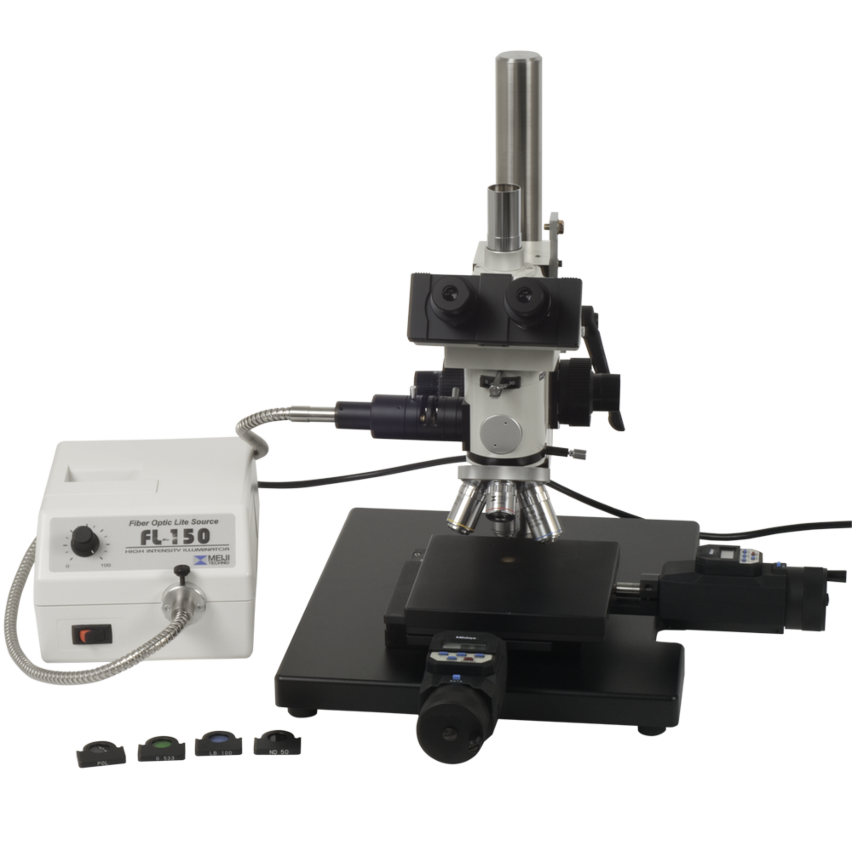

  • Meiji MC60/70 BF DF measuring microscope
  • Meiji MC60/70 Trinocular BF DF measuring microscope
  • Meiji MC60/70 BF DF measuring microscope
Description

Summary

The Meiji MC-60 series microscope line delivers top-line brightfield/darkfield measuring and simple polarization performance. Semi Plan Epi objectives, 150W illumination and optional 2-axis and 3-axis electronic digital readouts complete these precision inspection systems. They include Meiji's excellent infinity corrected optical system with four Planachromat Epi objectives and SWH 10x eyepieces. Koehler 150W fiber optic vertical halogen illumination is included. Lifetime Limited Warranty.

Optics

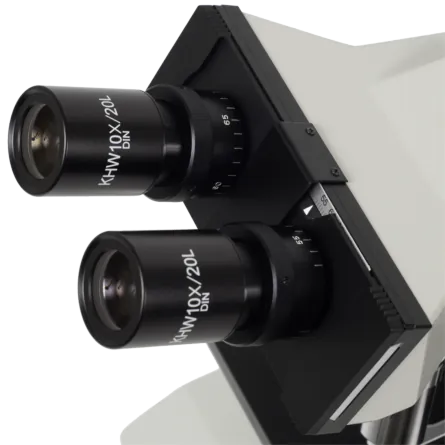

The Siedentopf head, inclined at 30°, is available in binocular or trinocular format and includes a depolarizer. Interpupilliary adjustment is 53mm to 75mm and there is a diopter on the left eyetube for individual eye focusing. Two HWF10x widefield high eyepoint FN 22 eyepieces are included, one of which includes a cross-line reticle and pointer.

Four Infinity-Corrected Plan Epi brightfield / darkfield objectives are included (BD5X, BD10X, BD20X, and BD50X). The objectives rotate smoothly on a ball bearing-mounted, quadruple nosepiece. The widefield HWF10X eyepiece and HWF10X-F focusing eyepiece enable magnification settings of 50x, 100x, 200x, and 500x.

Illumination

Full vertical Koehler illumination is standard, powered by a 21V 150W halogen lamp (available as either 110/120V or 220/230V). The lamp includes a darkfield lever, a sliding rotatable polarizer and a filter set that includes blue clear, green clear, neutral density (ND25), and polarizing filters in metal mounts. There is a port that accepts a flexible, 914mm (36 in.) single-arm fiber-optic light guide (included).

Base

The heavy-duty MAC 11 laminated base includes a machined, 38mm diameter pillar and mounting bracket. The base plate measures 300 x 300 x 25mm for excellent stability and is finished with protective black paint to withstand industrial environments. It supports a 150 x 150mm reflected light stage with 50mm X-Y precision movement and integrated brackets for mounting optional Mitutoyo digital X-Y stage micrometers.

Note: The MC60 above is shown with Mitutoyo Digital X-Y Stage Micrometers, which are sold separately.



Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MTI164-164 Mitutoyo Digimatic Indicator for X or Y Movement (Sold as Set of 2)
    SKU MTI164-164

  • MC60 BF/DF Binocular Measuring Microscope

    MC70 BF/DF Trinocular Metallurgical Measuring Microscope
    SKU MC60MC70
    System
    System Type Brightfield, Darkfield, MetallurgicalBrightfield, Darkfield, Metallurgical
    Optical Design Infinity CorrectedInfinity Corrected
    Head
    Head Type BinocularTrinocular
    Head Rotation LimitedLimited
    Ocular Angle 30°30°
    Diopter Adjustment DualDual
    Interpupillary Adjustment Linear SlidingLinear Sliding
    Interpupillary Adjustment Range 55mm - 70mm55mm - 70mm
    Trinocular Type  Switchable Beam-Split
    Trinocular Standard  C-mount
    View Orientation Upright ViewUpright View
    Ocular Tube Diameter 23 mm23 mm
    Body
    Nosepiece Orientation Front-facingFront-facing
    Nosepiece Style Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Stage Type Mechanical XYMechanical XY
    Stage Features Full Stage XYFull Stage XY
    Stage Dimensions 300 x 300mm300 x 300mm
    Stage Range of Movement (XY) 50mm50mm
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style WF Widefield (FN 18mm)WF Widefield (FN 18mm)
    Included Objectives (Qty) 44
    Optical Accessory
    Objective Lens Semi-APO PlanSemi-APO Plan
    Included Objective Types Brightfield, Darkfield, MetallurgicalBrightfield, Darkfield, Metallurgical
    Objective 1 Description Plan Semi APO Epi BD5X Infinity-CorrectedPlan Semi APO Epi BD5X Infinity-Corrected FN 22
    Objective 1 N.A. .10.10
    Objective 1 W.D. 17mm17mm
    Objective 2 Description Plan Semi APO Epi BD10X Infinity-CorrectedPlan Semi APO Epi BD10X Infinity-Corrected FN 22
    Objective 2 N.A. .25.25
    Objective 2 W.D. 7.48mm7.48mm
    Objective 3 Description Plan Semi APO Epi BD20X Infinity-CorrectedPlan Semi APO Epi BD20X Infinity-Corrected FN 22
    Objective 3 N.A. .4.4
    Objective 3 W.D. 5.2mm5.2mm
    Objective 4 Description Plan Semi APO Epi BD50X Infinity-CorrectedPlan Semi APO Epi BD50X Infinity-Corrected FN 22
    Objective 4 N.A. .75.75
    Objective 4 W.D. .38mm.38mm
    Filters Included Blue, GreenBlue, Green
    Light Specs
    Illumination Type HalogenHalogen
    Illumination
    Illumination Style Incident, Fiberoptic, Epi MetallurgicalIncident, Darkfield, Epi Metallurgical
    Collector Type KohlerKohler
    Coaxial Light Type FiberopticFiberoptic
    Coaxial Light Specification 21V 150W21V 150W
    Coaxial Light Control VariableVariable
    Power Supply 110v/220v110v/220v
    Accessories
    Included Extras Dust Cover, Spare BulbDust Cover, Spare Bulb
