Meiji Techno MC40T/50T BF Transmitted Light Measuring Microscope
List Price: $9,000.00
Starting at: $8,195.00
SKU: MC40T/50T
Availability: In stock
- BF Transmitted Light measuring microscope
- Superior infinity corrected optics
- 4 Plan Epi objectives
- Fiber Optic Koehler 21V 150W halogen illumination
- Binocular or trinocular format
- Mitutoyo Digimatic X-Y Indicators sold separately
- Lifetime Limited Warranty
Price as configured: $0.00
- Description
-
Summary
Designed for precision measurement duties, the MC40T/50T series, with transmitted illumination, can be used for a wide range of metallurgical applications requiring exacting measurement documentation. They include Meiji's excellent infinity corrected optical system with four Planachromat Epi objectives, 5x, 10x, 20x and 50x and two SWH 10x eyepieces. Koehler 150W fiber optic vertical halogen illumination is included. Lifetime Limited Warranty.
Optics
The Siedentopf head, inclined at 30°, is available in binocular or trinocular format and includes a depolarizer. Interpupilliary adjustment is 53mm to 75mm and there is a diopter on the left eyetube for individual eye focusing. Eyepieces include two HWF10x widefield high eyepoint eyepieces, FN 18, one of which includes a cross-line reticle and pointer.
Four Infinity-Corrected Plan Epi objectives are included (M5X, M10X, M20X, and M50X). The objectives rotate smoothly on a ball bearing-mounted, quadruple nosepiece. The widefield HWF10X eyepiece and HWF10X-F focusing eyepiece enable magnification settings of 50x, 100x, 200x, and 500x.
Illumination
Fiber optic Koehler illumination is standard, powered by a 21V 150W halogen lamp (available as either 110/120V or 220/230V). The lamp includes a sliding rotatable polarizer and a filter set that includes blue clear, green clear, neutral density (ND8), and polarizing filters in metal mounts.
There is a port in the stage which accepts a flexible, 914mm (36 in.) single-arm fiber-optic light guide (included). The MC40T/50T can also be converted back to reflected illumination by inserting the light guide into the vertical illuminator tube.
Base
The heavy-duty laminate base includes a machined, 38mm diameter pillar and mounting bracket. The base plate measures 300 x 300 x 25mm for excellent stability and is finished with protective black paint to withstand industrial environments. It supports a 150 x 150mm reflected light stage with 50mm X-Y precision movement and integrated brackets for mounting optional Mitutoyo digital X-Y stage micrometers.

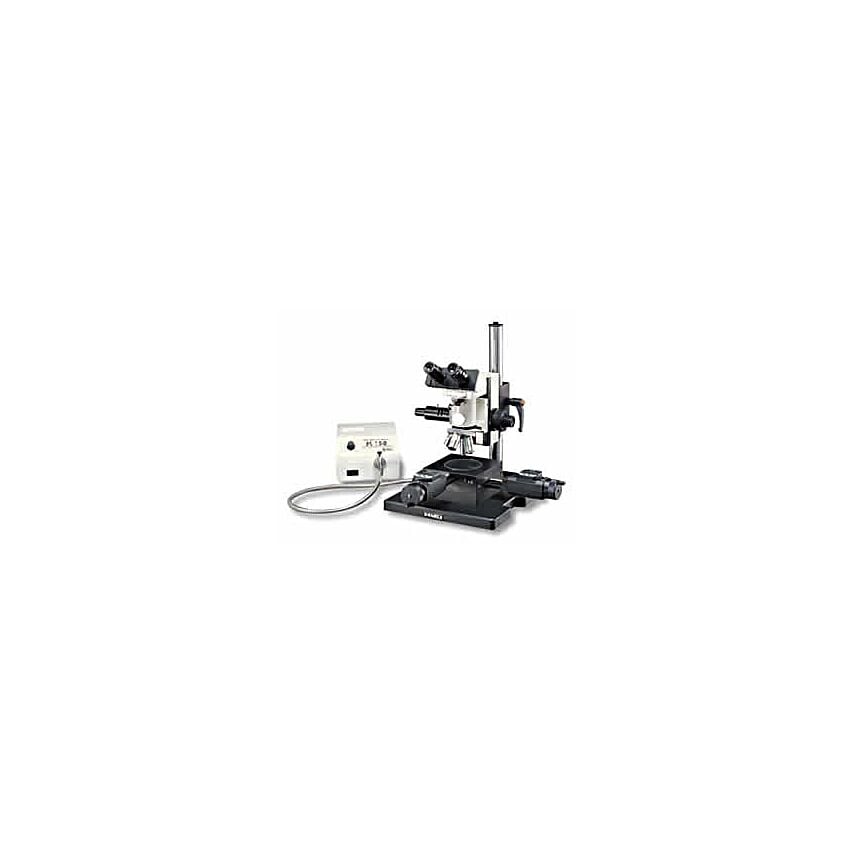

Note: The MC40 above is shown with Mitutoyo Digital X-Y Stage Micrometers, sold separately.
- Specifications
-
Specifications of Component Options
Select a component below to view related specifications.-
MC40T BF Binocular Metallurgical Measuring Microscope
MC50T BF Trinocular Metallurgical Measuring MicroscopeGeneral Brand Meiji Techno Meiji Techno SKU MC40T MC50T System System Type Brightfield, Metallurgical Brightfield, Metallurgical Optical Design Infinity Corrected Infinity Corrected Head Head Type Binocular Trinocular Head Rotation Limited Limited Ocular Angle 30° 30° Diopter Adjustment Dual Dual Interpupillary Adjustment Linear Sliding Linear Sliding Interpupillary Adjustment Range 55mm - 70mm 55mm - 70mm View Orientation Upright View Upright View Ocular Tube Diameter 23 mm 23 mm Body Nosepiece Orientation Front-facing Front-facing Nosepiece Style Quadruple (4) Quadruple (4) Focus Controls Coarse & Fine, Coaxial Coarse & Fine, Coaxial Focus Mechanism Rack & Pinion Rack & Pinion Focus Control Location Dual Ambidextrous Dual Ambidextrous Focus Controls Graduated? Yes Yes Stage Type Mechanical XY Mechanical XY Stage Features Full Stage XY Full Stage XY Stage Dimensions 300 x 300mm 300 x 300mm Stage Range of Movement (XY) 50mm 50mm Configuration Includes Eyepieces? Yes Yes Included Eyepiece Quantity 2 2 Included Eyepieces (X) 10X 10X Eyepiece Style WF Widefield (FN 18mm) WF Widefield (FN 18mm) Included Objectives (Qty) 4 4 Objective Lens Plan Plan Included Objective Types Brightfield, Metallurgical Brightfield, Metallurgical Objective 1 Description Plan Achromat Epi M5X Infinity-Corrected Plan Achromat Epi M5X Infinity-Corrected Objective 1 N.A. .10 .10 Objective 1 W.D. 20mm 20mm Objective 2 Description Plan Achromat Epi M5X Infinity-Corrected Plan Achromat Epi M5X Infinity-Corrected Objective 2 N.A. .25 .25 Objective 2 W.D. 7.48mm 7.48mm Objective 3 Description Plan Achromat Epi M5X Infinity-Corrected Plan Achromat Epi M5X Infinity-Corrected Objective 3 N.A. .4 .4 Objective 3 W.D. 5.2mm 5.2mm Objective 4 Description Plan Achromat Epi M5X Infinity-Corrected Plan Achromat Epi M5X Infinity-Corrected Objective 4 N.A. .75 .75 Objective 4 W.D. .38mm .38mm Filters Included Blue, Green Blue, Green Illumination Illumination Type Halogen Halogen Illumination Style Transmitted, Incident, Fiberoptic, Epi Metallurgical Transmitted, Incident, Fiberoptic, Epi Metallurgical Collector Type Kohler Kohler Coaxial Light Type Fiberoptic Fiberoptic Coaxial Light Specification 21V 150W 21V 150W Coaxial Light Control Variable Variable Power Supply 110v/220v 110v/220v -
MTI164-164 Mitutoyo Digimatic Indicator for X or Y Movement (Sold as Set of 2)General Brand Meiji Techno SKU MTI164-164 Feed - Title Meiji Techno MTI164-164 Mitutoyo Digimatic Indicator for X or Y Movement (Sold... Feed - Description Summary Designed for precision measurement duties, the MC60T/70T series, with transmitted illumination, can be used for a wide range of metallurgical applications requiring exacting measurement documentation. They include Meiji's excellent infinity corrected optical system with four Planachromat Epi objectives, 5x, 10x, 20x and 50x and two SWH 10x eyepieces. Koehler 150W fiber optic vertical halogen illumination is included. Lifetime Limited Warranty. Optics The Siedentopf head, inclined at 30 Feed - Custom Label 1 500-1000
-
