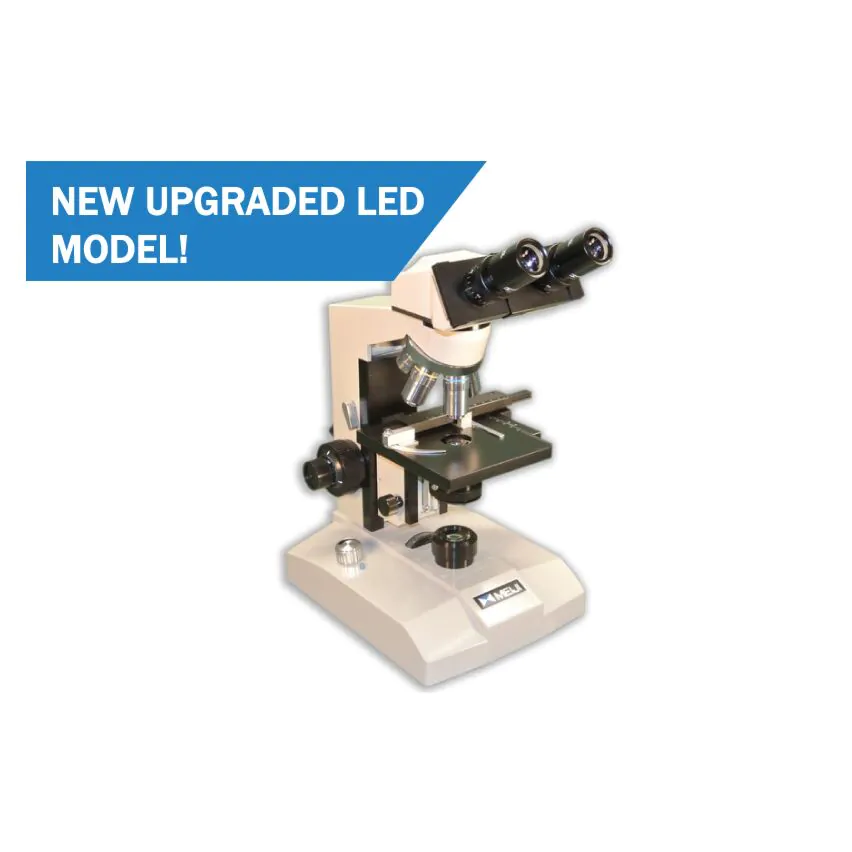

Meiji Techno ML2200L LED Binocular Brightfield Biological Microscope

Includes: • ML2200L: The ML2200L is a Brightfield Binocular Laboratory Compound microscope with Koehler LED illumination with forward facing quadruple ball bearing nosepiece. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. The low voltage, high intensity, pre-centered halogen lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. Rectangular attached mechanical stage with 75mm (X) and 40mm (Y) movement with adjustable slide holder Graduations and vernier reading to 0.1mm. Ergonomically placed comfortable low positioned coaxial controls. • MA602: Inclined Binocular head Inclined at 30°, 360° rotatable, dual graduated diopter eyetubes with interpupillary adjustments 52mm to 72mm ml2200l head • MA406 qty#2: DIN HWF10X eyepiece, Field No. 18, (each) ml2200l eyepieces • MA622: 4X/0.10 Planachromat objective • MA623: 10X/0.25 Planachromat Objective • MA625: 40X/0.65 Planachromat Objective, spring loaded • MA627: 100X/1.25 Planachromat Objective, spring loaded ml2200l objectives 1 • MA661: Achromatic substage condenser 1.25 NA with iris diaphragm and 30mm filter tray CONDENSER • Stage: Mechanical X-Y stage with attached finger assembly and drop down post, attached stage is 120mm x 140mm rectangular mechanical stage with movements of 75mm (X) x 40mm (Y) and is graduated with Vernier readings to 0.1mm, equipped with low positioned drop down coaxial controls.(Factory Installed) • Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division. Incorporates tension adjustment and safety Auto-focus stage stop lever • MA289/05: Blue filter, clear, 29.8mm diameter • MA676: Attachable clinical specimen holder for MA596R and MA596L • MA595R: Attached Graduated mechanical stage, 30mm X 70mm movement with drop-down coaxial controls (right) for the ML series ( left hand available upon request) • LED/SP-1: 3W LED, 5500K color temperature • MA808/10: AC adapter for ML2000L, ML5000L, ML6100L, ML6500L, and ML9000L series. AC Input: 100V~240V, DC Output: 5V 2.5A • MA700: Immersion Oil. 15cc • MA701: Dust Cover for ML2000L • Manual: Meiji Techno America ML2000L Manual • Warranty: Limited Lifetime Warranty Card Product Information: • Manufactured: 100% MADE IN JAPAN • Warranty: LIMITED LIFETIME WARRANTY • Customer Support: 1-(800) 832-0060 (U.S.A Based) Package Information: • Weight: 21.0 lbs (9.5 kg) • Box Size: 22 x 16 x 23 inches • Footprint: 254mm (D) x 203mm (W) • Binocular head type: 255 mm(D) x 395 mm (H) x 195mm(W) 21.0 lbs. (9.5kg) • Trinocular head type: 255 mm(D) x 440 mm (H) x 195mm(W) 22.0 lbs. (10.0kg) Model Head Illumination Eyepieces Condensers Objectives Stage ML2200L Binocular Koehler LED Illumination KWH10x FN22 Plan Epi BD 5x, 10x, 20x, 50x Planachromat Brightfield 4x, 10x, S40x, S100x oil Attached ML2300L Trinocular ML2400L Binocular Flat-Top ML2500L Trinocular ML2600L Binocular ML2700L Trinocular VIEWING HEADS Available with standard binocular heads or trinocular heads for photomicrography, 30° inclined eyetubes with adjustable diopter settings and interpupillary distance, 360° rotatable. EYEPIECES Paired DIN KHW10x, FN 20. OBJECTIVES CHANGER Smooth-operating, ball bearing mounted, quadruple nosepiece. OBJECTIVES S. Flat Achromats, SM Planachromats, Planachromats, or Phase Contrast. STAND Attached mechanical stage: 120mm x 140mm surface with 75mm (X) by 40mm (Y) movement, graduated with vernier readings to 0.1 mm, drop-down right or left-handed controls. Flat-top stage: 171mm x 140mm surface with 80mm (X) by 52mm (Y) movement, graduated with vernier readings to 0.1 mm, detachable specimen guide, drop-down right of left-handed controls. CONDENSERS Standard models have either an Achromatic NA 1.25 condenser with iris diaphragm and filter tray for brightfield work, simple NA 1.25 slider phase condenser, or an NA 1.25 Zernike phase condenser with filter tray and independently centerable annuli for phase contrast. Cardioid-type NA 1.25 darkfield condenser for high power (100x objective only) darkfield work is optional. ILLUMINATION Built-in, LED, variable-intensity Koehler illumination for apertures up to 1.25. PHOTOMICROGRAPHY Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
