Summary

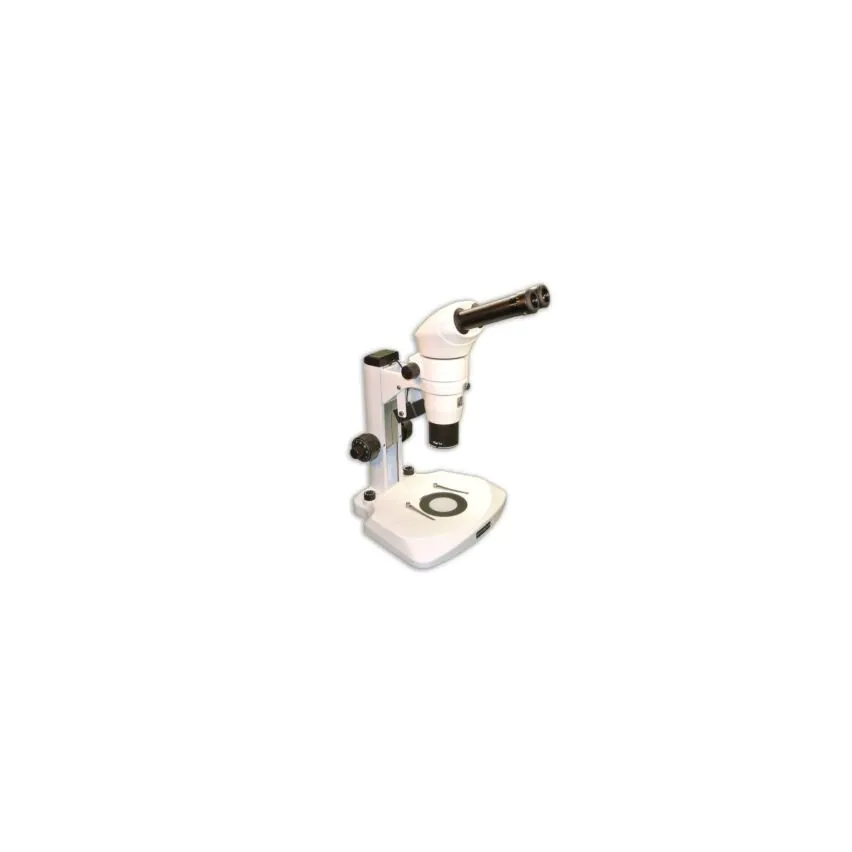

The new CZ1100 series combines Meiji's classic CMO type zoom stereo body with binocular or trinocular head and LED stand for a research stereo microscope of exacting quality and affordability.

Microscope Body

The body is the central component of any CMO system, and the research-grade optics offer a 10:1 zoom ratio and a magnification of 8x to 80x with a 1.0x Panachromatic main objective. The zoom controls indicate magnification at positive click-stops throughout the zoom range, making photograph framing and measuring easily repeatable and consistent.

The zoom optics are housed in a rugged aluminum alloy body for increased stability and durability, and all components are coated with an anti-static finish to protect sensitive specimens.

Viewing Head

There are two types of viewing heads. The CZ1105 standard binocular head is inclined 20° with an interpupillary adjustment range of 55mm-75mm. Alternatively, the CZ1100 Ergonomic head offers adjustable viewing angles through 5°-35°, also with 55mm-75mm interpupillary adjustment.

Stand

The CZ1100 series features incident and transmitted 5W LED lamps with independent variable intensity control, aluminum alloy auto-voltage sensing base, anti-static finish, a 94.5mm diameter clear glass stage plate and two stage clips.

• 	CZ-1105 8X-80X Zoom CMO Binocular LED Stereo Microscope	CZ-1105TR 8X-80X Zoom CMO Trinocular LED Stereo Microscope	CZ-1100TR 8X-80X Zoom CMO Ergonomic Trinocular LED Stereo Microscope	CZ-1100 8X-80X Zoom CMO Ergonomic Binocular LED Stereo Microscope
  General
  Brand	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno
  SKU	CZ-1105	CZ-1105TR	CZ-1100TR	CZ-1100
  Head
  Head Type	Binocular	Trinocular	Trinocular, Ergonomic	Binocular, Ergonomic
  Optical Design	Parallel CMO	Parallel CMO	Parallel CMO	Parallel CMO
  Magnification Type	Zoom	Zoom	Zoom	Zoom
  Ocular Tube Diameter	23 mm	23 mm	23 mm	23 mm
  Diopter Adjustment	Dual	Dual	Dual	Dual
  Interpupillary Adjustment	Arc (Seidentopf)	Arc (Seidentopf)	Arc (Seidentopf)	Arc (Seidentopf)
  Interpupillary Adjustment Range	54mm - 75mm	54mm - 75mm	54mm - 75mm	54mm - 75mm
  Head Rotation	360 Degrees	360 Degrees	360 Degrees	360 Degrees
  Minimum Objective (X)	8X	8X	8X	8X
  Maximum Objective (X)	80X	80X	80X	80X
  Zoom Ratio	1:10	1:10	1:10	1:10
  Zoom Control Type	Detent Click-Stops	Detent Click-Stops	Detent Click-Stops	Detent Click-Stops
  Zoom Indicator Graduations	Yes	Yes	Yes	Yes
  Parfocal	Yes	Yes	Yes	Yes
  Included Eyepieces (X)	10X	10X	10X	10X
  Body
  Body Material	All-Metal	All-Metal	All-Metal	All-Metal
  Compatibility
  Imaging Compatibility (with adapters)	23mm , C-Mount	23mm , C-Mount	23mm , C-Mount	23mm , C-Mount
  Available Imaging Mounts	0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)	0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)	0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)	0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
  Head Ring Mount Diameter	84 mm	84 mm	84 mm	84 mm
  Max Working Distance (standard)	78mm	78mm	78mm	78mm
  Reticles
  Reticles Available?	Yes	Yes	Yes	Yes
  Reticle Diameter (10X Eyepiece)	25mm OD	25mm OD	25mm OD	25mm OD
  Reticle Diameter (15X Eyepiece)	19mm OD	19mm OD	19mm OD	19mm OD
  Reticle Diameter (20X Eyepiece)	19mm OD	19mm OD	19mm OD	19mm OD

• Meiji RZ Series Stereo Microscope Manual: Download PDF [2.4M]
