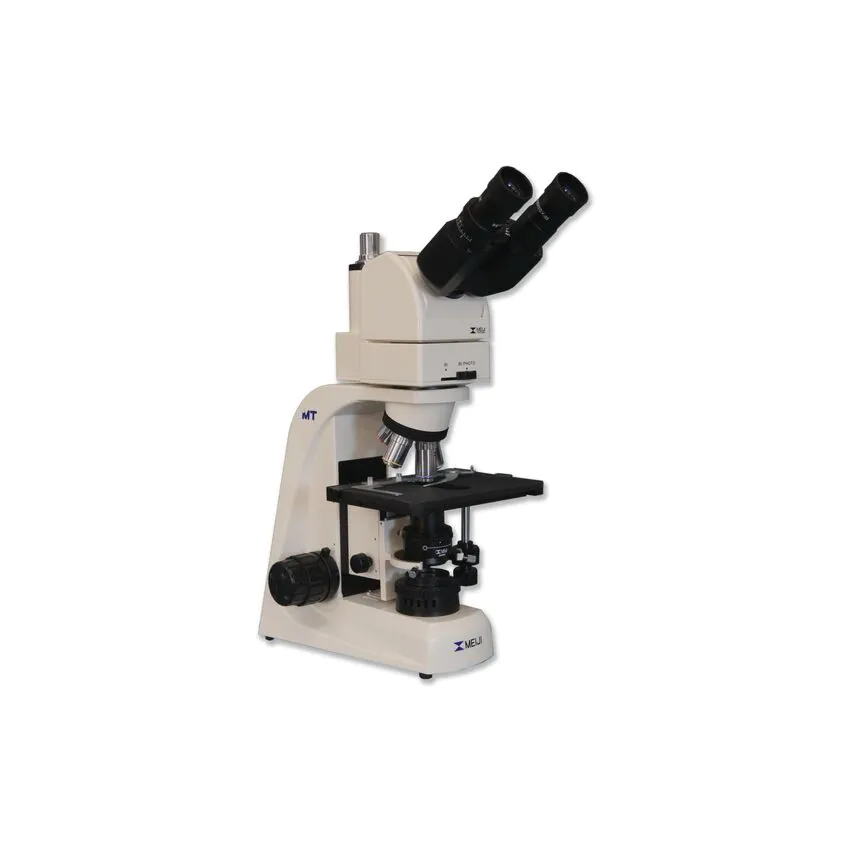

Meiji Techno MT5300ELV Veterinary LED Ergonomic Trinocular Brightfield Biological Microscope
SKU:
MT5300ELV
In stock
You pay: $6,980.00
Free Shipping,
30 Day Money Back Guarantee
- Ergonomic Design: Features a Siedentopf-type tilting trinocular head adjustable from 10° to 50°, allowing researchers of various heights to maintain a relaxed, comfortable posture during extended observations.
- Advanced ICOS™ Optics: Equipped with Meiji Techno’s Infinity Corrected Optical System and improved U. Plan objectives, delivering high-contrast, research-grade images with an excellent cost-to-performance ratio.
- Precision Japanese Engineering: Built with a larger stage and robust coarse/fine controls, this Japanese-made system is designed to meet the rigorous demands of clinical laboratories and medical research.
- Enhanced Visual Clarity: Utilizes high-intensity Halogen illumination for true-to-life color rendering and 30.0mm I.D. eyetubes for a wider field of view and superior light transmission.
MT5300ELV Ergonomic Trinocular Biological Microscope
The MT5300ELV Series is one of Japan's most rugged and fully equipped biological microscope systems. It features a proprietary Ergonomic Tilting Trinocular head, adjustable from 10° to 50°, to accommodate researchers of various heights and postures. Built on a rigid, chemical-resistant cast aluminum frame, it utilizes Meiji Techno’s ICOS™ (Infinity Corrected Optical System) and high-performance U. Plan optics to deliver exceptionally bright, crisp images with superior flat fields of view.
Key Features
| Optical System | Infinity Corrected Optical System (ICOS™) F=200mm |
| Ergonomic Head | Tilting Trinocular (10° to 50°), Siedentopf type, I.P. adj. 53mm–75mm |
| Illumination | 3W Transmitted LED, 5500K color temperature with auto-voltage sensing |
| Stage | Ceramic-coated flat-top stage (170mm x 140mm) with travel range 80mm x 52mm |
| Focusing | Precision coaxial coarse/fine controls, 2 microns per division, with tension adjustment |
| Manufactured | 100% Made in Japan | Limited Lifetime Warranty |
Included Components
Objectives (U. Plan Infinity)
- 4X: N.A 0.10, W.D. 25.8mm
- 10X: N.A. 0.25, W.D. 10.7mm
- 20X: N.A. 0.40, W.D. 7.29mm
- 40X: N.A. 0.65, W.D. 0.5mm
- 100X (Oil): N.A. 1.25, W.D. 0.23mm
Accessories & Hardware
- Eyepieces: Paired SWH10X (F.N. 22) with rubber eyeshields
- Condenser: Abbe N.A. 1.25 with iris diaphragm
- Video Port: MA958 Photo/video attachment (80/20 beam-splitter)
- Filter: MA856/05 Blue Clear LB100 Filter
- Maintenance: Dust cover, instruction manual, and spare fuse
Shipping & Dimensions
- Weight: 34 lbs (Total Package) / 33 lbs (Trinocular Ergonomic unit)
- Box Size: 16 x 14 x 21 inches
- Footprint: 263mm (D) x 176mm (W)
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
