Meiji Techno MT5300LV Veterinary LED Trinocular Brightfield Biological Microscope
SKU:
MT5300LV
In stock
You pay: $4,050.00
Free Shipping,
30 Day Money Back Guarantee
- Optimized for Veterinary Clinics: A preconfigured compound biological series designed specifically for in-house veterinary laboratory diagnostics.
- Full Infinity Optical Suite: Equipped with a complete set of U. Planachromat objectives (4X, 10X, 20X, 40X, and S100X oil) for superior image clarity and a wide field of view.
- Precision Control: Features a smooth-operating mechanical stage and ergonomic coarse/fine focus knobs with integrated stage lock and tension adjustment.
- Advanced Illumination: Includes a 1.25 N.A. Abbe Condenser and an auto-voltage sensing base available in either high-efficiency LED or Halogen lighting.

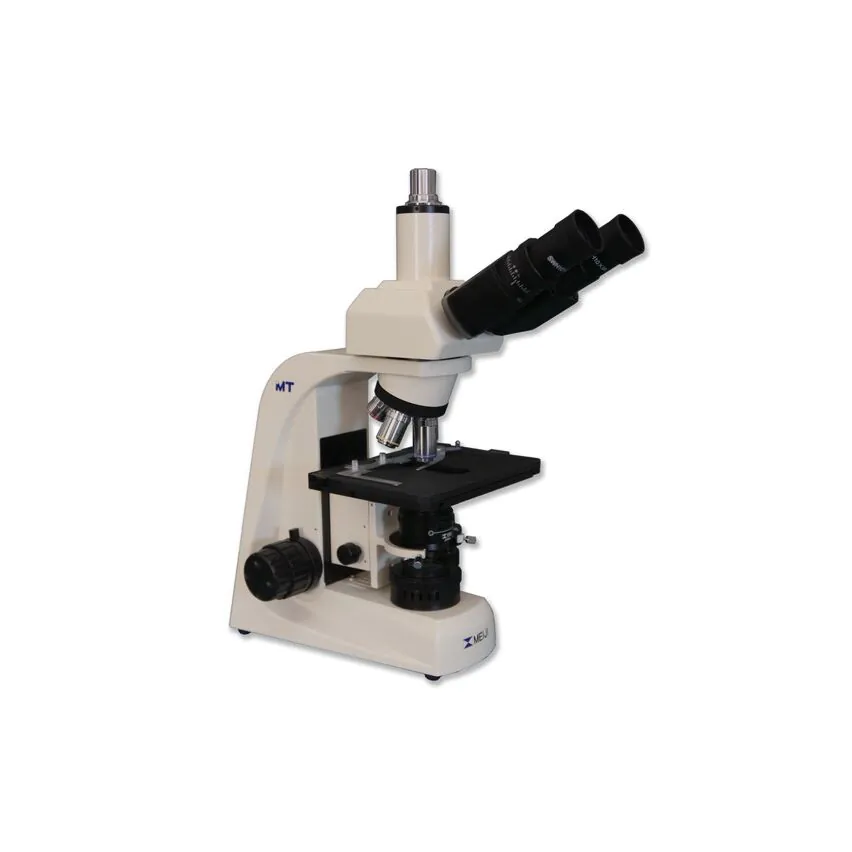

MT5300LV Trinocular Brightfield Biological LED Microscope
The MT5300LV Series is one of Meiji Techno's most rugged, fully equipped biological microscope systems, 100% made in Japan. Designed for clinical laboratories and researchers, it features advanced 3W LED illumination (5500K) which provides energy efficiency, a long service life, and constant color temperature for precise documentation.
Built on a rigid, cast aluminum alloy frame with a chemical-resistant finish, the MT5300LV utilizes the ICOS™ (Infinity Corrected Optical System). These newly engineered U. Plan optics deliver exceptionally bright, crisp images with superior flat fields of view and excellent color rendition across multiple modes including Brightfield and Phase Contrast.
Key Specifications
| Optical System | Infinity Corrected Optical System (ICOS™) F=200mm |
| Head | Siedentopf Trinocular; 30° incline; 80/20 Beamsplitter |
| Illumination | 3W Transmitted LED (5500K) with adjustable rheostat |
| Stage | Ceramic-coated flat-top stage (170mm x 140mm) |
| Focusing | Coaxial coarse/fine controls; 2-micron graduation; tension adjustment |
| Nosepiece | Smooth ball-bearing quintuple nosepiece |
System Components & Included Accessories
Optical Components
- Eyepieces: MA817 SWH10X Widefield (F.N. 22) with anti-fungus coating and rubber eyeshields.
- Objectives: U. Plan Infinity Objectives: 4X, 10X, 20X, 40X, and 100X (Oil).
- Condenser: MA910 Abbe Condenser (N.A. 1.25) with iris diaphragm and dove-tail mount.
Included Hardware
- MA816 Trinocular Siedentopf Head with graduated diopter.
- MA918R Ceramic coated flat-top stage with attachable finger assembly.
- MA856/05 Blue Clear Filter (44.0mm diameter).
- MA701 Protective Dust Cover.
- Voltage-appropriate AC electric cord.
Shipping & Warranty
- Manufacturing: 100% Made in Japan
- Warranty: Limited Lifetime Warranty
- Shipping Weight: 34 lbs (15.4 kg)
- Box Dimensions: 16 x 14 x 21 inches
- Footprint: 263mm (D) x 176mm (W)
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
