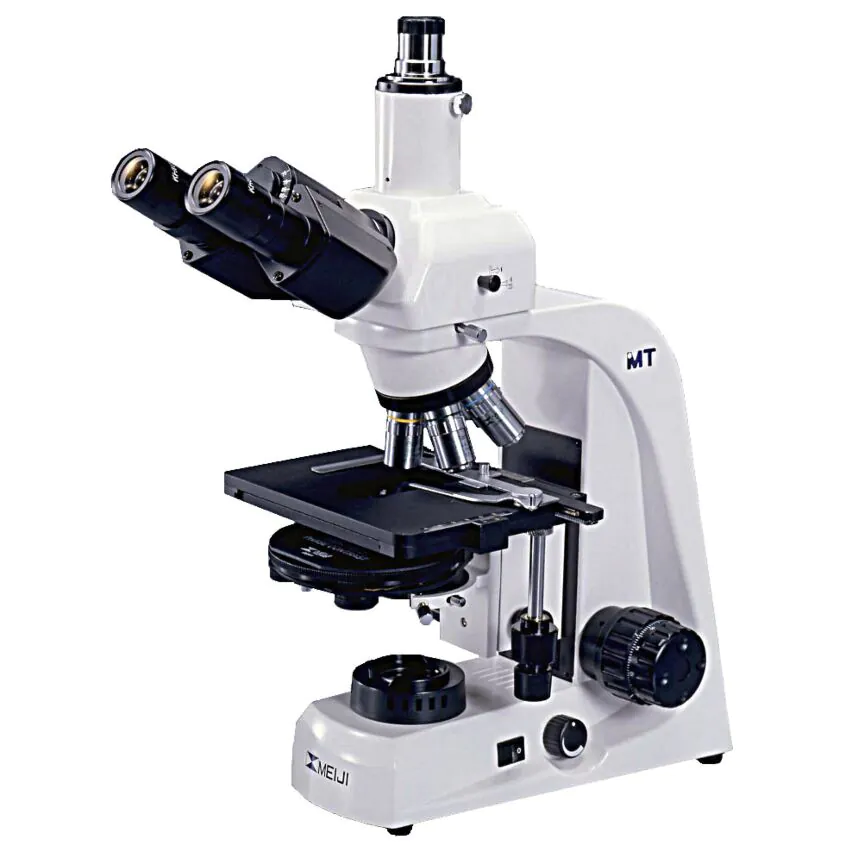

Meiji Techno MT5310L Trinocular LED Phase Contrast Microscope

The Meiji MT5310L is a laboratory-grade, trinocular phase contrast compound microscope ideal for education, research or advanced laboratory applications. It includes SWH10x eyepieces with centering telescope, 4 Infinity-Corrected U. Plan Phase objectives (4x, 10x, 40xS, 100xS Oil) in a reversed, quintuple, ball-bearing nosepiece. The eyetubes are inclined 30 degrees for comfortable viewing, rotatable 360 degrees and offer 52-72mm of interpupillary adjustment.

For photo work, the trinocular head features a sliding beam splitter which directs 100% of the light to the eyepieces or 80% to the trinocular port and 20% to the right eyepiece.

The 171mm x 140mm ceramic-coated flat-top stage features 78mm x 52mm X-Y movement and graduated, right-handed coaxial controls with .1mm vernier readings (optional left-handed stage controls are available). Also included are coaxial, graduated coarse/fine focus controls with tension adjustment and safety stop.

Clear LED illumination feeds a built-in Zernike N.A. 1.25 sub-stage condenser with green filter and quick-change dovetail mount. Accessories include a manual and dust cover.

The Meiji MT5000 Series is a line of proven, dependable microscopes built around high-quality optics, LED or Halogen illumination and an ergonomic, comfortable design. They come in a wide range of configurations to suit day-to-day use in the university classroom or research laboratory.

All Meiji microscopes are manufactured under the strict guidelines established under ISO 9001:2000 Standards and are sold with Meiji Techno's limited lifetime warranty.
