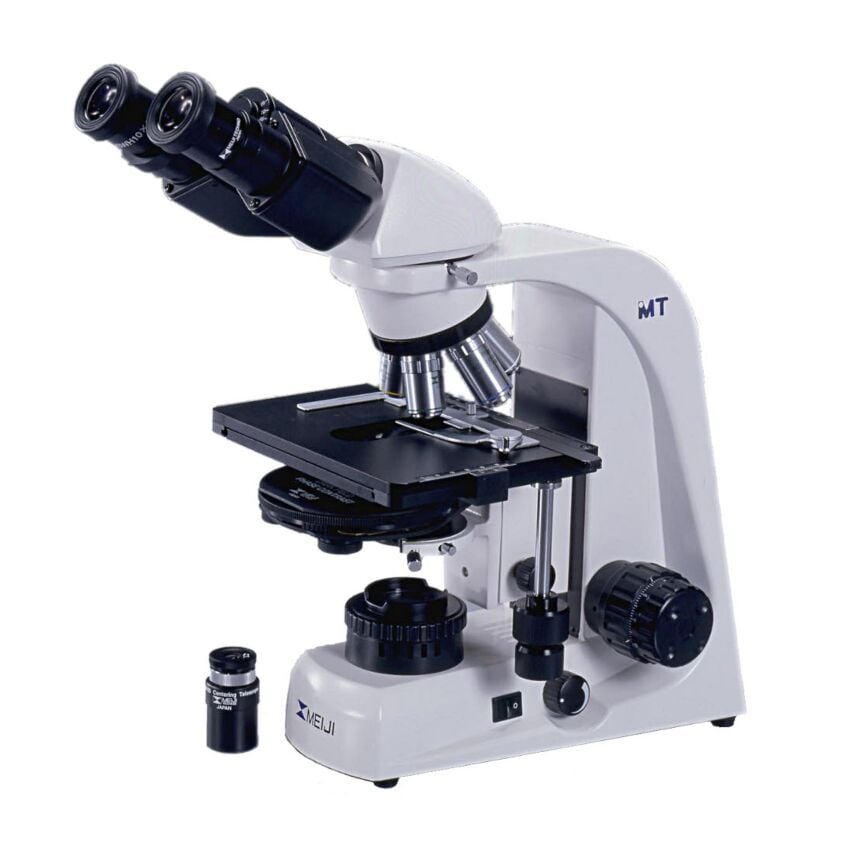

Meiji Techno MT5210/5310 Laboratory Phase Contrast Microscope

List Price: $4,255.00

Starting at: $3,799.00

SKU: MT5210/5310

Availability: In stock

  • 4 Research Grade, Plan Semi-Apochramatic objectives
  • Phase Contrast + Zernike Condenser
  • Windowpane eyepieces
  • Halogen or LED illumination
  • Binocular or trinocular format
  • Standard or Ergonomic Inclination
  • Quintuple turret for extra lens
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji MT5210/5310 Laboratory Phase Contrast Microscope
  • Meiji MT5210/5310 Laboratory Phase Contrast Microscope
  • Meiji MT5210/5310 Laboratory Phase Contrast Microscope  objectives
  • Meiji MT5210/5310 Laboratory Phase Contrast Microscope focus
  • Meiji MT5210/5310 Laboratory Phase Contrast Microscope eyepieces
  • Meiji MT5210/5310 Laboratory Phase Contrast Microscope condenser
Description

Summary

The MT 5210 and MT5310 series of phase contrast microscopes are similar to the MT4000 phase series but with significantly better objective lenses, larger eyepieces and a larger stage. The objectives are semi apochramatic which are better quality than Plan objectives. The eyepieces are Super Widefield High Eyepoint eyepieces F.N.22 and the stage measures a generous 191mm x 126mm. Available in either binocular or trinocular format and with LED or halogen Koehler illumination. Lifetime Limited Warranty.

Optics

A Siendentopf head in either binocular or trinocular format is inclined at an ergonomic 30 degrees for more comfortable viewing. An optional ergonomic head offers 10 to 50 degrees of inclination range for even greater flexibility and viewing comfort. The head includes 10x Super Widefield High Eyepoint eyepieces F.N.22. Optional 15x and 20x eyepieces are available as is a High Eyepoint 10x focusable eyepiece that accepts 25mm reticles. The DIN Infinity Corrected Optical System (ICOS) includes four Semi Plan Apochramatic Phase Contrast objective lenses (PH4x, PH10x, PH40xS and PH100x oil), set in a ball bearing mounted, quintuple nosepiece.

An 80/20 beam splitter is employed for photomicrography in the trinocular head (100% to eyetubes or 80% to phototube & 20% to the eyetube). Please note that you will need to purchase an appropriate trinocular adapter for your camera.

Stage & Focus

A ceramic coated mechanical stage has right-handed (left-handed is available on request), drop-down controls and measures a generous 191mm x 126mm. The range of motion is 100mm(X) x 100mm(Y). There are dual-sided Coaxial focus controls.

Condenser & Illumination

Zernike Phase Condenser, NA 1.25 with centerable phase annuli for 10x, 20x, 40x, 100x with brightfield/darkfield stop for 40x objective, set - in quick change dovetail mount. Illumination is either 30W halogen or LED Koehler.

Accessories

Manual, dust cover.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MT5210H Binocular Halogen Phase Contrast Microscope

    MT5210L Binocular LED Phase Contrast Microscope

    MT5210EH Ergonomic Binocular Halogen Phase Contrast Microscope

    MT5210EL Ergonomic Binocular LED Phase Contrast Microscope

    MT5310H Trinocular Halogen Phase Contrast Microscope

    MT5310L Trinocular LED Phase Contrast Microscope

    MT5310EH Ergonomic Trinocular Halogen Phase Contrast Microscope

    MT5310EL ERgonomic Trinocular LED Phase Contrast Microscope
    SKU MT5210HMT5210LMT5210EHMT5210ELMT5310HMT5310LMT5310EHMT5310EL
    Warranty Limited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime Warranty
    Product Weight 17.600017.600017.600017.600019.200019.200019.200019.2000
    Product Length 390 mm390 mm390 mm390 mm390 mm390 mm390 mm390 mm
    Product Width 210 mm210 mm210 mm210 mm210 mm210 mm210 mm210 mm
    Product Height 410 mm410 mm410 mm410 mm465 mm465 mm465 mm465 mm
    System
    System Type Brightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase Contrast
    Optical Design Infinity CorrectedInfinity CorrectedInfinity CorrectedInfinity CorrectedInfinity CorrectedInfinity CorrectedInfinity CorrectedInfinity Corrected
    Head
    Head Type BinocularBinocularBinocular, ErgonomicBinocular, ErgonomicTrinocularTrinocularTrinocular, ErgonomicTrinocular, Ergonomic
    Head Rotation  360 Degrees360 Degrees  360 Degrees360 Degrees
    Ocular Angle 30°30°Variable ErgonomicVariable Ergonomic30°30°Variable ErgonomicVariable Ergonomic
    Diopter Adjustment SingleSingleSingleSingleSingleSingleSingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 53 – 75 mm53 – 75 mm53 – 75 mm53 – 75 mm53 – 75 mm53 – 75 mm53 – 75 mm53 – 75 mm
    Trinocular Type  Switchable Beam-SplitSwitchable Beam-SplitSwitchable Beam-SplitSwitchable Beam-Split
    Trinocular Standard  23mm DIN23mm DIN23mm DIN23mm DIN
    View Orientation Inverted ViewInverted ViewInverted ViewInverted ViewInverted ViewInverted ViewInverted ViewInverted View
    Ocular Tube Diameter 30 mm30 mm30 mm30 mm30 mm30 mm30 mm30 mm
    Body
    Nosepiece Orientation ReversedReversedReversedReversedReversedReversedReversedReversed
    Nosepiece Style Quintuple (5)Quintuple (5)Quintuple (5)Quintuple (5)Quintuple (5)Quintuple (5)Quintuple (5)Quintuple (5)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & PinionRack & PinionRack & PinionRack & PinionRack & PinionRack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual AmbidextrousDual AmbidextrousDual AmbidextrousDual AmbidextrousDual AmbidextrousDual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYesYesYesYesYesYesYes
    Stage Type Mechanical XYMechanical XYMechanical XYMechanical XYMechanical XYMechanical XYMechanical XYMechanical XY
    Stage Features Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)
    Configuration
    Includes Eyepieces? YesYesYesYesYesYesYesYes
    Included Eyepiece Quantity 22222222
    Included Eyepieces (X) 10X10X10X10X10X10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 100X100X100X100X100X100X100X100X
    Max Standard Mag 1000X1000X1000X1000X1000X1000X1000X1000X
    Included Objectives (Qty) 44444444
    Objective Lens PlanPlanPlanPlanPlanPlanPlanPlan
    Included Objective Types Phase ContrastPhase ContrastPhase ContrastPhase ContrastPhase ContrastPhase ContrastPhase ContrastPhase Contrast
    Condenser
    Condenser Type Zernike PhaseZernike PhaseZernike PhaseZernike PhaseZernike PhaseZernike PhaseZernike PhaseZernike Phase
    Condenser Features Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm1.25 mm1.25 mm1.25 mm1.25 mm1.25 mm1.25 mm
    Filter Diameter 44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm
    Illumination
    Illumination Type LED LED HalogenLEDHalogenLED
    Illumination Style TransmittedTransmittedTransmittedTransmittedTransmittedTransmittedTransmittedTransmitted
    Collector Type KohlerKohlerKohlerKohlerKohlerKohlerKohlerKohler
    Collector Features Field Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter Holder
    Transmitted Light Type HalogenLEDHalogenLEDHalogenLEDHalogenLED
    Transmitted Light Specification 6V 30WLED6V 30WLED6V 30WLED6V 30WLED
    Transmitted Light Control VariableVariableVariableVariableVariableVariableVariableVariable
    Power Supply 110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing
    Compatibility
    Imaging Compatibility (with adapters)  23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount
    Available Imaging Mounts  0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.7X C-Mount, 1.0X C-Mount, Open C-Mount (no lens)0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.7X C-Mount, 1.0X C-Mount, Open C-Mount (no lens)0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.7X C-Mount, 1.0X C-Mount, Open C-Mount (no lens)0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.7X C-Mount, 1.0X C-Mount, Open C-Mount (no lens)
    Accessories
    Included Extras Dust CoverDust CoverDust CoverDust CoverDust CoverDust CoverDust CoverDust Cover
