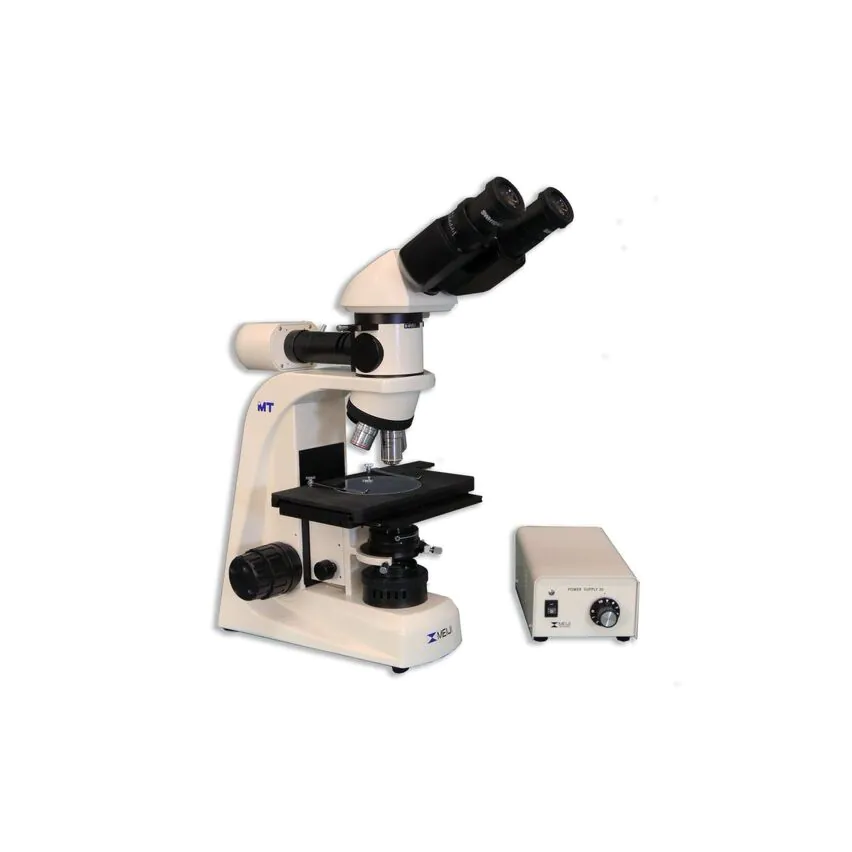

Meiji Techno MT8000L Metallurgical Binocular Upright Brightfield Compound Microscope with Infinity Corrected Plan EPI 5X, 10X, 20X, 50X and Vertical Koehler LED Incident or Transmitted Light

SKU:

MT8000L

In stock

You pay: $8,000.00

Free Shipping,

30 Day Money Back Guarantee

Advanced ICOS™ Optics: Utilizes the Infinity Corrected Optical System to deliver high-resolution, high-contrast imaging perfect for analyzing grain structures, coatings, and microstructural features.
Enhanced EPI-Plan Objectives: Equipped with long-working-distance 5X, 10X, 20X, 50X, and 100X objectives that provide a flat, distortion-free field of view for precise industrial QC.
High-Intensity LED Illumination: Features energy-efficient reflected LED lighting that offers stable, color-consistent illumination with minimal heat output for long-term operational use.
Durable & Ergonomic Design: Engineered with a rugged ceramic-coated mechanical stage and precision Japanese components, all backed by a limited lifetime warranty.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

Components & Accessories

Included Items

MT8000L: Binocular Brightfield and Simple Polarization Metallurgical Compound Microscope. Features Incident Vertical LED (Reflected) and Transmitted 6V 30W Halogen illumination, Infinity Corrected optical system (F-200MM), quintuple nosepiece, and auto-voltage sensing power supply.
MA815: Binocular head – Siedentopf type. Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.).
MA817 (x2): SWH10X Widefield high eyepoint eyepieces, Field No. 22, tube O.D. 30.0mm.
MA906 (x2): Eyeshields for MA817 SWH 10X eyepieces.
Plan Epi Objectives (Included):
- MA870: 5X, N.A. 0.10, W.D. 20.9mm
- MA871: 10X, N.A. 0.25, W.D. 7.7mm
- MA872: 20X, N.A. 0.40, W.D. 5.6mm
- MA873: 50X, N.A. 0.75, W.D. 0.38mm
MA927/L: Vertical Koehler Illuminator (LED) with Clear Blue, Clear Green, ND 25 Neutral Density, and Polarizing filters in metal mounts.
MA927/05L: Autovoltage sensing power supply for MA927/L (100V-240V).
Filters: MA475/05 (Blue), MA476 (Green), MA774 (ND50), MA497 (Polarizing) – all 20mm diameter in metal mounts.
MA942: Ceramic coated flat-top stage (191mm x 126mm) with 100mm x 100mm X-Y movement and coaxial controls.
MA910/05: Substage condenser with iris diaphragm, dovetail mount.
Consumables (Factory Installed): MA326 (6V 30W Halogen Bulb), MA327 (3A Fuse), LED/SP-1 (3W LED, 5500K), MA929 (0.5A Fuse).
Power Cords: Includes both 115V and 220V standard AC electric cords (New & Old styles).
MA701/05: Dust cover for MT7000 Series.
Manual: MT8000 Meiji Techno Instruction Manual.

Optional Components & Accessories

Viewing Heads & Attachments

MA816: Trinocular head – Siedentopf type, 30° inclination.
MA957: Ergonomic tilting binocular head (Adjustable 10° to 50°).
MA959: Trinocular head – Erect image with sliding 0/100 beamsplitter.
MA958: Photo/video attachment with sliding 80/20 beamsplitter (for use with MA957).

Optional Eyepieces & Reticles

MA818 / MA819: SWH15X (F.N. 16.0) and SWH20X (F.N. 12.0) Widefield eyepieces.
MA859: SWH10X-F Focusing eyepiece with reticle mount.
Micrometers: Available in 25mm (for MA817/859) and 19mm (for MA818/819) diameters, including cross-line, 10mm/100 units, and grain sizing reticles.
MA292: Metal stage micrometer (1mm divided into 100 units).

Optional Objectives

MA874: Brightfield Plan Epi 100X, N.A. 0.90, W.D. 0.37mm.
LWD Plan Epi (Long Working Distance):
- MA920: 20X, N.A. 0.40, W.D. 11.0mm
- MA921: 50X, N.A. 0.55, W.D. 7.5mm

More Information

More Information
Brand	Meiji Techno
Recommended For	0
Trinocular Tube Focusable?	No
Parfocal	No
Focus Controls Graduated?	No
Stage Range Graduated?	No
Includes Eyepieces?	No
Includes Eyecups?	No
Included Objectives Parfocal Adjustable?	No
Reticles Available?	No
Case Included?	No
