Meiji Techno MT9200L LED Binocular Polarizing Microscope
SKU:
MT9200L
In stock
You pay: $6,790.00
Free Shipping,
30 Day Money Back Guarantee
- Versatile Investigative Tool: Designed for the analysis of isotropic and anisotropic materials in fields ranging from geology and forensics to crystallography and material science.
- High-Performance Optics: Features newly engineered, strain-free infinity-corrected objectives and redesigned polarizing condensers for unmatched image contrast and superior flat fields.
- Advanced Polarizing Components: Includes an intermediate tube with a built-in analyzer, a compensator slot, and a rotatable polarizer with a full-wave plate for precise mineral and crystal identification.
- Ergonomic & Modular Design: Engineered with stress-free control placement and a choice between 30W Koehler Halogen or LED illumination to maximize laboratory productivity and efficiency.

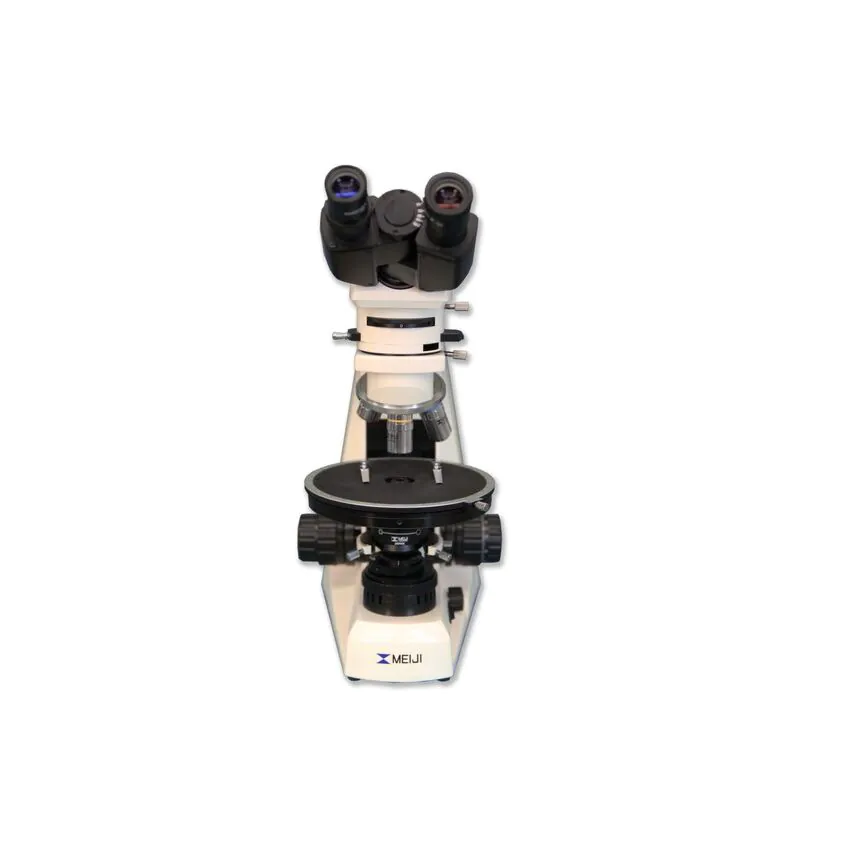

MT9200L Binocular Polarizing Microscope
The MT9200L is a professional-grade investigative tool designed for the analysis of isotropic and anisotropic materials. Featuring the improved ICOS Optical System and strain-free infinity-corrected objectives, this instrument is ideal for geology, petrology, forensics, and industrial quality assurance.
Key Features & Components
- Optical System
- Siedentopf-type binocular head (MA952) inclined at 30° with reticle angle compensation. Includes a quadruple ball-bearing nosepiece for smooth objective changes.
- Objectives (Strain-Free Plan)
-
- 4X/N.A.0.10 (W.D. 25.89mm)
- 10X/N.A.0.25 (W.D. 7.3mm)
- 40XS/N.A.0.65 (W.D. 0.72mm)
- Stage & Movement
- 175mm diameter ceramic-coated circular rotating stage, graduated 360° with vernier reading to 0.1°. Features coaxial coarse and fine focusing with 2-micron precision.
- Illumination & Polarizing
- 3W LED Transmitted Koehler illuminator (5500K). Includes a rotatable polarizer, analyzer in sliding mount, Bertrand lens, 1/4 wave plate, and first-order red compensating plate.
Includes:
- MT9200L Microscope Body & MA952 Binocular Head
- KHW10X Focusing Eyepiece with Cross-line & KHW-10X Standard Eyepiece
- Strain-free Abbe Condenser (N.A. 1.25)
- Stainless Steel Stage Clips (Pair)
- MA469/05 1/4 Wave-length Plate & MA470/05 First Order Red Plate
- Blue Clear Filter (29.8mm)
- Interference Color Chart & Dust Cover
- Meiji Techno Instruction Manual & Limited Lifetime Warranty Card
Product Specifications
| Manufacturing | 100% Made in Japan |
| Weight | 33 lbs (9.06 kg) |
| Box Size | 16 x 14 x 21 inches |
| Footprint | 263mm (D) x 176mm (W) |
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
