Meiji Techno MT9550 Ergonomic Trinocular Gout Testing Microscope
SKU:
MT9550
In stock
You pay: $6,910.00
Free Shipping,
30 Day Money Back Guarantee
- Precision Gout Identification: Specifically designed for the accurate detection and identification of crystals in body fluids using specialized polarized light.
- Advanced ICOS Optics: Features Meiji Techno’s Infinity Corrected Optical System for exceptionally bright, crisp images with superior color rendition and flat fields of view.
- Ergonomic Modular Design: Engineered for stress-free operation with controls placed for maximum lab efficiency and productivity during long research or clinical sessions.
- Integrated Polarization System: Equipped with a rotatable polarizer, full wave plate, and a built-in analyzer to provide high-contrast visualization of birefringent crystals.
- Powerful Koehler Illumination: Includes a 6V 30W Halogen illuminator with strain-free condensers and objectives to ensure uniform, high-quality light distribution.

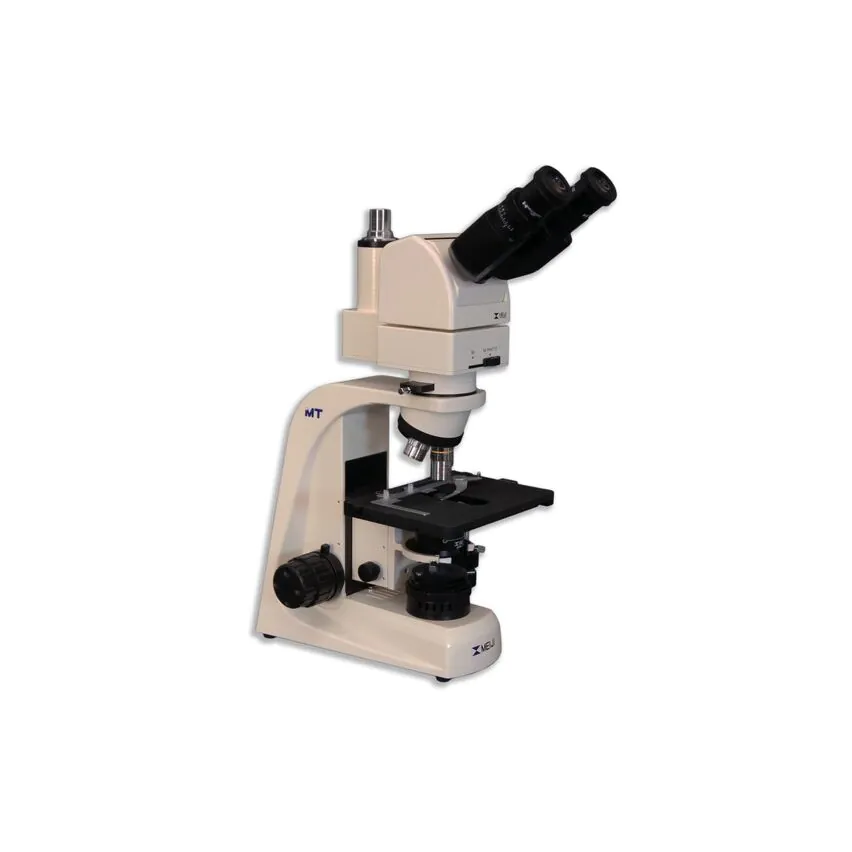

MT9550 Ergonomic Trinocular Gout Testing Microscope
Specifically designed for the precise identification of crystals in body fluids, featuring strain-free optics and a 100% Japanese-manufactured construction.
Package Contents (Includes)
- Microscope Body: MT9550 Gout Testing Microscope with 6V 30W Koehler Halogen illumination and infinity corrected optics.
- Ergonomic Head: MA957 Tilting Binocular head (10° to 50° adjustment) with Siedentopf interpupillary adjustment.
- Photo Attachment: MA958 Trinocular attachment with 80/20 beam-splitter for simultaneous digital imaging.
- Eyepieces: Paired MA817 SWH10X Widefield (Field No. 22) with MA906 rubber eyeshields.
- Strain-Free Objectives:
- 4X/N.A.0.10 (MA935)
- 10X/N.A.0.25 (MA936)
- 40XS/N.A.0.65 (MA938)
- Stage: MA918R Ceramic coated flat-top stage (190mm x 140mm) with ergonomic drop-down coaxial controls.
- Specialized Components: MA954 Strain-free Abbe condenser, MA1043 intermediate tube with analyzer, and MA1044 rotatable polarizer.
- Maintenance & Warranty: MA711 Dust cover, Instruction Manual, and Limited Lifetime Warranty.
Technical Table
| Model | Head Type | Eyepieces | Objectives | Stage | Illumination |
|---|---|---|---|---|---|
| MT9520 | Binocular | SWH10x FN22 | Strain Free S.Plan 4x, 10x, 40xS | Fixed flat-top | 6V 30W Halogen Koehler |
| MT9530 | Trinocular | SWH10x FN22 | Strain Free S.Plan 4x, 10x, 40xS | Fixed flat-top | 6V 30W Halogen Koehler |
| MT9540 | Ergonomic Tilting | SWH10x FN22 | Strain Free S.Plan 4x, 10x, 40xS | Fixed flat-top | 6V 30W Halogen Koehler |
Shipping & Dimensions
Weight: 29 lbs (13.1 kg)
Box Size: 16 x 14 x 21 inches
Trinocular Ergonomic Dimensions: 390mm(D) x 533mm(H) x 210mm(W)
100% Made in Japan | Limited Lifetime Warranty included.
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
