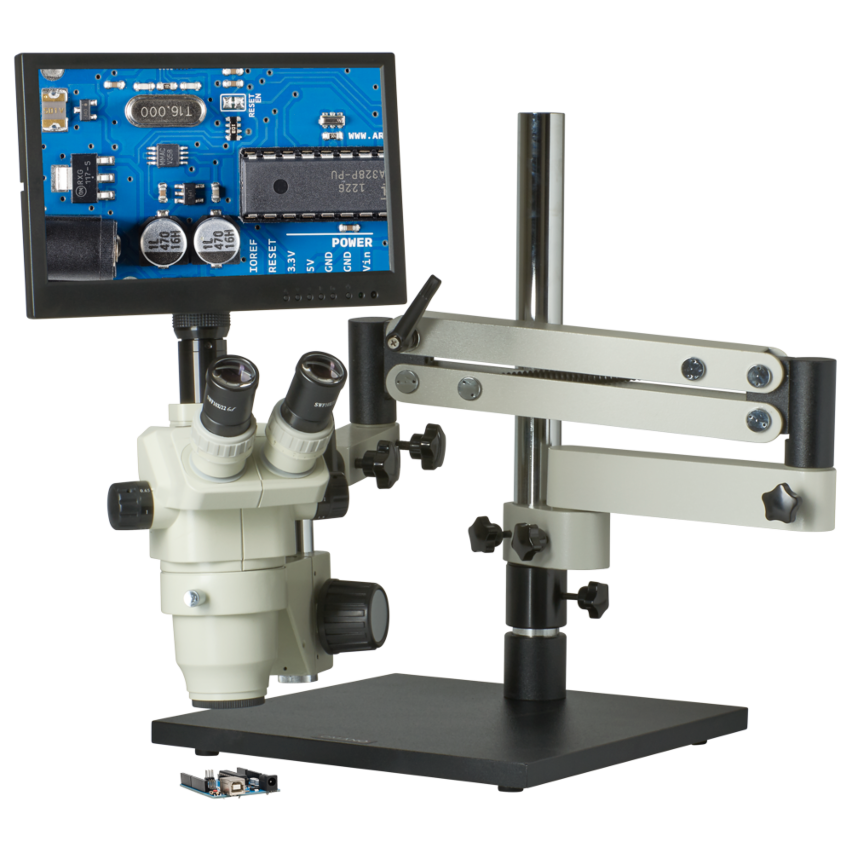

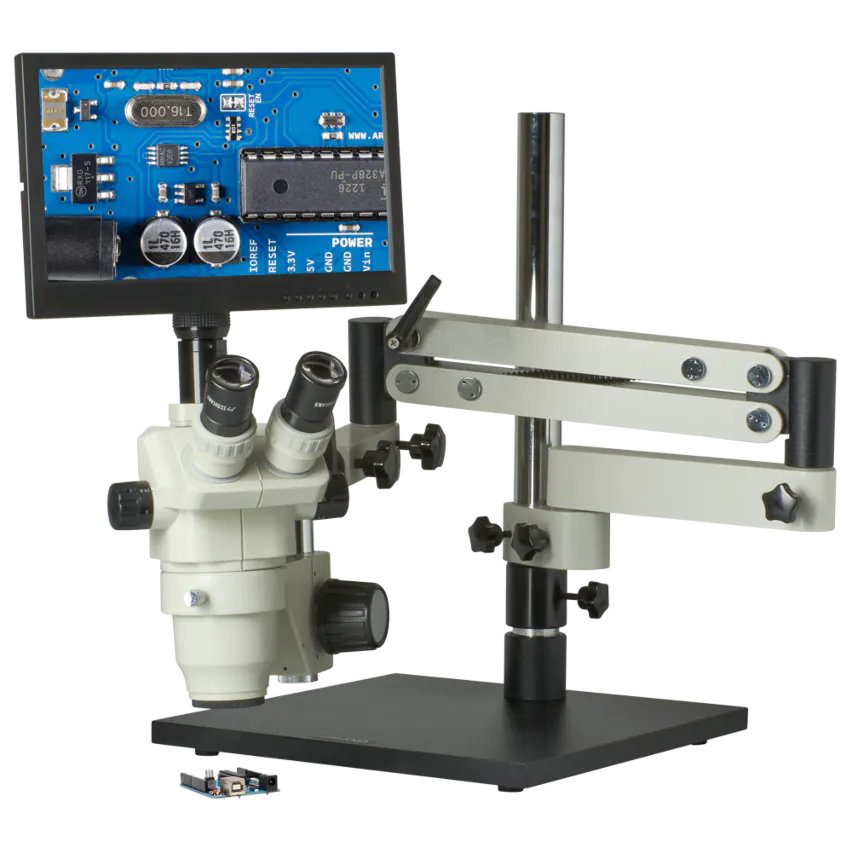

Omano CX3-OM99-V7 6.5X-45X Zoom Stereo Microscope Inspection System

$ 1970.00

List Price: $3,368.00

Starting at: $1,970.00

SKU: CX3-OM99-V7

Availability: In stock

  • UPGRADED Larger 11.6-inch TFT-LCD color display
  • Monitor Resolution 2.0MP (1920 X 1080)
  • LVDS & SD card output
  • Fast Frame Rate of 60 FPS @ 1280 x 800 resolution
  • Sharp CMOS sensor with 2.0MP image capture
  • Remote with control functions
  • Superb, top-of-the-range-optics
  • 6.5x-45x zoom stereo microscope head
  • Premium articulating V7 boom stand
  • Included ring illuminator
  • Included C-Mount Adapter

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

CX-3 1080p LVDS Microscope Camera with 11.6" Display   $799.00
OMHB30 Hanging Bar   $25.00
  • $85.00
  • $85.00
  • $85.00
  • $85.00
C-Mount Adapter 0.5X for Omano OM99-T   $109.00
  • $120.00
  • $120.00
  • $120.00

Included in Bundle

LVDS Camera: CX-3 1080p LVDS Microscope Camera with 11.6" Display

Hanging Bar: OMHB30 Hanging Bar

C-Mount Adapter: C-Mount Adapter 0.5X for Omano OM99-T

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • CX3-OM99-V7 Digital Inspection Microscope
  • CX3-OM99-V7 Digital Inspection Microscope 1
  • CX3-OM99-V7 Digital Inspection Microscope 4
  • CX3-OM99-V7 Digital Inspection Microscope SLOT
  • CX3-OM99-V7 Digital Inspection Microscope 5
Description

Summary

This high quality combination includes OptixCam's high resolution 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and V7 articulating boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.

Camera

An upgrade to the old CX-2 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and user interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter.

Features

The CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.

LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.

Camera Accessories

AC Power adapter, Remote Control Keypad, Remote Image Capture Controller.

Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.

Microscope

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm.

NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.

Focus & Illumination

Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.

Stand

The Omano V7 articulating boom is available with either a base plate or U-clamp attachment. The former weighs a rock solid 57lbs and the U-clamp stand 25lbs. The stand folds in on itself to store into a convenient 13" x 13" space and has the flexibility of being used 'as is' or in a shorter configuration without the 9" center arm.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM99T Zoom Trinocular Stereo Head with Focus Block (Recommended for Cameras)

    OM99TD Zoom Detent Trinocular Stereo Head with Focus Block (Recommended for Cameras)
    General
    Brand OmanoOmano
    SKU OM99-TOM99-TD
    Backorder ETA  Sep 30, 2015
    Magnification Chart Omano OM99 Magnification ChartOmano OM99 Magnification Chart
    Staff Pick Yes
    Head
    Head Type TrinocularTrinocular
    Optical Design Greenough ConvergedGreenough Converged
    Magnification Type ZoomZoom
    Ocular Angle 45°45°
    Ocular Tube Diameter 30 mm30 mm
    Barlow Mount Diameter 47 mm47 mm
    Diopter Adjustment DualDual
    Interpupillary Adjustment Linear SlidingLinear Sliding
    Interpupillary Adjustment Range 55-75 mm55-75 mm
    Trinocular Type Prism SwitchingPrism Switching
    Trinocular Standard 23mm DIN23mm DIN
    Trinocular Tube Focusable? YesYes
    Head Rotation 360 Degrees360 Degrees
    Minimum Objective (X) 0.650.65
    Maximum Objective (X) 4.54.5
    Zoom Ratio 6.9:16.9:1
    Zoom Control Type Smooth ContinuousDetent Click-Stops
    Zoom Indicator Graduations YesYes
    Parfocal YesYes
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 6.5X6.5X
    Max Standard Mag 45X45X
    Eyecups Style Soft RubberSoft Rubber
    Body
    Body Material CompositeComposite
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount
    Available Imaging Mounts 0.5X C-Mount0.5X C-Mount
    Head Ring Mount Diameter 76 mm76 mm
    Max Working Distance (standard) 103 mm103 mm
    WD with 0.5x Barlow 200 mm200 mm
    WD with 0.75x Barlow 117117
    WD with 2.0x Barlow 4040

  • CX-3 1080p LVDS Microscope Camera with 11.6" Display
    General
    Brand OptixCam
    SKU OCS-CX3-HDMI-116
    Warranty 1 Year
    Product Weight 2.7
    Product Length 10
    Product Width 7
    Product Height 4
    Product Display
    New Yes
    Sensor
    Sensor Type CMOS
    Sensor Size 1/3 Inch
    Sensor Details CMOS
    Color/Monochrome Color
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    FPS @ Max Res 60fps @ 1280 X 800
    Camera Interface LCD Display, SD Card, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats BMP, JPEG, PNG, TIFF
    Exposure Control Automatic, Manual
    Supported Operating Systems N/A
    System Requirements N/A
    Certifications CE
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount

  • V7 Articulating Boom Stand

    V7U U-Clamp Articulating Boom Stand
    General
    Brand OmanoOmano
    SKU V7V7U
    Warranty Lifetime Limited WarrantyLifetime Limited Warranty
    Stand
    Stand Class BoomBoom
    Stand Type Articulated BoomArticulated Boom
    Stand Features ArticulatedArticulated
    Base Width 330 mm330 mm
    Base Depth 330 mm330 mm
    Post Height 464 mm464 mm
    Post Diameter 38 mm38 mm
    View Center to Post Distance 673 mm673 mm
    Physical Construction Solid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? YesYes
    Hanging Bar Style ArticulableArticulable
    If FB Mounts Direct
    Focus Block Mount Diameter 5/8in Pin5/8in Pin

  • OMHB30 Hanging Bar
    General
    Brand Omano
    SKU OMHB30
    Feed - Title Omano OMHB30 Hanging Bar
    Feed - Description Omano OMHB30 Hanging Bar
    Feed - Custom Label 1 <100
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 30 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    General
    Brand Omano  Omano
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP6W
    Warranty 1 year  1 year
    Product Weight 1lb  4.0 lbs
    Product Length  31.0 cm
    Product Width  29.0 cm
    Product Height  17.5 cm
    Feed - Title Omano 80 LED Ring Light, Variable Intensity64 LED Ring Light, Variable Intensity by Section144 LED Ring Light, Variable Intensity by SectionOmano OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    Feed - Description The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new Optixcam OCS-SK2-HDMI-7 high-definition CMOS color microscopy camera is a professionally-designed, stand-alone imaging solution offering sharp, 1280 x 720 resolution images or video @ 30Fps in a cost-effective package. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and technical training classrooms.FeaturesHDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-SK2-HDMI-7 offers this technology in an affordable and versatile package for the PCB auditor, industrial inspection line or clinical teaching laboratory. Mounting & ControlsThe SK2-HDMI-7 is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and a useful tripod screw attachment point. Improved functionality includes on-camera controls with intuitive, menu-driven buttons for cursor control, image save (to optional SD card), video freeze and Auto White Balance on/off. The cursor button will toggle between 5 different patterns including parallel vertical, horizontal, grid and cross-hair pointer. The camera features a standard C-mount which will accept any standard c-mount adapter. The optional 0.37X reducing adapters shown above will mate with any 23mm smooth bore microscope eyeport or trinocular tube. Processing & OutputThe camera has fast white balance correction for excellent color reproduction and an output resolution of 1280 x 720 in format. With 30 FPS live response rate, the OCS-SK2-HDMI-7 quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor. An SD card memory slot offers additional storage capacity (SD card not included)..MicroscopeThe Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope includes a 0.5x Barlow lens which enables maximum working distance of 6.75". An 80 LED ring light is included. Optional illumination upgrades include dual pipe LED or 64 and 144 LED ring illumination systems.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included.Camera AccessoriesAccessories include power supply, remote control, HDMI cable. Microscope AccessoriesIncluded 80 LED fluorescent ring light. Please note: Monitor not included.
    Feed - Custom Label 1 <100<100100-500100-500
    Illumination Type LEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching3W x 2
    Ring Light Power 8W  6W
    Ring Light Control VariableVariableVariableVariable

  • 0.5X Barlow Lens For Omano OM99/XTL, WD=163mm

    0.75X Barlow Lens For Omano OM99/XTL, WD=117mm

    1.0X Protective Barlow For Omano OM99/XTL

    2.0X Barlow Lens For Omano OM99/XTL, WD=40mm
    General
    Brand OmanoOmanoOmanoOmano
    SKU OMBL-99-05XOMBL-99-075XOMBL-99-10XOMBL-99-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.5X0.75X1.0X2.0X

  • C-Mount Adapter 0.5X for Omano OM99-T
    General
    Brand Omano
    SKU OMCM-99-05X
    Warranty Omano Limited Lifetime Warranty
    Notes Does not fit Binocular
    Feed - Title Omano C-Mount Adapter 0.5X for OM99-T
    Feed - Description The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.
    Feed - Custom Label 1 100-500
    Compatible With OM99T

  • 15X Eyepiece For OM99 (Single)

    20X Eyepiece For OM99, OM139 (Single)

    25X Eyepiece For OM99 (Single)
    General
    Brand OmanoOmanoOmano
    SKU OMEP-99-15XOMEP-99-20XOMEP-99-25X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Priced per EyepiecePriced per PairPriced per Pair
    Feed - Title Omano 15X Eyepiece For OM99 (Single)Omano 20X Eyepiece For OM99, OM139 (Single)Omano 25X Eyepiece For OM99 (Single)
    Feed - Description This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.
    Feed - Custom Label 1 <100<100<100
    Compatibility
    Compatible With OM99, OM99TOM99, OM99T, OM139, OM139TOM99, OM99T
    Eyepiece Magnification 15x20x25x
Magnification Chart

Eyepiece

Standard Configuration

Omano OM99

Auxiliary Barlow Lens

0.4X

0.5X

0.75X

2.0X

Working distance 100mm

Working distance 298mm

Working distance 163mm

Working distance 117mm

Working distance 40mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X

6.5x-45x

33.8 - 4.9

2.6-18.0x

67.7-9.8

3.3x-22.5x

67.7-9.8

4.9x-33.8x

45.1-6.5

13x-90x 16.9-2.5

15X

9.8x-67.5x

24.6-3.5

3.9-27.0x

49.2-7.0

4.9x-33.8x

49.2-7.0

7.3x-50.6x

32.8-4.7

19.5x-135x  12.3-1.8

20X

13x-90x

20.0-2.9

5.2-36.0x

40.5-5.8

6.5x-45x

40.5-5.8

9.75x-67.5x

26.6-3.8

26x-180x 10.0-1.4

 25x

 16.3x-112.5x 18.5-2.6  6.5-45.0x 37.0-5.2  8.1x-56.3x

37.0-5.2 12.2x-84.4x 24.6-3.5

32.5x-225x  9.2-1.3
