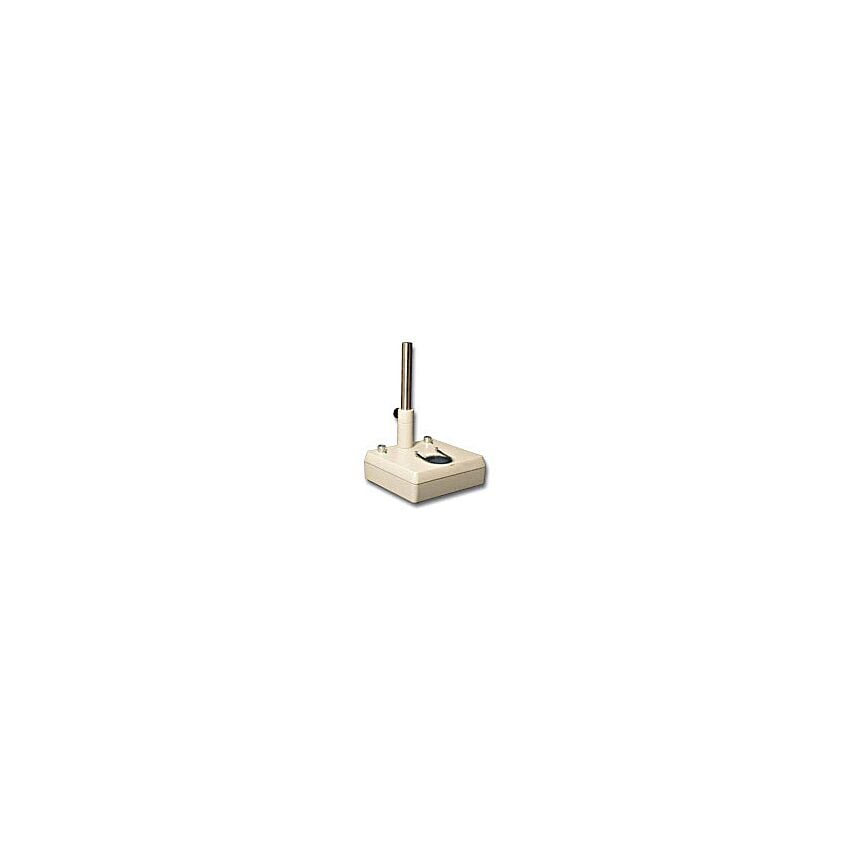

Meiji Techno RZT/100 Pole Stand with 6V 30W Transmitted Halogen

List Price: $1,050.00

Our Price: $1,010.00

$ 1010.00

SKU: RZT/100

Availability: In stock

  • Solid pole stand
  • Halogen 6V30W transmitted illumination
  • Anti-static finish coat
  • Built-in COX power supply
  • Lifetime Limited Warranty
Learn More
Add to cart

Add to Wishlist

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji RZT/100 Pole Stand

You May Also Like:

Description

The RZT/100 is a versatile pole stand which includes integral 6V 30W Halogen transmitted illumination with variable intensity control. A second power supply is wired into the
base for use with the optional COX illuminator. The vertical pole includes a safety collar, is 12.8 inches in height and accommodates the RZ series microscope system. The base dimensions are 11" x 10" x 1.4".

0 0
Specifications

RZT/100 Pole Stand with 6V 30W Transmitted Halogen
General
Brand Meiji Techno
SKU RZT/100
Short Description
  • Solid pole stand
  • Halogen 6V30W transmitted illumination
  • Anti-static finish coat
  • Built-in COX power supply
  • Lifetime Limited Warranty
Feed - Title Meiji Techno RZT/100 Pole Stand
Feed - Description The RZB-P combines Meiji's CMO type zoom stereo body with binocular head and plain or LED stand for a research stereo microscope of exacting quality. Choose eyepieces and an objective to suit your application.RZ-B Microscope BodyThe RZ-B is the central component of any RZ system. The zoom optics have a 10:1 zoom ratio and a base zoom magnification of 7.5x to 75x with a 1.0x main objective. Depending on your selection of eyepieces and objectives, this translates into an total magnification range of 3.75x to 300x. The zoom controls indicate magnification at 12 positive click-stops throughout the zoom range, making photograph framing and measuring easily repeatable and consistent. Dual-iris diaphragms offer excellent control over resolution, contrast, and depth of field. The zoom optics are housed in a rugged aluminum alloy body for increased stability and durability, and all components are coated with an anti-static finish to protect sensitive specimens. Choose from one of five plan achromat objective lenses: 0.5x, 0.75x, 1.0x, 1.5x or 2.0x.Viewing HeadThere are two types of viewing head. MA748 standard binocular head is inclined 45
Feed - Custom Label 1 500-1000
Stand
Stand Class Pedestal
Stand Type Pole
Stage Plate Black/White Contrast Plate
Post Diameter 20 mm
If FB Mounts Direct
Focus Block Mount Diameter 20 mm
If FB Integrated
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Head Ring Mount Diameter 84 mm
Product Manuals
  • Meiji RZ Series Stereo Microscope Manual: Download PDF [2.4M]
