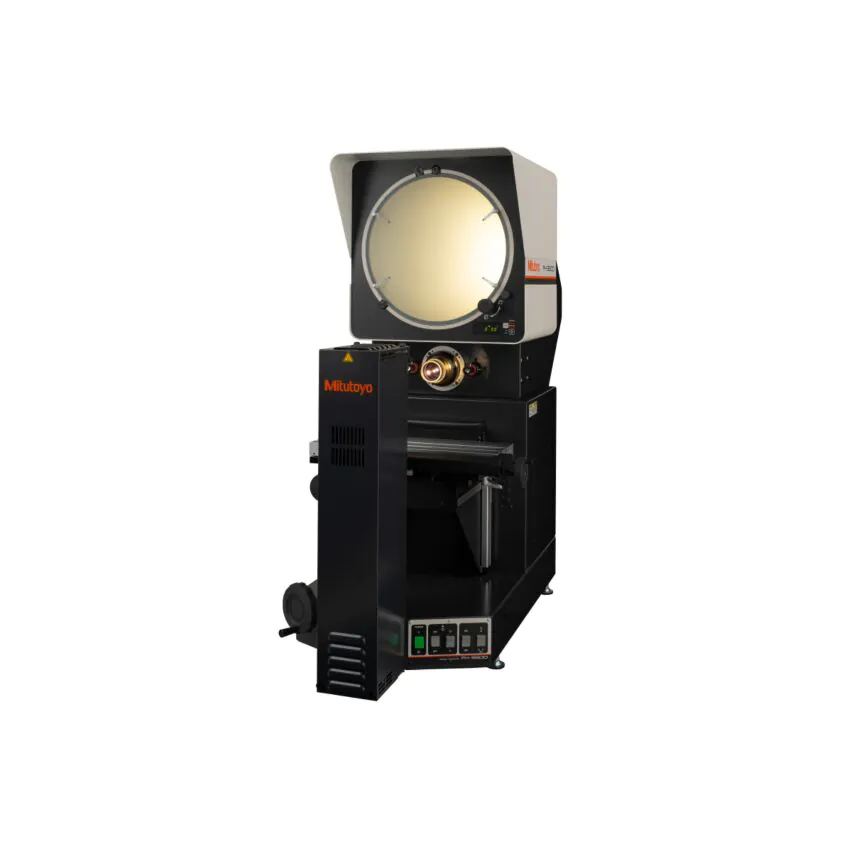

The Mitutoyo PH-3515F profile projector produces bright crisp images on its 14-inch digital protractor screen for easier, more accurate inspections. Linear glass scales and a vertical beam, telecentric optical system on the PH-3515F makes for fast, accurate measurements.
• Floating work stage provides moves with precision for better accuracy and can handle workloads up to 100 lbs.

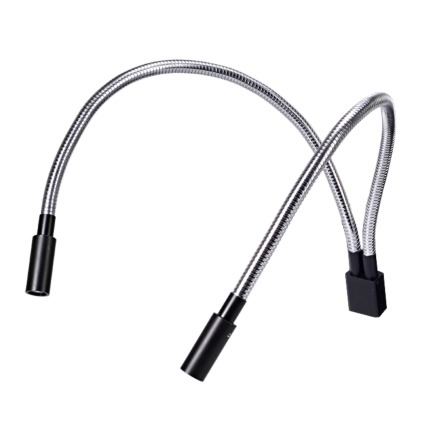

• Fiber optic cables provide surface illumination for better, more natural workpiece visibility
• Generous 10” x 6” x- and y-axis work stage travel delivers generous range to cover many application needs
• Digital protractor displays in absolute or incremental units for angle measurements
• Image displays erect on the high brightness screen
• Screen rotates 360° for infinite viewing options
• 2D measurement processing is available through the use of the QM data or M2 software
• Variety of workpiece fixtures available to accommodate different parts
Specifications of Component Options
-
Mitutoyo PH-3515F Series Optical Comparator Horizontal Profile Projector
Mitutoyo PH-3515F Series Optical Comparator Horizontal Profile Projector- KA Counter and Tray
Mitutoyo PH-3515F Series Optical Comparator Horizontal Profile Projector- M2 Add On & Touchscreen PC Included
Mitutoyo PH-3515F Series Optical Comparator Horizontal Profile Projector- M2 Add-On, Touchscreen PC & Automatic Edge Detection Included
Mitutoyo PH-3515F Series Optical Comparator Horizontal Profile Projector- QM-DATA-200 Arm Type Included Product Details Brand Mitutoyo Mitutoyo Mitutoyo Mitutoyo Mitutoyo
